Weatherking WA14AY36AJ1NA R454B Condenser 3 Ton

Product Description

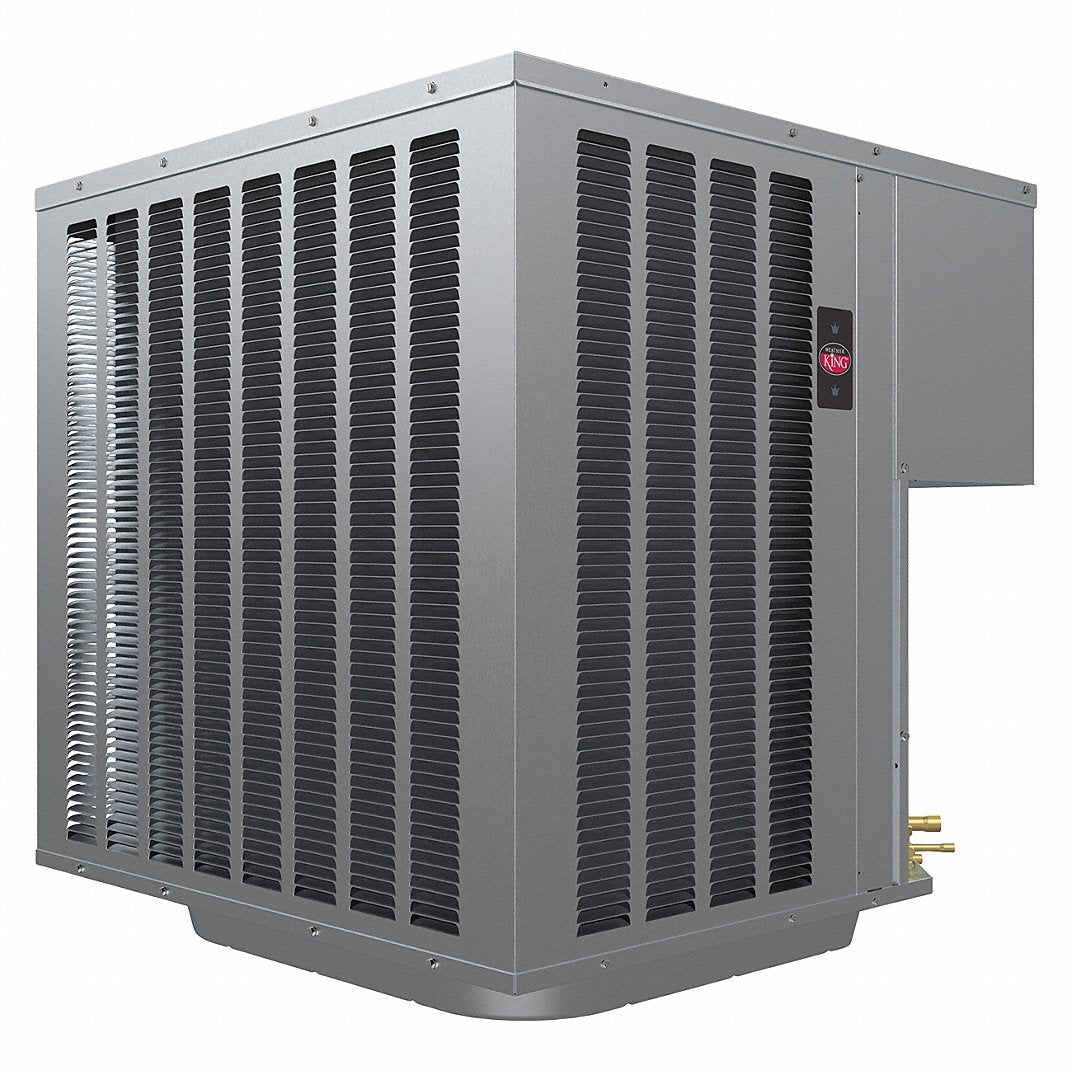

The WeatherKing WA14AY36AJ1NA R454B condenser features a fully louvered steel cabinet and an optimized 7mm coil design. It has an easily accessible control box and a refrigerant detection system. Designed for sustainability with low GWP, this condenser operates at 208-230/1/60 voltage and has a capacity of 36,000 BTU/HR.

• Features a fully louvered steel cabinet for protection against weather and yard hazards.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Integrated refrigerant detection system with A2L sensor and mitigation board simplifies wiring.

Product Highlights

Durable WeatherKing condenser with steel cabinet, optimized coil, and refrigerant detection for efficient and sustainable operation.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA14AY36AJ1NA
• Country of Origin: USA

Technical Specifications

• Application: Condenser SEER2 14+
• Tonnage: 3
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Refrigerant Type: R454B
• Compressor Type: Scroll
• Maximum overcurrent protection (amps): 30
• Communication: Non-Communicating
• Capacity BTU/HR: 36,000
• STANDARD RATING (DBA): 71
• Liquid Line O.D. ��� in.: 3/8
• Suction Line O.D. ��� in.: 3/4
• Length (inches): 33.66
• Width (inches): 33.66
• Height (inches): 25.17
• CFM Rating: 2760 cfm
• Coil Rating: 2-Row
• Cooling Capacity: 33600 Btu/hr
• EER Rating: 11.7
• Face Area: 13.3 sq-ft
• Fins per Inch: 24 FPI
• Frequency Rating: 60 Hz
• Fuse Rating: 30 A
• Nominal Capacity: 3 ton
• Number of Stages: 1
• Rotational Speed: 825 rpm
• SEER Rating: 14.3
• Series: WA14AY
• Sound Level: 71 dB
• Wattage: 188 W
• Voltage Rating: 208-230 V
• Amperage Rating: 18 A
• BTU Rating: 36000 Btu/hr
• HP Rating: 1/6 hp
• Phase: 1 ph
• Material: Steel
• A2L Compatible: Yes
• BTU: 36000
• BTU Cooling Rating: 33600 Btu/h
• CFM: 1030
• Collection: Endeavor� Line
• Compressor Stages: Single Stage
• Decibel Rating (dB): 71 dB
• Depth: 33.66
• Height: 25.17
• Horsepower: 0.16666666666666666
• Liquid Line (OD): 3/8
• MBH: 36
• Power Source: Electric
• RPM: 825
• SEER2: 14.3
• SEER2 Range: 14.3 - 15.1
• Sound Blanket: No
• Suction Line (OD): 3/4
• UL Listed: Yes
• Volts: 208/230V
• Watts: 188
• Weight: 172
• Type: Condenser
• ABRPN: WA14AY36AJ1NA
• Brand: Weatherking
• Product Status: Nonstock
