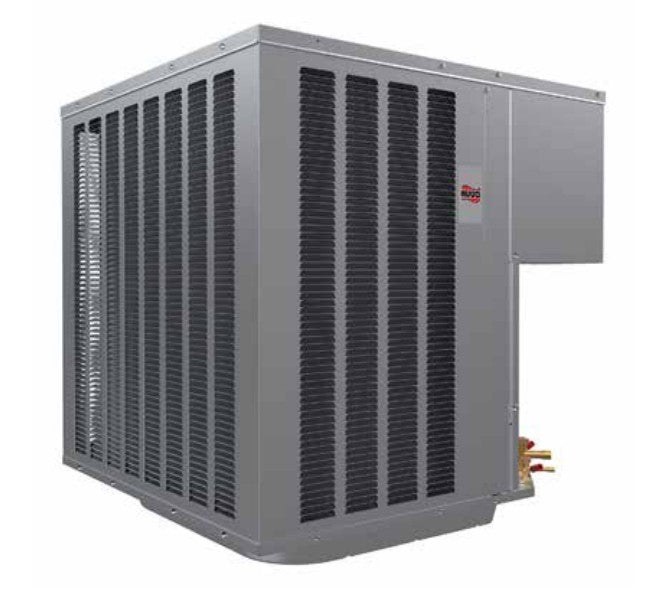

Weatherking WA14AY30AJ1NA Versus™ A2L Air Conditioner 30000 Btu/hr 2.5 Ton

Product Description

The WeatherKing WA14AY30AJ1NA Versus™ Air Conditioner features a 2.5 ton nominal capacity and a cooling capacity of 28600 Btu/hr. Operates at 208-230 V, 17 A, with a 1/6 hp motor. Designed with a scroll compressor and a 1-Row coil. The unit's steel construction ensures durability.

• Features a fully louvered steel cabinet for protection against yard hazards and weather corrosion.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Includes an easily accessible control box for ease of installation and serviceability.

Product Highlights

Durable steel construction, optimized coil design, and easy installation make this WeatherKing air conditioner a reliable choice.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA14AY30AJ1NA

Technical Specifications

• CFM Rating: 3146 cfm
• Coil Rating: 1-Row
• Compressor Type: Scroll
• Cooling Capacity: 28600 Btu/hr
• EER Rating: 11.7
• Face Area: 13.3 sq-ft
• Fins per Inch: 24 FPI
• Frequency Rating: 60 Hz
• Fuse Rating: 25 A
• Nominal Capacity: 2.5 ton
• Number of Stages: 1
• Rotational Speed: 825 rpm
• SEER Rating: 14.3
• Sound Level: 71 dB
• Wattage: 197 W
• Input Voltage: 208-230 V
• Amperage Rating: 17 A
• BTU Rating: 30000 Btu/hr
• HP Rating: 1/6 hp
• Phase: 1 ph
• Material: Steel
• Refrigerant Type: R-454B
• Application: Condenser SEER2 14+
• Tonnage: 2.5
• Maximum Overcurrent Protection: 25 A
• Communication: Non-Communicating
• Capacity BTU/HR: 30,000
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Length (inches): 33.66
• Width (inches): 33.66
• Height (inches): 25.17
• Type: Air Conditioner
• Refrigerant Furnished oz.: 73
• Number of Phases: 1
• Minimum Circuit Ampacity: 17 A
• Compressor - Rated Load Amps: 13 A
• Compressor - Locked Rotor Amps: 78 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.5 A
• Net Face Area - Outer Coil: 13.3 ft²
• Tube Diameter: 0.276 in
• Outdoor Fan Diameter: 24 in
• Number of Blades: 3
• CFM: 3146 ft³/min
• RPM: 825
• Total Capacity: 28600 Btu/h
• Net Sensible Capacity: 21800 Btu/h
• Net Latent Capacity: 6800 Btu/h
• SEER2: 14.3
• EER2: 11.7
• Indoor CFM: 910 ft³/min
