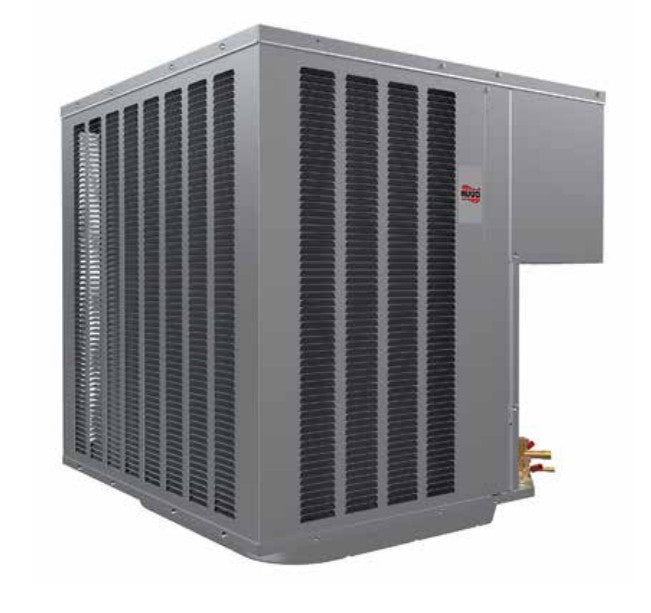

Weatherking WA14AY18AJ1NA Versus™ A2L Air Conditioner 18000 Btu/hr 1.5 Ton

Product Description

The WeatherKing WA14AY18AJ1NA Versus™ Air Conditioner features a 1.5 ton nominal capacity and a cooling capacity of 17100 Btu/hr. Operates at 208-230 V, 12 A, with a 1/7 hp motor. Constructed from steel, it includes a scroll compressor and offers 1765 cfm airflow. The unit has a 11.7 EER rating and 14.3 SEER rating, utilizing R-454B refrigerant.

• Durable steel construction for protection against yard hazards and weather corrosion.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Integrated one-box, patented design featuring the A2L sensor and mitigation board.

Product Highlights

Durable WeatherKing air conditioner with efficient cooling and robust design, ensuring reliable performance and easy serviceability.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA14AY18AJ1NA
• Country of Origin: USA

Technical Specifications

• CFM Rating: 1765 cfm
• Compressor Type: Scroll
• Cooling Capacity: 17100 Btu/hr
• EER Rating: 11.7
• Fins per Inch: 24 FPI
• Frequency Rating: 60 Hz
• Fuse Rating: 15 A
• Nominal Capacity: 1.5 ton
• Number of Stages: 1
• Rotational Speed: 1075 rpm
• SEER Rating: 14.3
• Series: Choice® Series
• Sound Level: 70 dB
• Voltage Rating: 208-230 V
• Amperage Rating: 12 A
• BTU Rating: 18000 Btu/hr
• Horsepower: 1/7 hp
• Phase: 1 ph
• Material: Steel
• Refrigerant Type: R-454B
• Type: Condenser
• ABRPN: WA14AY18AJ1NA
• Brand: Weatherking
• SEER2: 14.3
• Decibel Rating (dB): 70 dB
• Liquid Line (OD): 3/8 in
• Suction Line (OD): 3/4 in
• Volts: 208/230V
• Application: Condenser SEER2 14+
• Tonnage: 1.5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Maximum overcurrent protection (amps): 15
• Communication: Non-Communicating
• Capacity BTU/HR: 18,000
• Standard Rating (DBA): 70
• Nominal Capacity kW: 5.28 kW
• Nominal Capacity TR: 1.5 TR
• Refrigerant Furnished oz.: 64
• Minimum Circuit Ampacity: 12 A
• Compressor - Rated Load Amps: 8 A
• Compressor - Locked Rotor Amps: 47 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.5 A
• Net Face Area - Outer Coil: 10.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Outdoor Fan Diameter: 20 in
• Number of Blades: 2
• Total Capacity: 17100 Btu/h
• Total Capacity kW: 5.0 kW
• Net Sensible Capacity: 13100 Btu/h
• Net Sensible Capacity kW: 3.8 kW
• Net Latent Capacity: 4000 Btu/h
• Net Latent Capacity kW: 1.2 kW
• EER2: 11.7
• Indoor CFM: 600 ft³/min
• Indoor CFM L/s: 283.2 L/s
