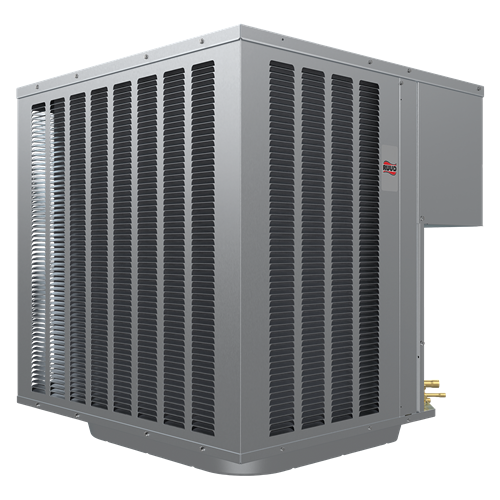

Weatherking WA13NY60AJ1NA Endeavor� Line Select�� Series AC 5 Ton

Product Description

The WeatherKing WA13NY60AJ1NA Endeavor� Line Select�� Series AC is a 5 ton, single-stage air conditioner with a cooling efficiency of 13.4 SEER2 and 9 EER2. It features an integrated, patented Refrigerant Detection System�� for system protection and homeowner peace of mind. The unit operates on R-454B refrigerant and has a sound level as low as 68 dB.

• Expanded Valve Space: Provides a minimum working area of 27-sqaure inches
• Refrigerant Detection System��: Integrated, patented design providing system protection and homeowner peace-of-mind with low GWP refrigerant monitoring
• Fully Louvered Steel Cabinet: Features durable construction to add protection from yard hazards, weather corrosion

Product Highlights

This WeatherKing AC unit offers efficient cooling and reliable performance with its durable construction and advanced refrigerant detection system.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA13NY60AJ1NA

Technical Specifications

• Nominal Capacity: 60000 Btu/h
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 176
• Compressor Type: Scroll
• Sound Level: 76 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 50 A
• Minimum Circuit Ampacity: 31 A
• Compressor - Rated Load Amps: 23.7 A
• Compressor - Locked Rotor Amps: 157 A
• Condenser Fan Motor - Full Load Amps: 1.00 A
• Condenser Fan Motor - Locked Rotor Amps: 2.40 A
• Net Face Area - Outer Coil: 28.4 ft�_
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Fins per Inch: 22
• Outdoor Fan Diameter: 26 in
• Number of Blades: 3
• Motor HP: 1/5 hp
• CFM: 4189 ft�_/min
• RPM: 850
• Watts: 204 W
• Total Capacity: 54000 Btu/h
• Net Sensible Capacity: 41400 Btu/h
• Net Latent Capacity: 12600 Btu/h
• SEER2: 13.4
• EER2: 9.0
• Indoor CFM: 1600 ft�_/min
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• Type: Condenser
• ABRPN: WA13NY60AJ1NA
• Series: WA13NY
• Brand: Weatherking
• Refrigerant: R454B
• BTU Cooling Rating: 54000 Btu/h
• Collection: Endeavor� Line
• Communicating: Non-Communicating
• Compressor Stages: Single Stage
• Decibel Rating (dB): 76 dB
• Horsepower: 1/5 hp
• Liquid Line (OD): 3/8
• MBH: 60
• Phase: Single Phase
• Power Source: Electric
• Suction Line (OD): 7/8
• Tonnage: 5 Ton
• UL Listed: Yes
• Volts: 208/230V
• A2L Compatible: Yes
• kW: 3.7 kW
• TR: 5 TR
