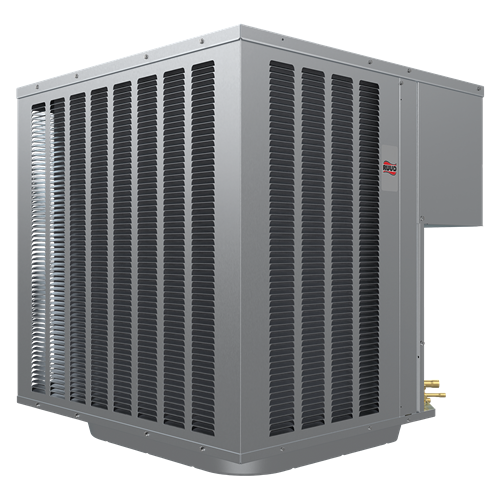

Weatherking WA13NY36AJ1NA Endeavor® Line Select™ Series AC 3 Ton

Product Description

The WeatherKing WA13NY36AJ1NA is an Endeavor® Line Select™ Series 3 ton single-stage iC air conditioner with 208/230/1/60 voltage. This unit features an expanded valve space, providing a minimum working area of 27-square inches. The integrated Refrigerant Detection System™ offers system protection and homeowner peace of mind with low GWP refrigerant monitoring.

• Expanded Valve Space: Provides a minimum working area of 27-sqaure inches
• Refrigerant Detection System™: Integrated, patented design providing system protection and homeowner peace-of-mind with low GWP refrigerant monitoring
• Fully Louvered Steel Cabinet: Features durable construction to add protection from yard hazards, weather corrosion

Product Highlights

Durable WeatherKing 3 ton AC unit with single-stage compressor, louvered steel cabinet, and refrigerant detection system.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA13NY36AJ1NA

Technical Specifications

• Nominal Capacity: 36000 Btu/h
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 108
• Compressor Type: Scroll
• Sound Level: 71 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 35 A
• Minimum Circuit Ampacity: 22 A
• Compressor - Rated Load Amps: 16.7 A
• Compressor - Locked Rotor Amps: 94 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.5 A
• Net Face Area - Outer Coil: 13.3 ft²
• Net Face Area - Inner Coil: 12.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 24
• Outdoor Fan Diameter: 24 in
• Number of Blades: 3
• Motor HP: 1/6 hp
• CFM: 2760 ft³/min
• RPM: 825
• Watts: 188 W
• Total Capacity: 34200 Btu/h
• Net Sensible Capacity: 26200 Btu/h
• Net Latent Capacity: 8000 Btu/h
• SEER2: 13.4
• EER2: 9.0
• Indoor CFM: 1050 ft³/min
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• Collection: Endeavor® Line
• Communicating: Non-Communicating
• Compressor Stages: Single Stage
• Sound Blanket: No
• UL Listed: Yes
• Tonnage: 3 Ton
