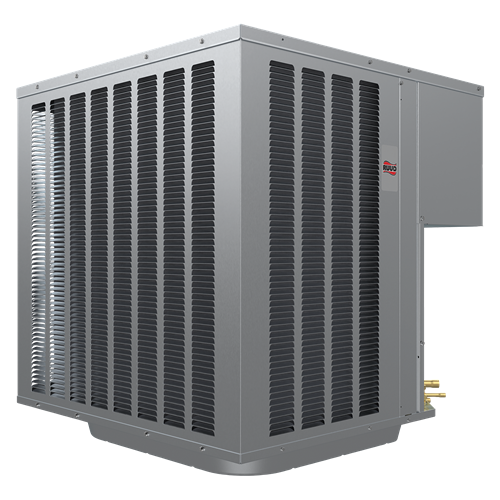

Weatherking WA13NY30AJ1NA 2.5 Ton 13SEER2 Condenser - 3/8l 3/4s - A2L - 208/230/1 - R454B

Product Description

The WeatherKing WA13NY30AJ1NA is a 2.5-ton condenser with a 13 SEER2 rating, designed for use with R454B refrigerant. It features an optimized 7mm coil design and a fully louvered steel cabinet. The unit operates on 208/230/1/60 voltage and includes a refrigerant detection system.

• Features a fully louvered steel cabinet for protection against yard hazards and weather corrosion.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Includes an easily accessible control box for ease of installation and service.

Product Highlights

This condenser is designed for sustainability with low GWP and features an integrated refrigerant detection system.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA13NY30AJ1NA

Technical Specifications

• SKU: 116018
• Default UOM: ea
• Product Type: Simple product
• Pack Size: 1/ea
• UOM: ea
• Type: Condenser
• ABRPN: WA13NY30AJ1NA
• Series: WA13NY
• Brand: Weatherking
• Product Status: Stock
• Refrigerant: R454B
• Manufacturer SEER2: 13+
• Nominal Tonnage: 2.5
• Line Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Compressor Type: Scroll
• Maximum overcurrent protection (amps): 25
• Communication: Non-Communicating
• Capacity BTU/HR: 30,000
• Standard Rating (DBA): 71
• Liquid Line O.D. – in.: 3/8
• Suction Line O.D. – in.: 3/4
• Length (inches): 33.66
• Width (inches): 33.66
• Height (inches): 25.17
• Cooling Efficiency: 13.4 SEER2 / 9 EER2
• Condenser Coil Type: 7mm
• Nominal Capacity: 30000 Btu/h
• kW: 2.0 kW
• TR: 2.5 TR
• Refrigerant Furnished oz.: 73
• Sound Level: 71 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 17 A
• Compressor - Rated Load Amps: 12.7 A
• Compressor - Locked Rotor Amps: 76 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.5 A
• Net Face Area - Outer Coil: 13.3 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Fins per Inch: 24
• Outdoor Fan Diameter: 24 in
• Number of Blades: 3
• Motor HP: 1/6 hp
• CFM: 3146 ft³/min
• RPM: 825
• Watts: 197 W
• Total Capacity: 28600 Btu/h
• Net Sensible Capacity: 21900 Btu/h
• Net Latent Capacity: 6700 Btu/h
• SEER2: 13.4
• EER2: 9.0
• Indoor CFM: 910 ft³/min
• L/s: 429.5 L/s
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
