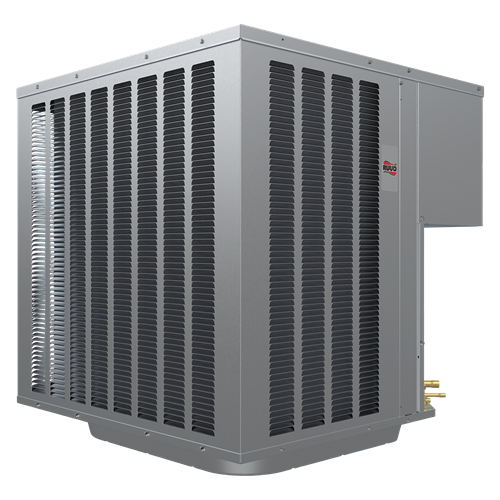

Weatherking WA13NY24AJ1NA R454B Condenser 24,000 BTU/HR

Product Description

The WeatherKing WA13NY24AJ1NA is an R454B condenser unit with a capacity of 24,000 BTU/HR. This 2 tonnage unit operates on 208-230/1/60 line voltage and features a scroll compressor. It has a standard rating of 70 dBA, a 3/8" liquid line, and a 3/4" suction line. This model is non-communicating.

• Features a fully louvered steel cabinet for protection from yard hazards and weather corrosion.
• Optimized 7mm coil design improves airflow, heat transfer, and energy consumption.
• Easily accessible control box allows for ease of installation and serviceability.

Product Highlights

This WeatherKing condenser is designed for sustainability with low GWP and includes a refrigerant detection system.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA13NY24AJ1NA

Technical Specifications

• Manufacturer SEER2: 13+
• Nominal Tonnage: 2
• Line Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Refrigerant Type: R454B
• Compressor Type: Scroll
• Maximum overcurrent protection (amps): 20
• Communication: Non-Communicating
• Capacity BTU/HR: 24,000
• Standard Rating (DBA): 70
• Liquid Line O.D. - in.: 3/8
• Suction Line O.D. - in.: 3/4
• Length (inches): 29.54
• Width (inches): 29.54
• Height (inches): 25.17
• Type: Condenser
• ABRPN: WA13NY24AJ1NA
• Series: WA13NY
• Brand: Weatherking
