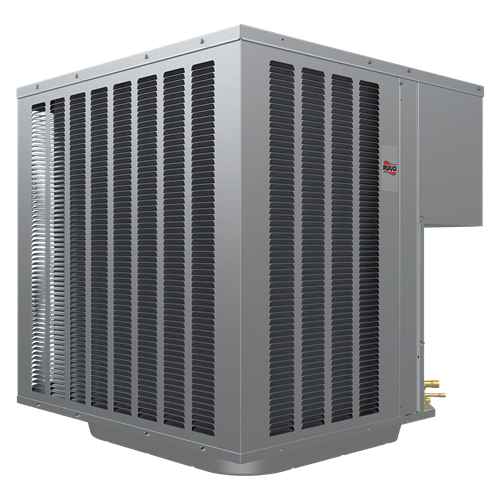

Weatherking WA13NY18AJ1NA 1.5Ton 13SEER2 Condenser - 3/8l 3/4s

Product Description

The WeatherKing WA13NY18AJ1NA is a 1.5Ton 13SEER2 condenser utilizing R-454B refrigerant. It features expanded valve space and an integrated refrigerant detection system for system protection. Designed for sustainability with low GWP refrigerant monitoring, this condenser offers a durable construction and easy accessibility for installation and service.

• Features expanded valve space for a minimum working area of 27-square inches
• Integrated Refrigerant Detection System provides system protection
• Durable construction with a fully louvered steel cabinet

Product Highlights

1.5 Ton condenser with 13.4 SEER2 efficiency and R-454B refrigerant, designed for efficient and reliable cooling.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: WA13NY18AJ1NA

Technical Specifications

• SKU: 116009
• Product Type: Simple product
• UOM: ea
• Type: Air Conditioner Outdoor Unit
• ABRPN: WA13NY18AJ1NA
• Series: WA13NY
• Brand: Weatherking
• Product Status: Stock
• Refrigerant: R-454B
• Nominal Capacity: 18000 Btu/h
• Compressor Type: Scroll
• Sound Level: 70 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 15 A
• Minimum Circuit Ampacity: 12 A
• Compressor - Rated Load Amps: 8 A
• Compressor - Locked Rotor Amps: 41.5 A
• Condenser Fan Motor - Full Load Amps: 0.80 A
• Condenser Fan Motor - Locked Rotor Amps: 1.5 A
• Net Face Area - Outer Coil: 10.9 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 1
• Fins per Inch: 24
• Outdoor Fan Diameter: 20 in
• Number of Blades: 2
• Motor HP: 1/7 hp
• CFM: 1765 ft³/min
• RPM: 1075
• Watts: 154 W
• Air Handler: TCFY2417STAN
• Total Capacity: 17100 Btu/h
• Net Sensible Capacity: 13100 Btu/h
• Net Latent Capacity: 4000 Btu/h
• SEER2: 13.4
• EER2: 9.0
• Indoor CFM: 600 ft³/min
• Depth: 29 8/15 in
• Width: 29 8/15 in
• Height: 25 1/6 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 3/4 in
• BTU/Hr: 18000
• Material: Louvered Steel
• Stages: 1-Stage
• Communication: Non-Communicating
• Compressor: Scroll Compressor
• A2L Compatible: Yes
• BTU Cooling Rating: 17100 Btu/h
• Collection: Endeavor® Line
• Compressor Stages: Single Stage
• Decibel Rating (dB): 70 dB
• Factory Std. Refrigerant Charge: 64
• Horsepower: 1/7 hp
• MBH: 18
• Phase: Single Phase
• Power Source: Electric
• Sound Blanket: No
• Tonnage: 1.5 Ton
• UL Listed: Yes
• Volts: 208/230V
