Weatherking W951T1155A24M4SNAS 95% CT M1 W951T 112MBH 5 ton

Product Description

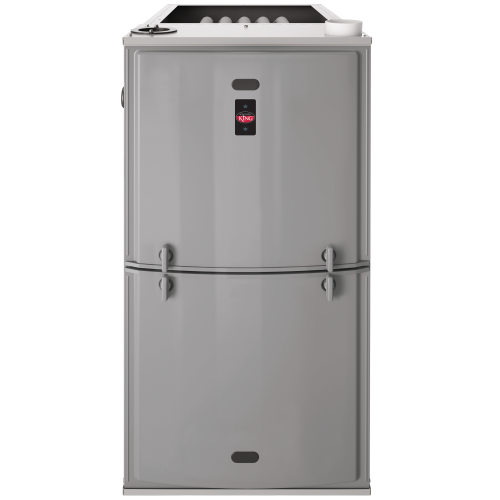

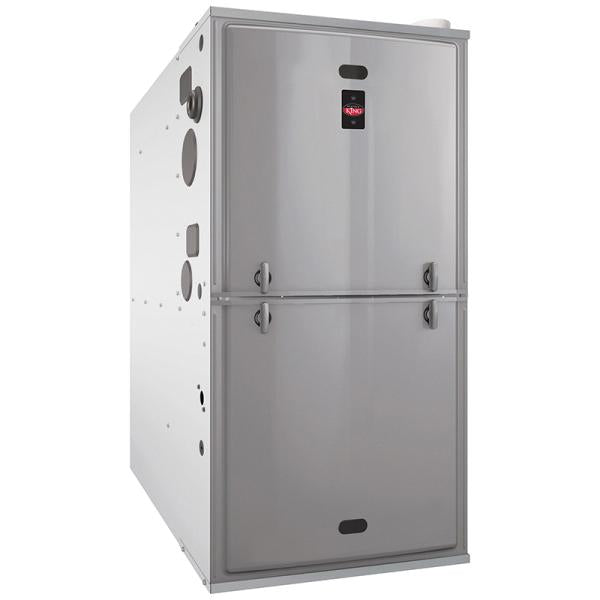

The WeatherKing W951T1155A24M4SNAS is a 95% AFUE gas furnace with a 7-Segment LED for easy service, a Direct Spark Ignition (DSI) system, and a patented block drain sensor that shuts off the furnace when the drain is blocked. It features a stainless steel secondary heat exchanger and an aluminized steel primary heat exchanger. Designed for multi-position installation.

• Features a 7-Segment LED for quick and easy service
• Equipped with a Direct Spark Ignition (DSI) system for reliability
• Includes a patented block drain sensor for safety

Product Highlights

This WeatherKing gas furnace offers 95% AFUE, efficient operation, and multiple safety features for reliable home heating.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: W951T1155A24M4SNAS

Technical Specifications

• SKU: 111208
• Default UOM: ea
• Product Type: Simple product
• Pack Size: 1/ea
• UOM: ea
• Type: Furnace
• SubType: 112,000 BTU
• MPN: W951T1155A24M4SNAS
• ABRPN: W951T1155A24M4SNAS
• Series: W951T
• Efficiency: 95%
• Brand: Weatherking
• Voltage: 115 V
• Product Status: Stock
• AFUE: 95%
• Configuration: Multi-Position
• EcoNet Enabled: No
• Motor Type: Constant Torque Single Stage
• Nominal Size: 5 Ton
• Width: 24"
• AFUE Rating: 95 %
• Amperage Rating: 14 A
• Blower Size: 11 in Dia x 11 in W
• Connection Size: 1/2 in
• Connection Type: NPT
• Domestic/Import: Domestic
• Frequency Rating: 60 Hz
• HP Rating: 1 hp
• Ignition System: Electronic
• Ignition Type: Direct Spark
• Input BTU Rating: 112000 Btu/hr
• Material: Stainless Steel/Steel
• Model: W951T
• Number of Speeds: 5
• Number of Stages: 1
• Output BTU Rating: 106400 Btu/hr
• Phase: 1 ph
• Pressure Rating: 0.224 kPa
• Temperature Rise: 45 to 75 deg F
• Tonnage: 5 ton
• Wattage: 746 W
• BTU/HR: 115K
• HEATING CAPACITY BTU/HR: 106,400
• Cooling CFM @ Rating Point: 1996
• Heating Speed/Cooling Speed: Med/High
• BLOWER (D x W): 11 X 11
• MOTOR H.P-TYPE: 1-5 Spd Constant Torque
• MIN. CIRCUIT AMPACITY: 14
• MIN. OVERLOAD PROTECTION DEVICE: 20
• MAX. OVERLOAD PROTECTION DEVICE: 20
• Application: Gas Furnace 1-Stage
• CONFIGURATION: Multi4 Way
• Temperature Rise Range °F: 45-75
• Communication: Non-Communicating
• SUPPLY AIR (Nominal Inch): 24 x 20
• RETURN AIR (Nominal Inch): 24 x 20
