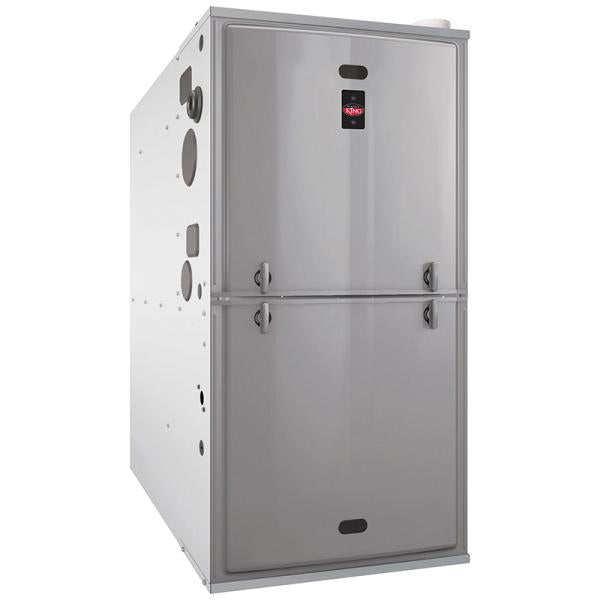

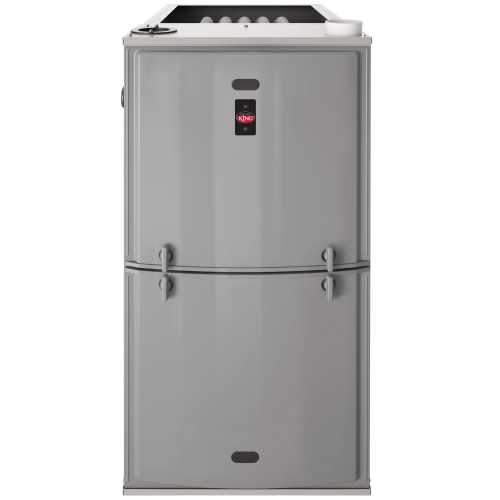

Weatherking W951T0855A21M4SNAS W951T Standard-Grade Gas Furnace 84000 BTU/hr 5 ton

Product Description

The WeatherKing W951T0855A21M4SNAS Versus™ Standard-Grade Gas Furnace, model W951T, features an input BTU rating of 84000 Btu/hr and an output of 79800 Btu/hr. This 115 V, 13 A, 1 hp furnace has an AFUE rating of 95% and utilizes a direct spark ignition system. It is designed for 4-way, multi-position configuration and includes a 5-speed ECM motor. Ideal for residential heating, this unit ensures efficient and reliable performance.

• 95% AFUE rating for energy savings.
• Constant torque ECM motor delivers heated airflow.
• ENERGY STAR certified for enhanced comfort and energy efficiency.

Product Highlights

Efficient and reliable gas furnace with high AFUE rating and ENERGY STAR certification.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: W951T0855A21M4SNAS

Technical Specifications

• AFUE Rating: 95 %
• Amperage Rating: 13 A
• Blower Size: 11 in Dia x 10 in W
• Cabinet Dimensions: 34 in H x 21 in W x 29-5/8 in D
• Configuration: 4-Way, Multi-Position
• Frequency Rating: 60 Hz
• HP Rating: 1 hp
• Ignition System: Electronic
• Ignition Type: Direct Spark
• Input BTU Rating: 84000 Btu/hr
• Material: Stainless Steel/Steel
• Model: W951T
• Motor Type: ECM
• Number of Speeds: 5
• Number of Stages: 1
• Output BTU Rating: 79800 Btu/hr
• Phase: 1 ph
• Temperature Rise: 35 to 65 deg F
• Tonnage: 5 ton
• Voltage Rating: 115 V
• Wattage: 746 W
• EcoNet Enabled: No
• Nominal Size: 5 Ton
• Width: 21"
• Type: Furnace
• SubType: 84,000 BTU
• MPN: W951T0855A21M4SNAS
• ABRPN: W951T0855A21M4SNAS
• Series: W951T
• Efficiency: 95%
• Brand: Weatherking
• Heating Capacity BTU/HR: 79,800
• Heating Speed/Cooling Speed: Med-Low/High
• BLOWER (D x W): 11 X 10
• MOTOR H.P-TYPE: 1-5 Spd Constant Torque
• MIN. CIRCUIT AMPACITY: 13
• MIN. OVERLOAD PROTECTION DEVICE: 20
• MAX. OVERLOAD PROTECTION DEVICE: 20
• Application: Gas Furnace 1-Stage
• CABINET WXDXH (IN): 21
• SUPPLY AIR (Nominal Inch): 20 x 20
• RETURN AIR (Nominal Inch): 20 x 20
