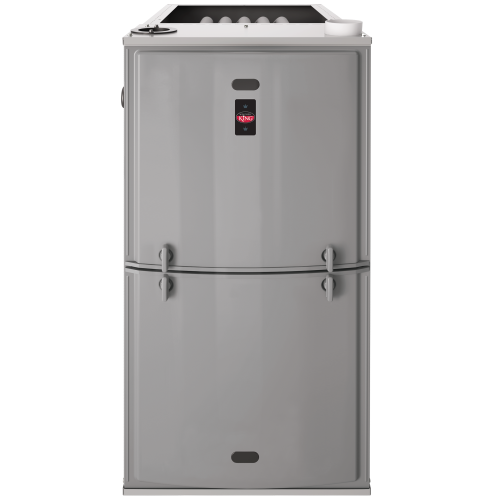

Weatherking W951T0603A17M4SNAS Standard-Grade Gas Furnace 56000 BTU/hr 3 ton

Product Description

The WeatherKing W951T0603A17M4SNAS is a standard-grade gas furnace with an input BTU rating of 56000 Btu/hr and an output BTU rating of 53200 Btu/hr. This model operates at 115 V and 10 A, with a 1/2 hp motor. It features a 95% AFUE rating and utilizes an electronic direct spark ignition system. The furnace is designed for multi-position configuration.

• 95% AFUE rating for energy savings.
• Constant torque ECM motor delivers heated airflow.
• ENERGY STAR certified for enhanced comfort and energy efficiency.

Product Highlights

This WeatherKing gas furnace offers efficient heating with its high AFUE rating and reliable ECM motor, ensuring consistent warmth and energy savings.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: W951T0603A17M4SNAS

Technical Specifications

• AFUE Rating: 95 %
• Amperage Rating: 10 A
• Blower Size: 11 in Dia x 8 in W
• Cabinet Dimensions: 34 in H x 17-1/2 in W x 29-5/8 in D
• Configuration: 4-Way, Multi-Position
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Ignition System: Electronic
• Ignition Type: Direct Spark
• Input BTU Rating: 56000 Btu/hr
• Material: Stainless Steel/Steel
• Model: W951T
• Motor Type: ECM
• Number of Speeds: 5
• Number of Stages: 1
• Output BTU Rating: 53200 Btu/hr
• Phase: 1 ph
• Pressure Rating: 0.224 kPa
• Temperature Rise: 35 to 65 deg F
• Tonnage: 3 ton
• Voltage Rating: 115 V
• Wattage: 373 W
• Type: Furnace
• SubType: 60,000 BTU
• MPN: W951T0603A17M4SNAS
• ABRPN: W951T0603A17M4SNAS
• Series: W951T
• Efficiency: 95%
• Brand: Weatherking
• Voltage: 115 V
• HEATING CAPACITY BTU/HR: 53,200
• Cooling CFM @ Rating Point: 1473
• Heating Speed/Cooling Speed: Med-Low/High
• MOTOR H.P-TYPE: 1/2-5 Spd Constant Torque
• MIN. CIRCUIT AMPACITY: 10
• MIN. OVERLOAD PROTECTION DEVICE: 15
• MAX. OVERLOAD PROTECTION DEVICE: 15
• Application: Gas Furnace 1-Stage
• Temperature Rise Range °F: 35-65
• Communication: Non-Communicating
• CABINET WXDXH (IN): 17.5
• SUPPLY AIR (Nominal Inch): 16.5 x 20
• RETURN AIR (Nominal Inch): 16.5 x 20
• EcoNet Enabled: No
• Nominal Size: 3 Ton
• Width: 17.5"
• Manufacturers: RUUD®
• IPN: 7009850
• Stages: 1
• Speed: 5 Speed
• Motor: ECM Motor
• Pressure: 0.224 kPa
• Connection: 1/2 in
