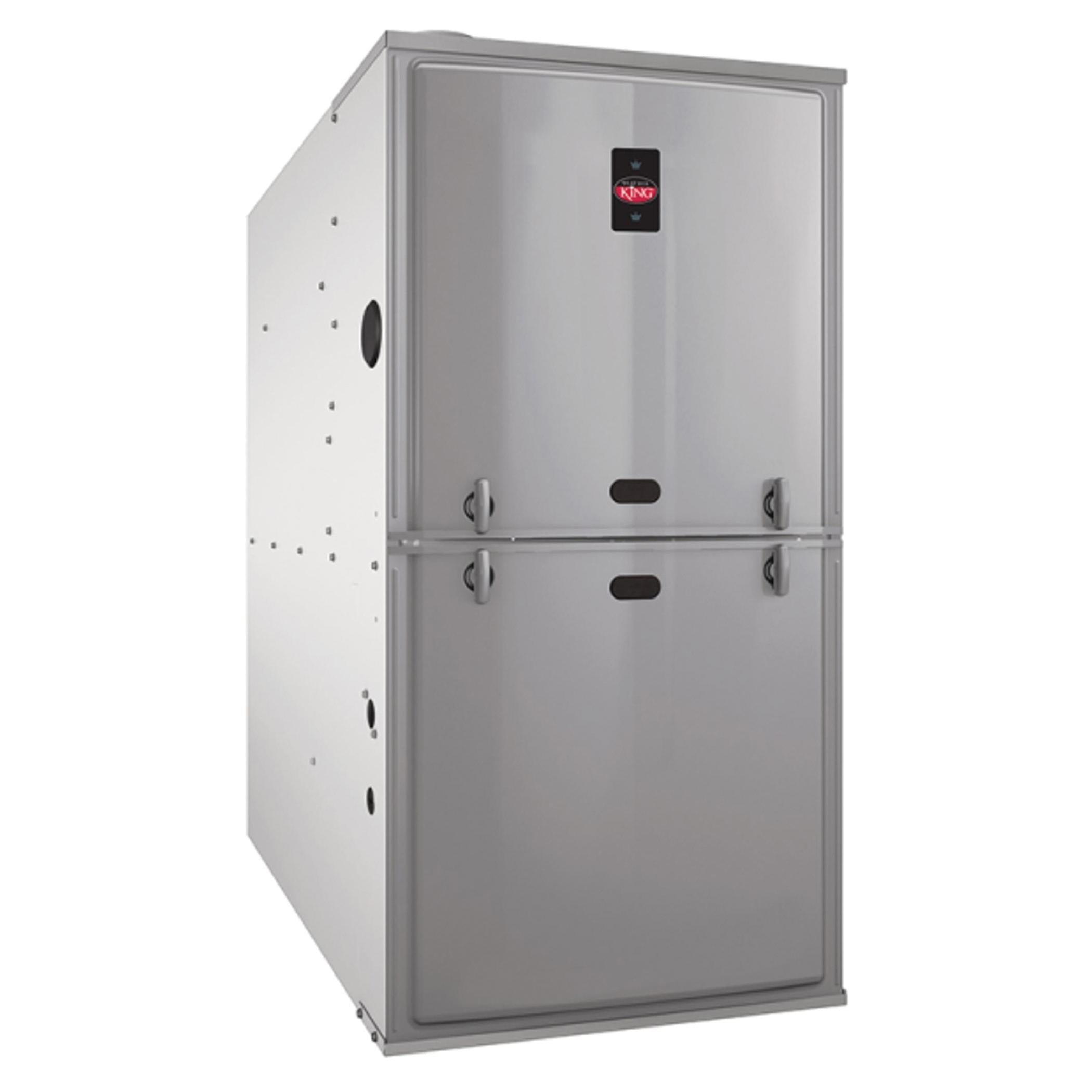

Weatherking W801T1255A24UHSNAS Gas Furnace 115 V 1934 cfm 3/4 hp 5 ton

Product Description

The WeatherKing W801T1255A24UHSNAS gas furnace is part of the Classic Series, featuring an input BTU rating of 125000 Btu/hr and an output of 100000 Btu/hr. Operating at 115 V and 1934 cfm with a 3/4 hp motor, this horizontal upflow furnace has a 5-ton capacity. It utilizes a direct spark ignition system and a constant torque motor.

• Features a seven-segment LED for quick diagnostics.
• Equipped with a Direct Spark Ignition (DSI) system for reliability.
• The 34 in low profile cabinet is suitable for space-constrained installations.

Product Highlights

This WeatherKing gas furnace offers efficient heating with a focus on easy serviceability and space-saving design.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: W801T1255A24UHSNAS

Technical Specifications

• Amperage Rating: 11 A
• Blower Size: 11 in D x 10 in W
• Cabinet Dimensions: 34 in H x 24.5 in W x 29.59 in D
• Connection Size: 1/2 in
• Connection Type: NPT
• Frequency Rating: 60 Hz
• Ignition Type: Direct Spark
• Motor Type: Constant Torque
• Number of Stages: 1
• Output BTU Rating: 100000 Btu/hr
• Phase: 1 ph
• Temperature Rise: 35 to 65 deg F
• Tonnage: 5 ton
• Input BTU Rating: 125000 Btu/hr
• Voltage Rating: 115 V
• CFM Rating: 1934 cfm
• HP Rating: 3/4 hp
• Configuration: Horizontal Upflow
• Efficiency: 80%
• Brand: Weatherking
• MPN: W801T1255A24UHSNAS
