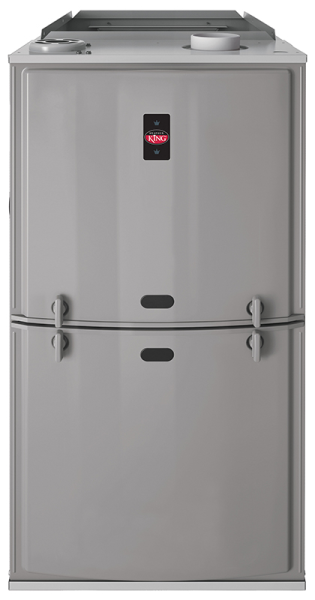

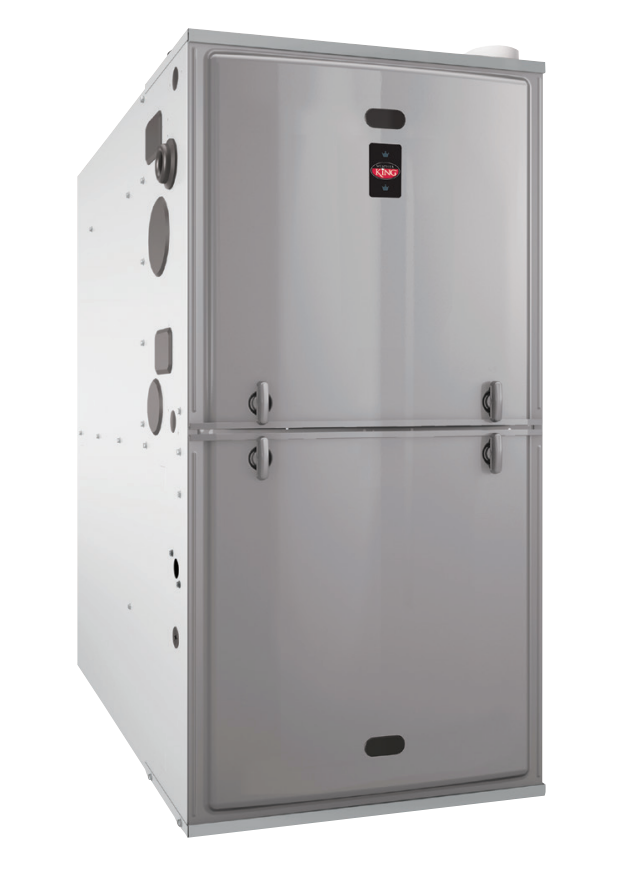

Weatherking W801T1005A21UHSNAS 80% AFUE Gas Furnace, 100k BTU, Single-Stage, Upflow/Horizontal

Product Description

The WeatherKing W801T1005A21UHSNAS gas furnace is an 80% AFUE, single-stage unit designed for upflow/horizontal installation. The furnace features a removable heat exchanger with aluminized steel construction for corrosion resistance and thermal fatigue reliability. Its low-profile 34-inch cabinet is suitable for space-constrained installations. The integrated control board features dip switches for easy system setup.

• CSA certified 80% residential gas furnace
• Features PlusOne Diagnostics with a 7-segment LED display
• Equipped with a PlusOne DSI ignition system for reliability

Product Highlights

This WeatherKing gas furnace delivers efficient heating with a compact design and user-friendly features.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: W801T1005A21UHSNAS

Technical Specifications

• Amperage Rating: 10 A
• Blower Size: 11 in D x 10 in W
• Connection Size: 1/2 in
• Connection Type: NPT
• Frequency Rating: 60 Hz
• Ignition Type: Direct Spark
• Motor Type: Constant Torque ECM
• Number of Stages: 1
• Output BTU Rating: 80000 Btu/hr
• Phase: 1 ph
• Series: W801T
• Temperature Rise: 40 to 70 deg F
• Input BTU Rating: 100000 Btu/hr
• Voltage Rating: 115 V
• CFM Rating: 1840 cfm
• HP Rating: 3/4 hp
• AFUE Rating: 80 %
• Configuration: Horizontal Upflow
• Fuel Type: Natural Gas~Liquid Propane
• Type: Furnace
• SubType: 100,000 BTU
• MPN: W801T1005A21UHSNAS
• ABRPN: W801T1005A21UHSNAS
• Efficiency: 80%
• Brand: Weatherking
• HEATING CAPACITY BTU/HR: 80,000
• Cooling CFM @ Rating Point: 1840
• Heating Speed/Cooling Speed: Med/High
• MOTOR H.P-TYPE: 3/4-5 Spd Constant Torque
• MIN. CIRCUIT AMPACITY: 10
• MIN. OVERLOAD PROTECTION DEVICE: 15
• MAX. OVERLOAD PROTECTION DEVICE: 15
• Application: Gas Furnace 1-Stage
• CONFIGURATION: UPFLOW/ HORIZONTAL
• Temperature Rise Range °F: 40-70
• Communication: Non-Communicating
• BTU Heating Input: 100,000 BTU/h
• BTU Heating Output: 80,000 BTU/h
• CFM Airflow: 1,800 CFM
• Communicating: No
• Energy Star Certified: No
• Model Number: W801T
• Vent Type: Type B
• Supplier Part #: W801T1005A21UHSNAS
• UPC #: 662021625190
• Depth: 29.625 in
• Height: 34 in
• Width: 21 in
• MBH: 100 MBH
• Air Flow Direction: Upflow~Horizontal~Multi-Position
• BTU Heating Input Rating (Custom): 96,000 BTU/h
• BTU Heating Output Rating (Custom): 84,000 BTU/h
• CFM Airflow (Custom): 1,840 CFM
