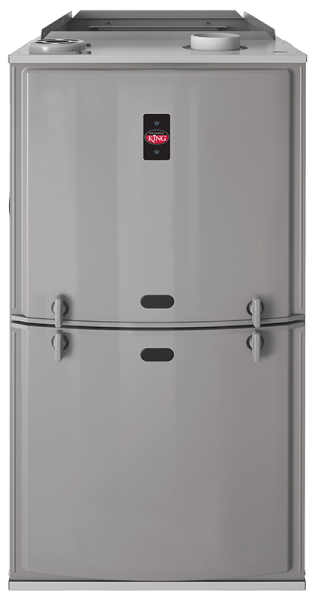

Weatherking W801T0754A17UHSNAS Gas Furnace 75000 BTU/hr 4 ton

Product Description

The WeatherKing W801T0754A17UHSNAS gas furnace from the Classic series features an input BTU rating of 75000 BTU/hr and an output of 60000 BTU/hr. Operating at 115 V, 8 A, and 1402 cfm with a 1/2 hp motor, this single-stage furnace has an AFUE rating of 0.8 %. Designed for horizontal upflow configuration, it includes direct spark ignition and a constant torque motor.

• Features a seven-segment LED for quick diagnostics.
• Equipped with a Direct Spark Ignition (DSI) system for reliability.
• The 34 in low profile cabinet is ideal for space-constrained installations.

Product Highlights

This WeatherKing gas furnace provides efficient and reliable heating for residential applications, with easy serviceability and durable construction.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: W801T0754A17UHSNAS
• Country of Origin: Mexico

Technical Specifications

• Input BTU Rating: 75000 Btu/hr
• Output BTU Rating: 60000 Btu/hr
• Voltage Rating: 115 V
• Amperage Rating: 8 A
• CFM Rating: 1402 cfm
• HP Rating: 1/2 hp
• AFUE Rating: 80 %
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Number of Stages: 1
• Configuration: Horizontal Upflow
• Fuel Type: Natural Gas~Liquid Propane
• Motor Type: Constant Torque ECM
• Ignition Type: Direct Spark
• Temperature Rise: 25 to 55 deg F
• Tonnage: 4 ton
• Series: W801T
• Heating Speed/Cooling Speed: Med/High
• MIN. CIRCUIT AMPACITY: 9
• MIN. OVERLOAD PROTECTION DEVICE: 15
• MAX. OVERLOAD PROTECTION DEVICE: 15
• Application: Gas Furnace 1-Stage
• Communication: Non-Communicating
• Air Flow Direction: Upflow~Horizontal~Multi-Position
• Depth: 29.625 in
• Energy Star Certified: No
• Height: 34 in
• MBH: 75 MBH
• Model Number: W801T
• Vent Type: Type B
• Overall Width: 17 1/2 in
• Flue Diameter: 4 in
• Bottom Return Filter Size: 15 in x 24 in
• Supply Opening Width: 17 in
• Supply Opening Depth: 20 in
• Overall Height: 34 in
• Side Return Filter Size: 15 3/4 in x 25 in
• Overall Depth: 29 19/32 in
• Available Cooling Tons: 4 ton
• Heater Voltage: 115 V AC
• Heating Capacity Output: 60,000 BtuH
• Cabinet Configuration: Upflow Furnace
• Air Flow: 1,608 cfm
• Annual Fuel Utilization Efficiency: 80 %
• California Low NOx Compliant: No
• Product Type: 80% AFUE Gas Furnaces
• Heating Capacity Input: 75,000 BtuH
• Item: Residential Gas Furnace
• Standards: AHRI, CSA, cULus, ISO 9001:2015
• Type: Furnace
• SubType: 75,000 BTU
• MPN: W801T0754A17UHSNAS
• ABRPN: W801T0754A17UHSNAS
• Efficiency: 80%
• Brand: Weatherking
• Voltage: 120v
• Product Status: Stock
