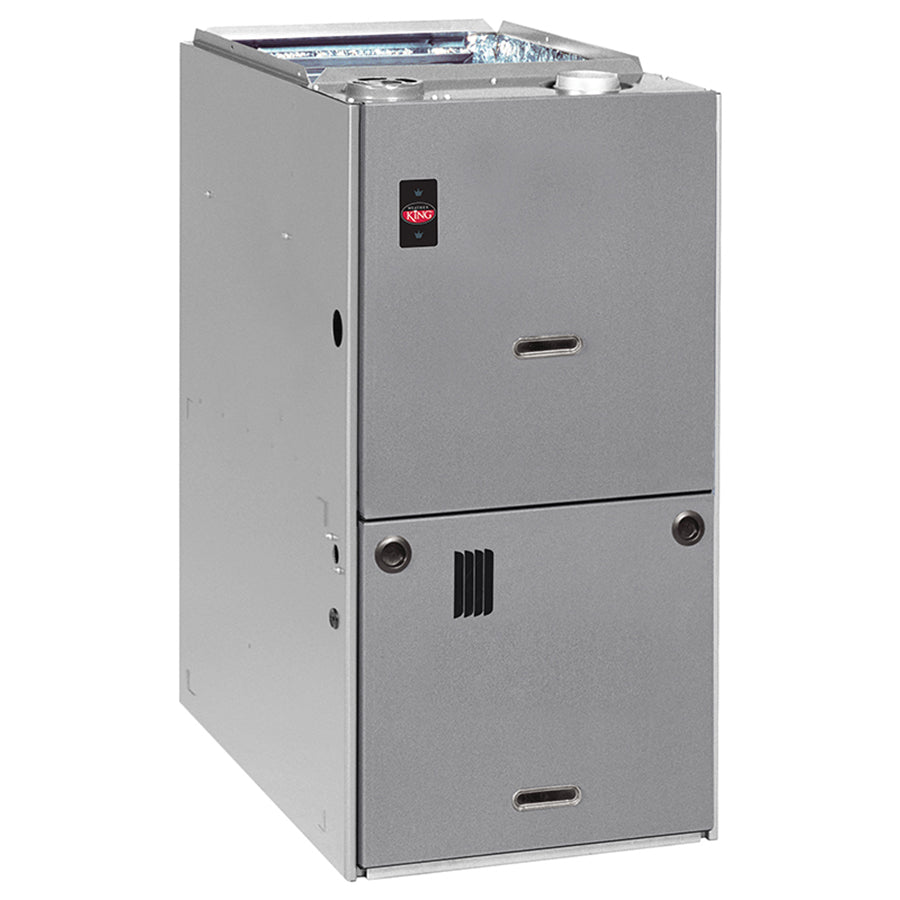

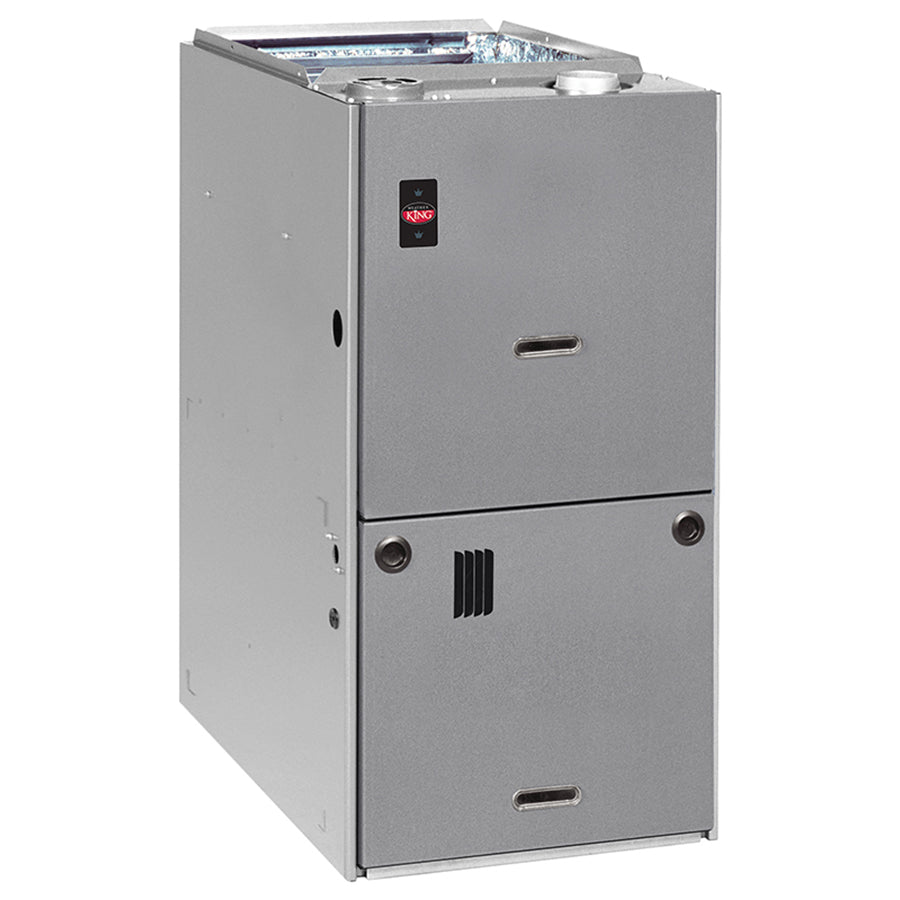

Weatherking W801T0753A17DZSNAS Downflow Gas Furnace 75K Btu

Product Description

The WEATHERKING W801T0753A17DZSNAS is a single-stage, downflow natural gas furnace rated at 75,000 BTU/h with 80% AFUE efficiency. It is equipped with an electronically commutated motor (ECM) for variable-speed blower operation, which improves airflow consistency and reduces electrical consumption compared to standard PSC motors. This furnace is designed for residential forced-air heating systems where the air handler is positioned above the ductwork and conditioned air is discharged downward. Installation and commissioning are typically performed by a licensed HVAC technician.

This furnace is sized for applications requiring approximately 3 nominal tons of cooling coil compatibility, making it well suited for mid-size residential installations. The downflow configuration is commonly used in homes with crawl-space or slab-on-grade duct systems, utility closets, or alcove installations where a bottom-discharge layout is required. The single-stage gas valve delivers full rated capacity on every call for heat, providing straightforward, reliable operation.

Key Features

• 75,000 BTU/h output for mid-size residential heating loads
• 80% AFUE efficiency rating
• Downflow configuration for bottom-discharge duct systems
• ECM blower motor for improved airflow control and reduced electrical draw
• Single-stage operation for simplified controls and reliable ignition sequencing
• Natural gas fuel type for use with standard residential gas supply

Compatibility

Designed as an OEM-style downflow natural gas furnace for residential forced-air heating systems requiring a bottom-discharge, single-stage unit with an ECM blower motor at 80% AFUE.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Fuel Gas Code (NFPA 54) and all applicable local codes. Shut off the gas supply and disconnect electrical power before servicing or replacing any furnace components. Verify that the venting system, gas line sizing, and electrical supply all meet the specifications listed in the manufacturer installation instructions before startup. Do not attempt to convert this unit to a fuel type other than the one for which it is rated.

Technical Specifications

• Fuel Type: Natural Gas
• BTU/h Output: 75,000 BTU/h
• AFUE Efficiency: 80%
• Configuration: Downflow
• Stage: Single Stage
• Motor Type: ECM
• Nominal Cooling Tonnage: 3 tons

Standard Information

• Brand: WEATHERKING
• Manufacturer Part Number: W801T0753A17DZSNAS
