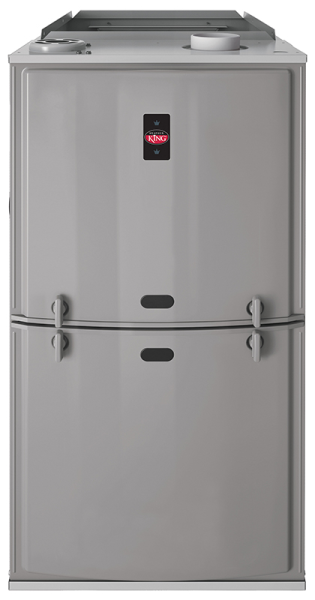

Weatherking W801T0503A14UHSNAS Classic Series Gas Furnace 115 V, 1305 cfm, 1/2 hp, 1.5-3.0 Ton

Product Description

The WeatherKing W801T0503A14UHSNAS Classic Series Gas Furnace operates at 115 V, delivering 1305 cfm with a 1/2 hp motor and an AFUE rating of 0.8%. This horizontal upflow furnace is designed for 1.5-3.0 ton applications. It features a direct spark ignition and a constant torque motor within a 34 in H x 14 in W x 29.59 in D cabinet.

• Features a seven segment LED for diagnostics.
• Equipped with a Direct Spark Ignition (DSI) system for reliability.
• The 34 in cabinet is suitable for space-constrained installations.

Product Highlights

This WeatherKing gas furnace combines efficient design with ease of service, making it suitable for various installation needs.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: W801T0503A14UHSNAS

Technical Specifications

• Amperage Rating: 8 A
• Blower Size: 11 in D x 6 in W
• Cabinet Dimensions: 34 in H x 14 in W x 29.59 in D
• Frequency Rating: 60 Hz
• Ignition Type: Direct Spark
• Motor Type: Constant Torque ECM
• Number of Stages: Single-Stage
• Output BTU Rating: 40000 Btu/hr
• Phase: 1 ph
• Temperature Rise: 25 to 55 deg F
• Tonnage: 3 ton
• Input BTU Rating: 50000 Btu/hr
• Voltage Rating: 115 V
• CFM Rating: 1305 cfm
• HP Rating: 1/2 hp
• AFUE Rating: 0.8 %
• Configuration: Horizontal Upflow
• Fuel Type: Natural Gas~Liquid Propane
• Heating Capacity BTU/HR: 40,000
• Cooling CFM @ Rating Point: 1305
• Heating Speed/Cooling Speed: Med/High
• MIN. CIRCUIT AMPACITY: 8
• MIN. OVERLOAD PROTECTION DEVICE: 15
• MAX. OVERLOAD PROTECTION DEVICE: 15
• Application: Gas Furnace 1-Stage
• Temperature Rise Range °F: 25-55
• Communication: Non-Communicating
• AFUE: 80%
• SUPPLY AIR (Nominal Inch): 13 x 20
• RETURN AIR (Nominal Inch): 12 x 24
• BtuH Heating Input: 50,000
• Air Flow Direction: Upflow~Horizontal~Multi-Position
• BTU Heating Input: 50,000 BTU/h
• BTU Heating Output: 40,000 BTU/h
• CFM Airflow: 1,300 CFM
• Communicating: No
• Depth: 29.625 in
• Energy Star Certified: No
• Height: 34 in
• MBH: 50 MBH
• Model Number: W801T
• Product Family: Versus
• Product Weight: 96.5 lbs
• Vent Type: Type B
• Voltage: 120v
• Efficiency: 80%
