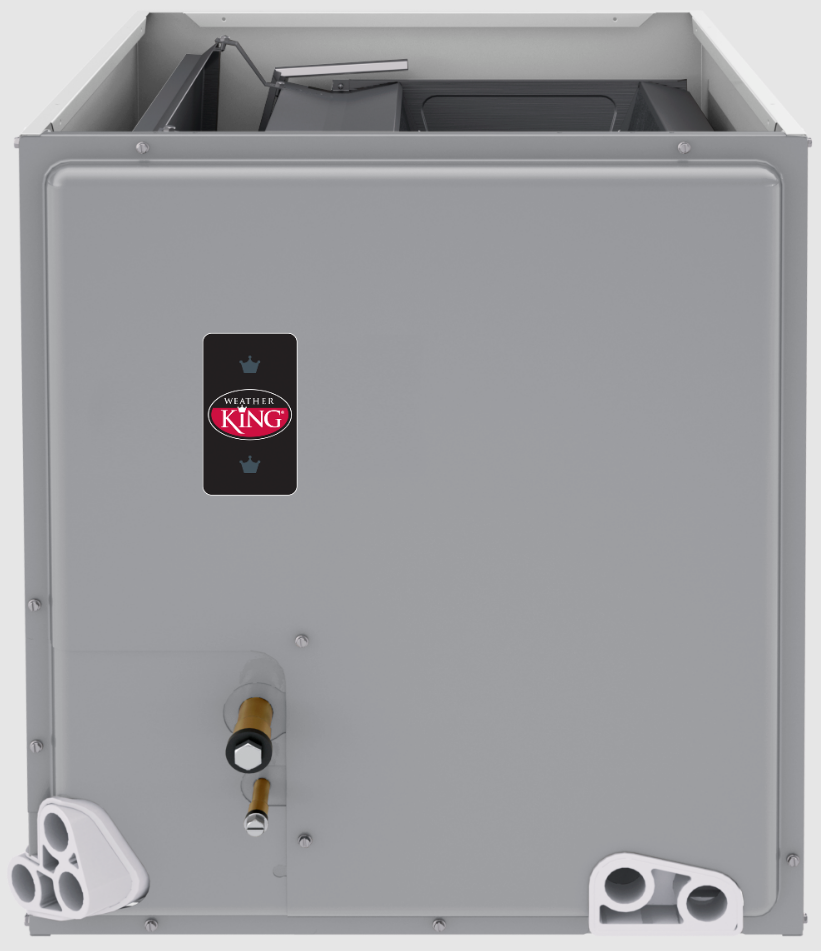

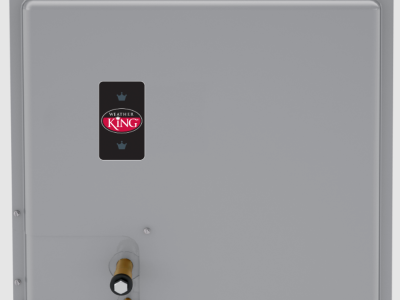

Weatherking TCF6021STAMCA Cased Coil 5 Ton AC/HP

Product Description

The WeatherKing TCF6021STAMCA cased coil is designed for use with WeatherKing outdoor units and is available for vertical upflow or downflow, and horizontal left or horizontal right airflow. Constructed of aluminum fins bonded to internally grooved aluminum tubing. Coils are tested at the factory with an extensive refrigerant leak check. Compatible with Germicidal UV Resistant Light System.

• Multiposition coil design for versatile installation.
• Constructed with aluminum fins and internally grooved aluminum tubing.
• Features two 3/4 inch condensate drain connections for easy connection.

Product Highlights

The TCF6021STAMCA is a 5 ton cased coil designed for multiposition installation and efficient performance with WeatherKing outdoor units.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: TCF6021STAMCA

Technical Specifications

• MPN: TCF6021STAMCA
• ABRPN: TCF6021STAMCA
• Size: 5 Ton
• Series: TCF
• Efficiency: 13 SEER
• Brand: Weatherking
• Refrigerant: R410A
• Type: Cooling
• Material: Aluminum
• Height (inches): 34.50
• Width (inches): 21
• Depth (inches): 21.6875
• Cased: Yes
• BTU: 60000
• Nominal Capacity (Tons): 5
• Configuration: Multiposition
• Inlet Size: 3/8
• Outlet Size: 7/8
• Rows: 3
• Connection Type: 3/8" Liquid Line - 7/8" Suction Line
