Weatherking TCF2417STAMCA Cased Evaporator Coil 2 Ton

Product Description

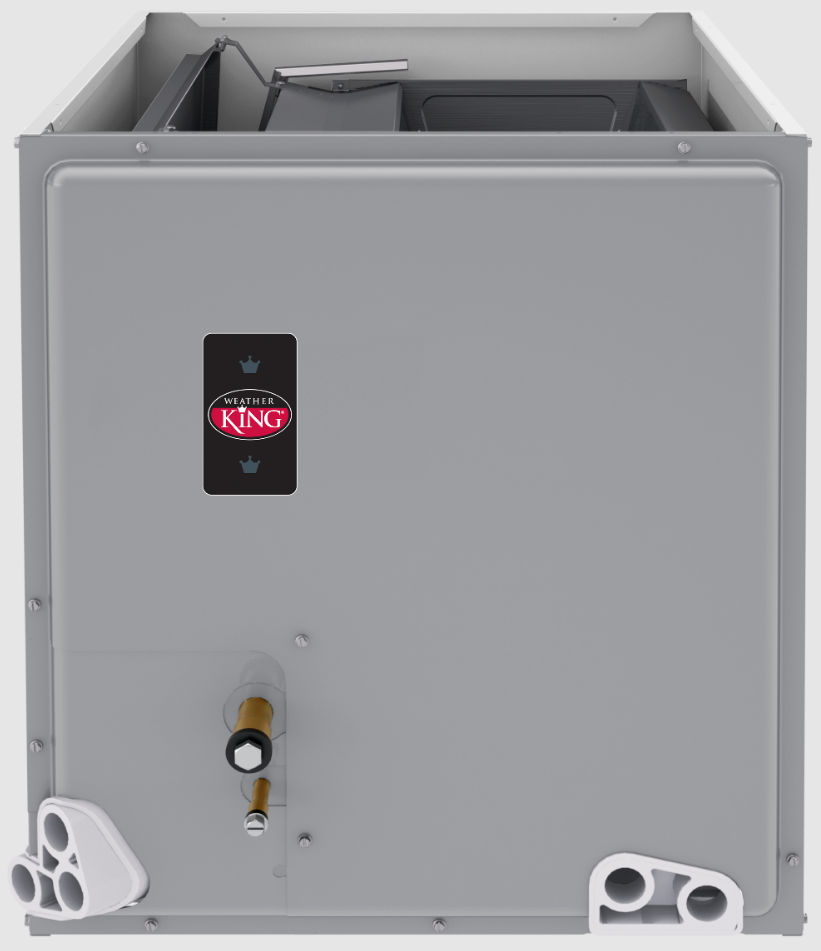

The WeatherKing TCF2417STAMCA is a 2 Ton multi-position cased evaporator coil designed for use with WeatherKing outdoor units. Constructed with aluminum fins bonded to internally grooved aluminum tubing and copper sweat refrigerant connections. It features two 3/4 inch condensate drain connections and a unique drain pan design. Compatible with Germicidal UV Resistant Light Systems.

• Multiposition coil for vertical upflow or downflow, and horizontal left or right airflow.
• Constructed of aluminum fins bonded to internally grooved aluminum tubing.
• Features two 3/4 inch condensate drain connections for ease of connection.

Product Highlights

The WeatherKing TCF2417STAMCA evaporator coil is designed for optimal performance and application flexibility.

Product Information

Standard Information

• Brand: WeatherKing
• Manufacturer Part Number: TCF2417STAMCA

Technical Specifications

• Brand: Weatherking
• Manufacturer: Rheem
• Model / MPN: TCF2417STAMCA
• MPN: TCF2417STAMCA
• UPC: 732382100350
• Product Type: AIR_CONDITIONER
• Product Group: Home
• Type: Coil
• SubType: Cased Coil
• Size: 2 Ton
• Series: TCF
• Efficiency: 13 SEER - 14 SEER
• Connection Type: 3/8" Liquid Line - 3/4" Suction Line
• Refrigerant: R410A
• Material: Aluminum
• Height (inches): 20
• Width (inches): 17.50
• Depth (inches): 21.6875
• Cased: Yes
• BTU: 24000
• Nominal Capacity (Tons): 2
• Configuration: Multiposition
• Inlet Size: 3/8
• Outlet Size: 3/4
• Rows: 2
