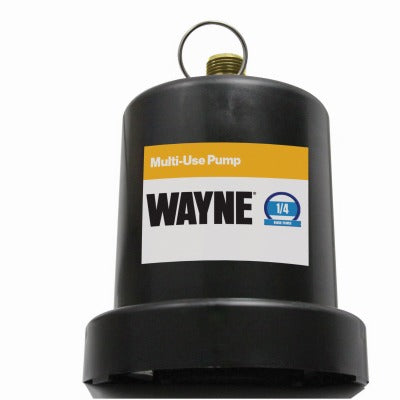

Wayne Water Systems TSC130 Utility Pump 1/4 Hp

Product Description

The WAYNE WATER SYSTEMS TSC130 is a portable electric utility pump designed for water removal applications in residential and light commercial settings. Rated at 1/4 HP, it moves up to 1,050 gallons per hour (GPH) at 0 feet of head. The motor housing is constructed from reinforced thermoplastic, providing corrosion resistance in wet environments. A volute impeller design supports efficient water transfer, and the pump passes solids up to 1/8 inches in size, reducing clog risk during typical water removal tasks. Licensed plumbers and general contractors routinely install or deploy units like this for basement flooding, standing water removal, and similar service calls.

The TSC130 is suited for portable use in basements, crawl spaces, utility rooms, and other areas where standing water must be removed quickly. Its top-center 3/4 inches discharge design provides balanced installation on flat surfaces. A 3/4 inches bronze discharge adapter connects directly to a standard garden hose, making field deployment straightforward without additional fittings in most cases. Assembled in the United States with domestic and foreign parts.

Key Features

• 1/4 HP motor with up to 1,050 GPH flow rate at 0 feet of head
• Reinforced thermoplastic motor housing for corrosion resistance
• Volute impeller for efficient water transfer
• Passes solids up to 1/8 inches to reduce clogging
• Top-center 3/4 inches discharge for balanced, stable placement
• 3/4 inches bronze discharge adapter compatible with standard hose connections

Compatibility

Designed as a portable OEM-style electric utility pump for general water removal use in residential and light commercial applications where a standard 3/4 inches hose connection is required.

Installation Notes

Installation and deployment are typically handled by licensed plumbers or qualified service technicians. Disconnect all electrical power to the area before placing or removing the pump in standing water. Ensure the discharge hose is fully secured to the bronze adapter and routed to an appropriate drain or exterior discharge point before operation. Follow all applicable local plumbing and electrical codes during installation.

Technical Specifications

• Motor Output: 1/4 HP
• Flow Rate: 1,050 GPH at 0 feet of head
• Discharge Connection: 3/4 inches bronze adapter, standard hose compatible
• Discharge Location: Top center
• Solid Passage: Up to 1/8 inches
• Motor Housing Material: Reinforced thermoplastic
• Impeller Type: Volute
• Weight: 8 pounds
• Package Quantity: 1
• Assembly: Assembled in the United States with domestic and foreign parts

Standard Information

• Brand: WAYNE WATER SYSTEMS
• Manufacturer Part Number: TSC130
