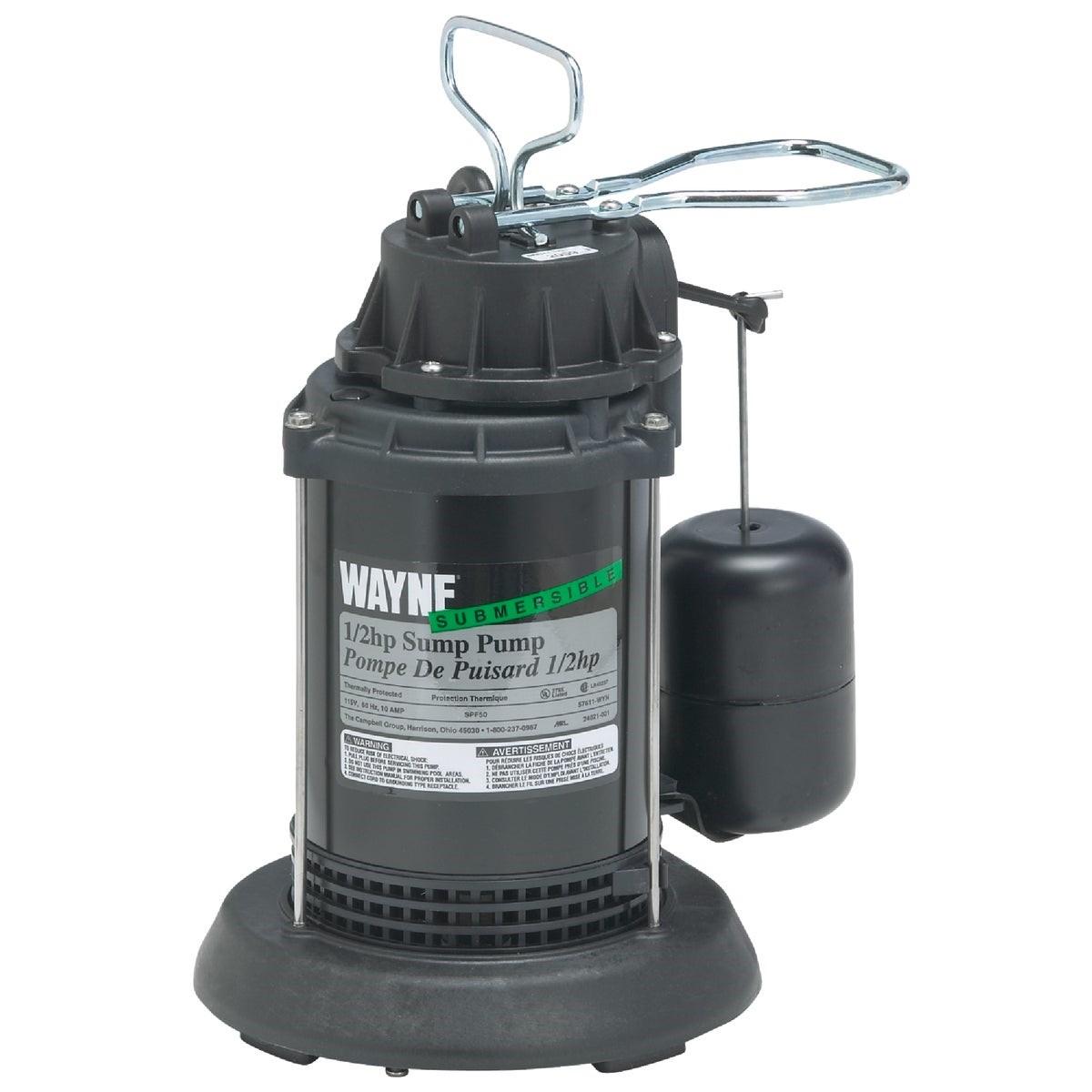

Wayne Water Systems SPF50 Submersible Sump Pump 1/2 Hp

Product Description

The WAYNE WATER SYSTEMS SPF50 is a 1/2 HP submersible sump pump designed for residential sump pit applications. Running on 115 volts, it uses an automatic float switch with a 2-pole, positive On/Off action that starts and stops the pump without manual intervention. The motor is oil-encased for quiet, cool operation and permanent lubrication. A watertight shaft seal with ceramic, liquid-lubricated construction prevents water from entering the motor housing, and automatic overload protection guards against damage to motor windings. Licensed plumbers and HVAC service technicians are the typical installers for this class of equipment.

The SPF50 fits sump pits as small as 12 inches in diameter, making it suitable for tight residential basement installations. It pulls water through a top-mounted suction strainer, eliminating the need for additional intake protection. The 1-1/2 inch discharge port connects to standard sump discharge piping. The 8-foot power cord is waterproof, 3-prong grounding type, UL listed, and CSA approved. Disconnecting conductors built into the design help protect against lightning damage during storm events when sump pumps are most actively running.

Key Features

• 1/2 HP motor, oil-encased for quiet operation and permanent lubrication
• Automatic float switch with 2-pole positive On/Off action
• Operates in sump pits as small as 12 inches in diameter
• Top suction strainer requires no special intake protection
• Ceramic, liquid-lubricated watertight shaft seal
• Automatic overload protection for motor winding safety
• Lightning-damage protection via disconnecting 115V conductors

Compatibility

Designed as an OEM-style replacement or direct installation pump for residential sump pit systems requiring a 1/2 HP, 115-volt submersible pump with a 1-1/2 inch discharge connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Disconnect power at the circuit breaker before lowering the pump into the sump pit or servicing any wiring connections. Verify the discharge line is properly routed and secured before restoring power. Do not operate the pump dry, and confirm float movement is unrestricted within the pit before completing installation.

Technical Specifications

• Motor Output: 1/2 HP
• Voltage: 115 volts
• Discharge Size: 1-1/2 inches
• Minimum Pit Diameter: 12 inches
• Cord Length: 8 feet
• Switch Type: 2-pole automatic float switch
• Seal Type: Ceramic, liquid-lubricated watertight shaft seal
• Weight: 14.65 pounds
• Certifications: UL Listed, CSA Approved
• Warranty: 1 year

Standard Information

• Brand: WAYNE WATER SYSTEMS
• Manufacturer Part Number: SPF50
