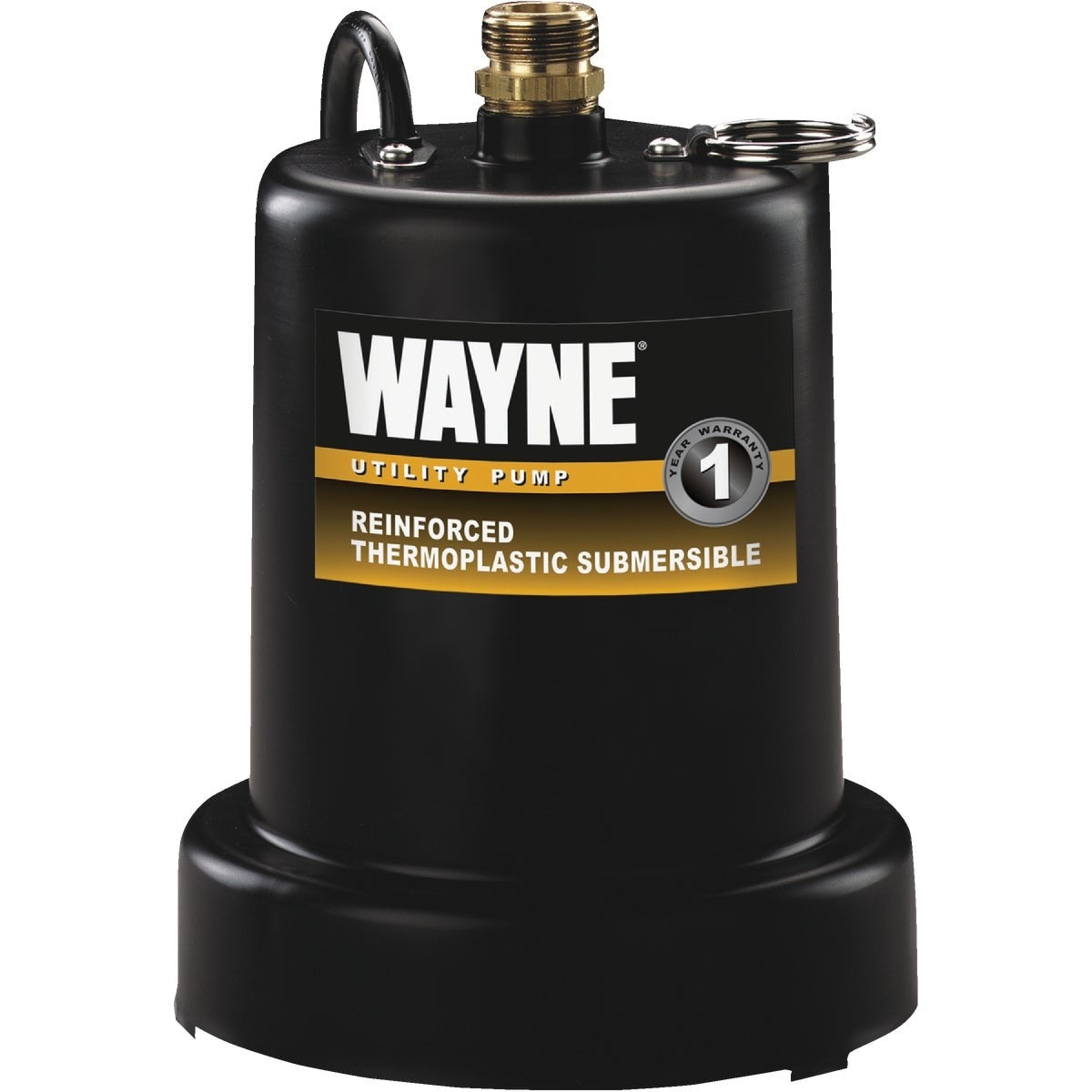

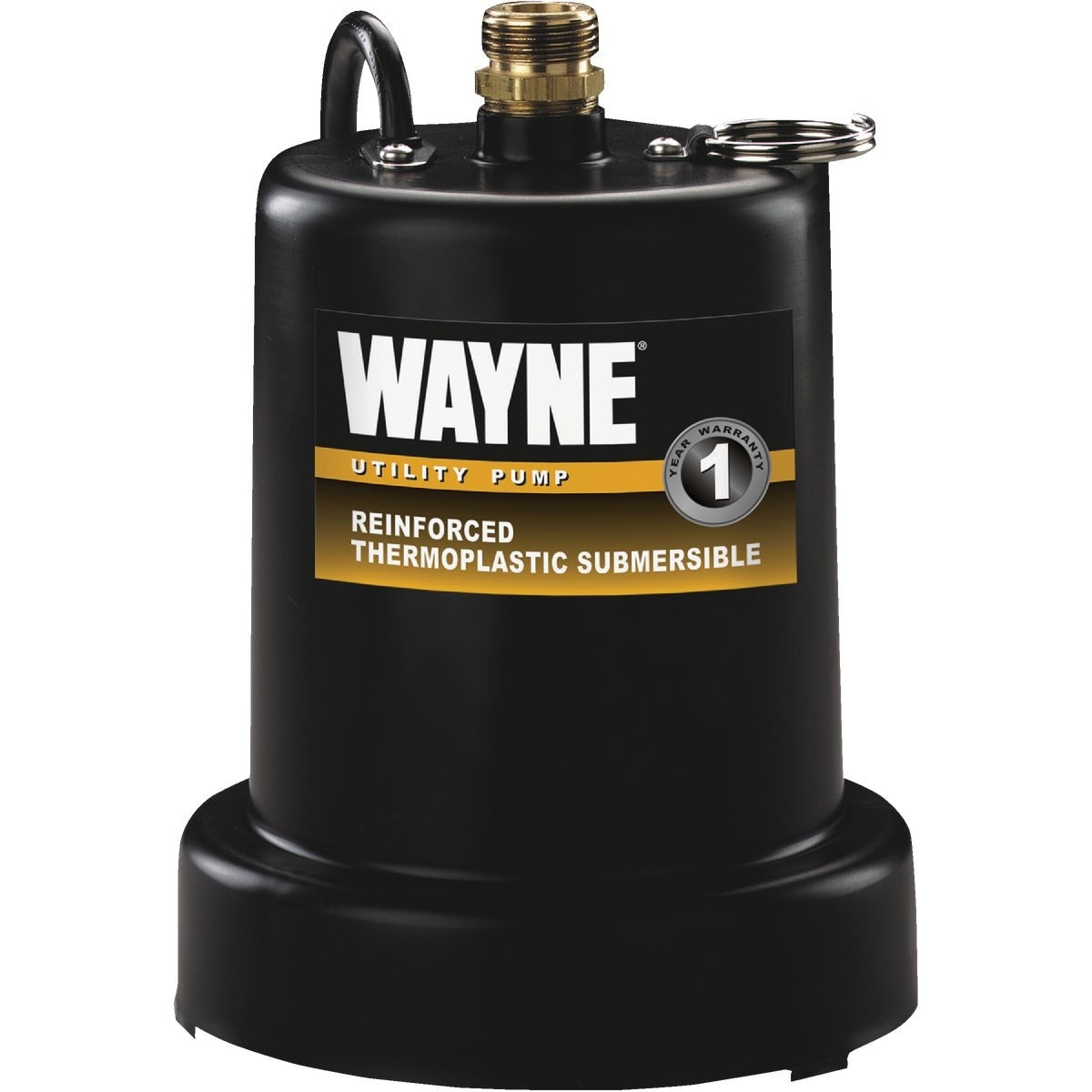

Wayne Water Systems 56517-TSC130 Submersible Utility Pump

Product Description

The WAYNE WATER SYSTEMS 56517-TSC130 is a 1/4 HP submersible portable utility pump built for fast, effective water removal in residential and light commercial settings. Rated at a maximum flow of 1050 gallons per hour (GPH), it can lift water over 25 feet and removes standing water down to 1/8 inch of surface level. The sealed thermoplastic construction is corrosion resistant and fully submersible, making it suitable for wet, demanding environments. A 3/4-inch bronze garden hose adapter at the discharge port allows quick connection to standard garden hose fittings. Weighing 6.45 pounds, it is light enough to move between job sites with ease.

This pump is designed for applications where portability and high lift capacity are priorities. Common uses include removing standing water from flooded basements, draining boats and stock tanks, emptying clogged sinks and tubs, draining aquariums, and boosting water pressure in low-flow situations. At 10 feet of discharge lift, the pump delivers 860 GPH, maintaining strong performance in typical basement or tank-drainage scenarios. It is assembled in the US with domestic and foreign parts.

Key Features

• 1/4 HP motor with a maximum flow rate of 1050 GPH
• Lifts water over 25 feet; removes water down to 1/8 inch of surface
• Fully submersible, sealed thermoplastic construction resists corrosion
• 3/4-inch bronze garden hose adapter included at discharge
• Delivers 860 GPH at 10 feet of discharge lift
• Portable design at 6.45 pounds for easy repositioning on the job

Compatibility

Designed as an OEM-style portable submersible utility pump suitable for standard 3/4-inch garden hose connections in residential and light commercial water removal applications.

Installation Notes

Installation and servicing of submersible utility pumps is typically performed by licensed plumbers or qualified technicians. Always disconnect power to the pump before handling or repositioning the unit. Ensure the discharge hose is properly routed away from the work area before operation. Follow all applicable local plumbing codes and manufacturer guidelines for safe setup and use.

Technical Specifications

• Motor Power: 1/4 HP
• Maximum Flow Rate: 1050 GPH
• Flow Rate at 10 ft Discharge Lift: 860 GPH
• Maximum Lift: Over 25 feet
• Minimum Water Removal Depth: 1/8 inch
• Discharge Connection: 3/4 inch bronze garden hose adapter
• Construction: Sealed thermoplastic, corrosion resistant
• Weight: 6.45 pounds
• Assembly: Assembled in the US with domestic and foreign parts

Standard Information

• Brand: WAYNE WATER SYSTEMS
• Manufacturer Part Number: 56517-TSC130
