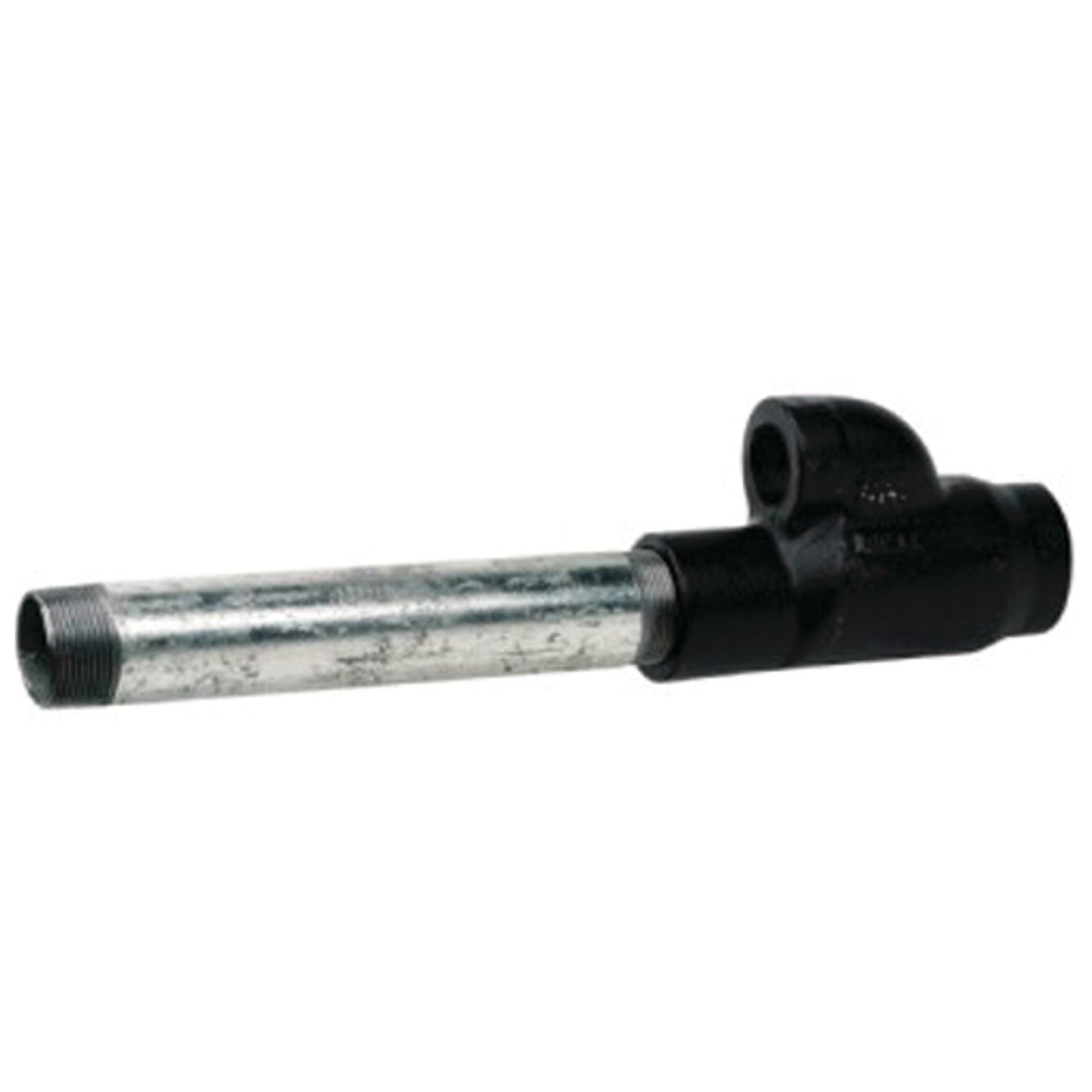

Wayne Water Systems 55465 4 Inch Jet Assembly Deep Well

Product Description

The WAYNE WATER SYSTEMS 55465 is a 4 inch jet assembly designed for two-pipe deep-well water systems. It mounts within the well casing and works in conjunction with a jet pump to draw water from depth by directing pressurized water through a nozzle and venturi to create suction lift. Correct jet assembly sizing is critical to pump performance and flow rate. This assembly is rated for well casings of 4 inches or larger and is sold as a single unit. Installation and service are typically performed by licensed plumbers or well system contractors.

This jet assembly is intended for residential and light commercial deep-well applications where a two-pipe jet pump configuration is used. The two-pipe design is standard practice for wells that exceed the suction lift range of a shallow-well single-pipe system, typically beyond 25 feet of total dynamic head. The 55465 is suited for new installations as well as replacement service on existing deep-well jet pump setups using 4 inch or larger well casings.

Key Features

• Designed for two-pipe deep-well jet pump systems
• Compatible with well casings 4 inches or larger in diameter
• Sold as a single assembly ready for installation
• Weighs 6 pounds for manageable handling during installation

Compatibility

Designed for use in two-pipe deep-well water systems with a well casing diameter of 4 inches or larger. Consult your jet pump documentation to confirm the correct jet assembly specification for your system flow and depth requirements.

Installation Notes

Installation should be performed by a licensed plumber or qualified well system contractor in accordance with applicable local plumbing codes. Before servicing, shut off power to the jet pump and relieve system pressure before disconnecting any plumbing connections. Ensure the jet body, nozzle, and venturi are properly seated and sealed before lowering the assembly into the well casing. Verify that the selected jet assembly matches the pump model specifications for nozzle size and flow rating.

Technical Specifications

• Casing Size Requirement: 4 inches or larger
• System Type: 2-pipe deep-well jet pump
• Weight: 6 pounds
• Unit of Measure: Each
• UPC: 00040066104113

Standard Information

• Brand: WAYNE WATER SYSTEMS
• Manufacturer Part Number: 55465
