Wavenet CAT6E-600-RISER-1000-SPLINE-WHITE Cat6e Riser Cable 600 MHz (1000 ft) 178129

Product Description

Wavenet CAT6E-600-RISER-1000-SPLINE-WHITE is a Cat6e network cable rated for 600 MHz with four unshielded twisted pairs separated by a spline and 23 AWG solid conductors. The riser-rated flame-retardant PVC jacket (CMR) is intended for in-wall riser installations. Packaged in a 1000 ft box, the cable supports Ethernet standards including 10BASE-T, 100BASE-TX and 1000BASE-T and is RoHS compliant.

• Cat6e performance to 600 MHz with four UTP twisted pairs and spline to reduce crosstalk
• 23 AWG solid conductors; unshielded (UTP) construction

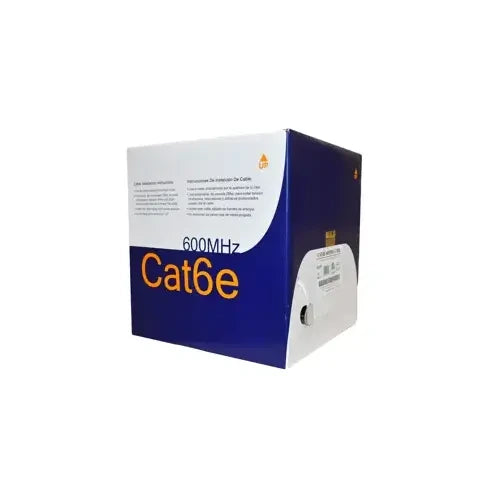

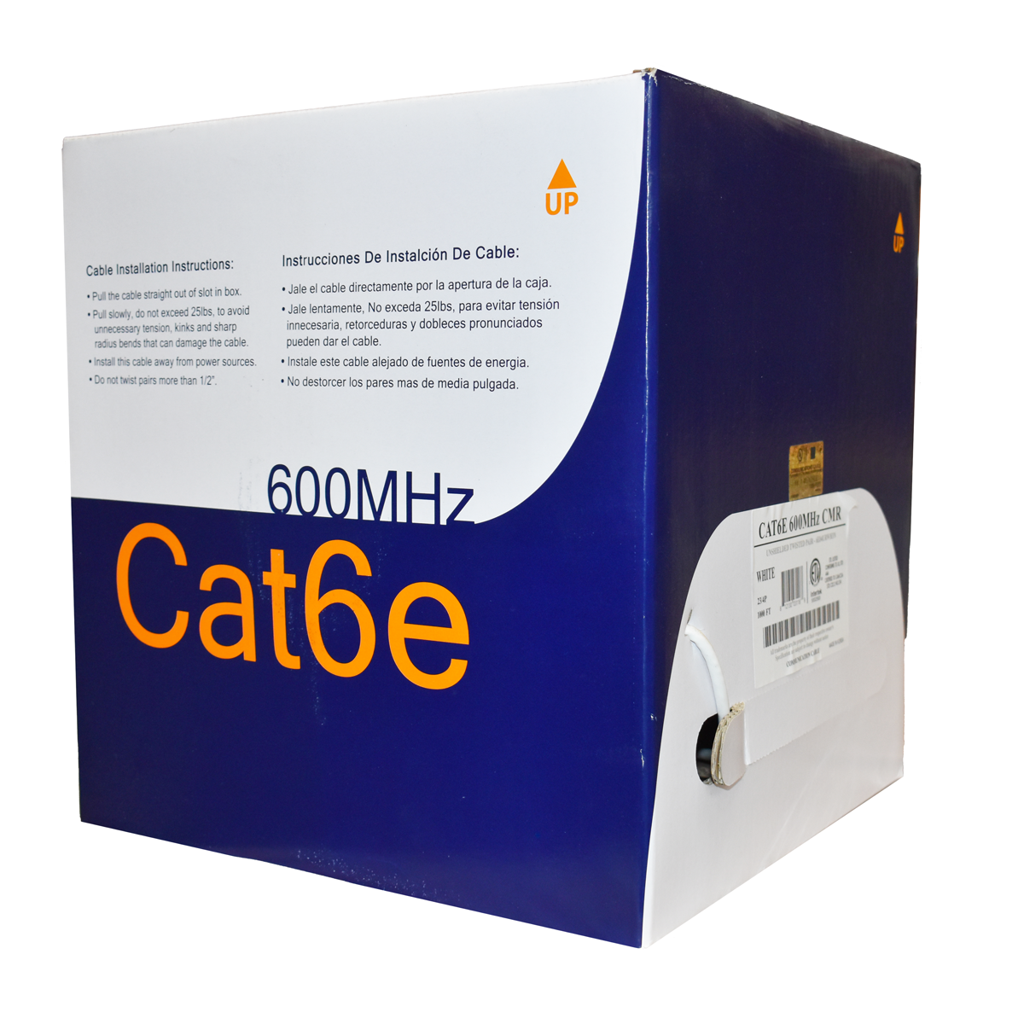

• Riser-rated flame-retardant PVC jacket (CMR); 1000 ft box for bulk installations

Product Highlights

Cat6e 600 MHz UTP cable, 4 pairs with spline, 23 AWG solid, riser-rated PVC jacket, 1000 ft box; supports gigabit Ethernet and CCTV/security applications.

Product Information

Standard Information

• Brand: WAVENET
• Manufacturer Part Number: CAT6E-600-RISER-1000-SPLINE-WHITE

Technical Specifications

• Brand: Wavenet
• MPN: CAT6E-600-RISER-1000-SPLINE-WHITE
• Alternate Part Number: 178129
• Model / Alternate Codes: 6E04URXX4, CAT6-600-RISER-1000-SPLINE-WHITE, CAT6600RISER1000SPLINEWHITE, CAT6E600RISER1000SPLINEWHITE, WRECAT6-600-RISER-1000-SPLINE-WHITE
• Frequency: 600 MHz
• Conductor: 23 AWG solid
• Pairs: 4 twisted pairs with spline
• Spline: Yes
• Shielding: Unshielded (UTP)
• Jacket Rating: Riser (CMR)
• Jacket Material: Flame-retardant PVC
• Length: 1000 ft
• Color: White
• Standards / Listings: TIA/EIA-568-C.2; IEC 61156
• Compliance: RoHS compliant
• Applications: Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T), ATM 155 Mbps, Token Ring 16 Mbps, CCTV/security
