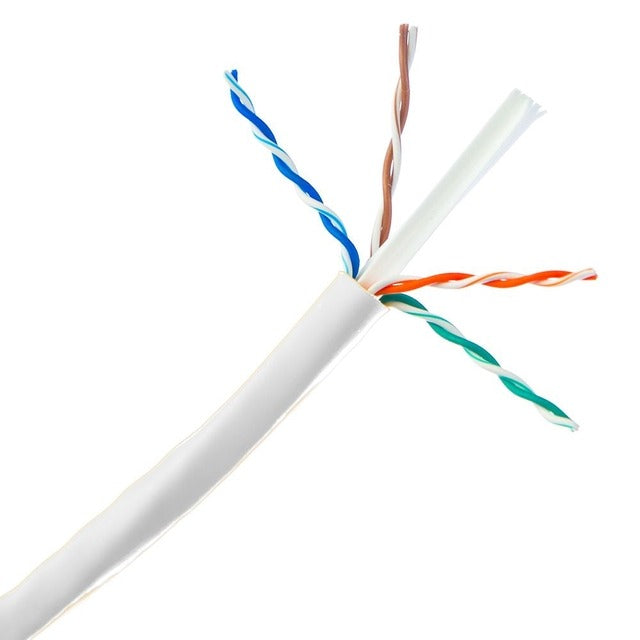

Wavenet 6e04urwh4n Cat 6e Ethernet Cable 1000 Ft White

Product Description

The WAVENET 6e04urwh4n is a Category 6e structured wiring cable built for high-throughput data and voice network installations. It is constructed with four pairs of solid bare copper conductors at 23 AWG, supporting bandwidth up to 600 MHz for demanding Ethernet applications. The cable ships on a 1000-foot reel and is jacketed in a white flame-retardant PVC rated for riser (CMR) use. Licensed electricians and low-voltage technicians install this cable in commercial, institutional, and multi-unit residential environments where signal integrity and code compliance are required.

This cable is suited for structured cabling runs in office buildings, schools, apartment complexes, and similar facilities where riser-rated pathways connect floors or equipment rooms to work area outlets. The 1000-foot reel length is standard for contractor-scale pulls, reducing splice points and simplifying large-scale horizontal and backbone cabling layouts. It supports Ethernet protocols requiring 600 MHz bandwidth, making it appropriate for high-speed data networks beyond standard Cat 6 performance thresholds.

Key Features

• 23 AWG solid bare copper conductors provide stable signal integrity across the full cable run
• 600 MHz bandwidth supports high-throughput Ethernet and data applications
• White flame-retardant PVC jacket rated for riser (CMR) installations
• 1000-foot reel simplifies large-scale pulls and reduces mid-run splices
• Meets UL, ETL, RoHS, and ANSI/TIA-568-C.2 standards for certified installations
• Operating temperature range from -20 degrees C to 75 degrees C for broad environmental compatibility

Compatibility

Designed as a riser-rated Category 6e structured cabling solution suitable for use with standard RJ-45 keystone jacks, patch panels, and network switches that accept 23 AWG 4-pair UTP cabling.

Installation Notes

This cable is installed by licensed electricians or certified low-voltage technicians following ANSI/TIA-568 structured cabling standards and applicable local electrical codes. De-energize any connected network equipment before terminating conductors at patch panels or keystone jacks. Use a punch-down tool rated for 110-style terminations and a cable pull lubricant approved for PVC jackets on long conduit runs. Riser-rated cable must be installed only in vertical shaft and floor-to-floor pathways as defined by the NEC; do not substitute it for plenum-rated cable in air-handling spaces.

Technical Specifications

• Category: Cat 6e
• Conductor Gauge: 23 AWG
• Conductor Material: Solid bare copper
• Conductor Configuration: 4 pair (8 conductors)
• Bandwidth: 600 MHz
• Jacket Material: Flame-retardant PVC
• Jacket Color: White
• Fire Rating: Riser (CMR)
• Cable Length: 1000 feet
• Operating Temperature: -20 degrees C to 75 degrees C
• Certifications: UL, ETL, RoHS, ANSI/TIA-568-C.2

Standard Information

• Brand: WAVENET
• Manufacturer Part Number: 6e04urwh4n
