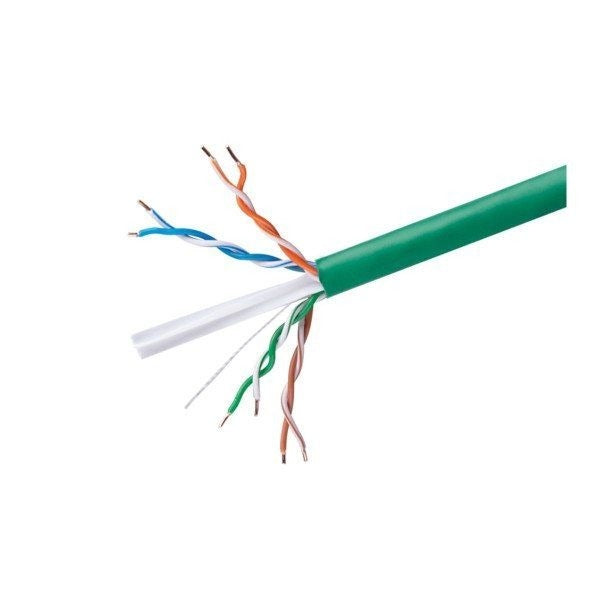

Wavenet 6e04urgn4n Cat 6e Ethernet Cable 1000 Ft Cmr Green

Product Description

The WAVENET 6e04urgn4n is a Category 6e unshielded twisted pair (UTP) Ethernet cable designed for structured wiring in commercial and residential riser applications. It is constructed with four pairs of solid 23 AWG bare copper conductors and delivers bandwidth up to 600 MHz, supporting gigabit and high-speed Ethernet systems. The cable comes in a pull-box format with a 1000-foot length, enclosed in a flame-retardant green PVC jacket rated CMR for riser installation. Licensed electricians and low-voltage cabling technicians are the primary installers for this type of cable.

This cable is suited for commercial structured cabling environments where high-bandwidth backbone or horizontal runs are required. The riser-rated CMR jacket qualifies it for installation in vertical shaft spaces between floors, making it a practical choice for multi-story commercial or institutional buildings. The 1000-foot pull box simplifies continuous runs on large jobs and reduces the need for mid-run splices. Its operating temperature range of -20 degrees C to 75 degrees C supports performance across a broad range of installation environments.

Key Features

• Four pairs of solid 23 AWG bare copper conductors for reliable signal integrity
• Bandwidth capacity up to 600 MHz supports gigabit and high-speed Ethernet
• CMR riser-rated flame-retardant PVC jacket approved for vertical shaft runs
• 1000-foot pull-box format reduces waste and simplifies large structured cabling jobs
• Green jacket color aids in cable identification within high-density installations
• Operating temperature range from -20 degrees C to 75 degrees C

Compatibility

Designed as an OEM-style structured cabling solution compatible with standard Cat 6e patch panels, keystone jacks, and RJ45 terminations used in commercial and residential Ethernet installations.

Installation Notes

Installation should be performed by a licensed electrician or qualified low-voltage cabling technician in accordance with NEC Article 800 requirements for communications wiring. De-energize and lock out any related network or power equipment before pulling cable through conduit or raceways. Maintain minimum bend radius during installation to avoid degrading cable performance. Do not exceed the cable pulling tension rating or kink the jacket during installation.

Technical Specifications

• Cable Category: Cat 6e
• Conductor: Solid 23 AWG bare copper
• Pairs: 4
• Bandwidth: 600 MHz
• Jacket Material: PVC
• Jacket Color: Green
• CMR Rating: Riser (CMR)
• Cable Length: 1000 feet
• Operating Temperature: -20 degrees C to 75 degrees C
• Format: Pull box

Standard Information

• Brand: WAVENET
• Manufacturer Part Number: 6e04urgn4n
