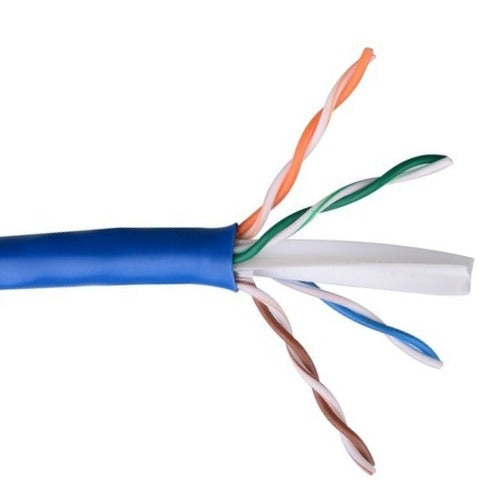

Wavenet 6e04urbl4n Cat 6e Bulk Cable 1000 Ft Blue Riser

Product Description

The WAVENET 6e04urbl4n is a Cat 6e bulk networking cable designed for structured wiring installations in residential, commercial, and multi-unit buildings. It features 23 AWG solid bare copper conductors arranged in four pairs, delivering bandwidth up to 600 MHz with low attenuation. The blue PVC outer jacket carries a CMR riser rating and is made with HDPE insulation for dielectric performance. The cable ships on a 1000-foot reel, which reduces handling time on large pulls. It is listed under UL ETL and RoHS compliance and meets ANSI/TIA 568-C.2 specifications. Licensed electricians and low-voltage cabling contractors are the primary installers for this product.

This cable is suited for horizontal and riser runs in structured cabling systems supporting 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet standards. The 1000-foot format is practical for new construction, retrofit wiring, and MDU deployments where long continuous runs reduce splice points and maintain signal integrity. The CMR jacket rating qualifies the cable for vertical runs between floors in commercial and residential buildings where riser-rated materials are required by code.

Key Features

• 23 AWG solid bare copper conductors for consistent signal transmission
• Bandwidth rated up to 600 MHz with low attenuation characteristics
• Blue CMR-rated PVC jacket meets riser installation requirements
• HDPE insulation on individual conductors
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet standards
• UL ETL listed, RoHS compliant, and meets ANSI/TIA 568-C.2
• 1000-foot reel format for efficient large-scale pulls

Compatibility

Designed as a CMR-rated Cat 6e riser cable for use with standard RJ-45 termination hardware, patch panels, and keystone jacks compatible with 23 AWG four-pair structured cabling.

Installation Notes

Installation should be performed by a licensed low-voltage contractor or electrician in accordance with NEC Article 800 and local building codes. De-energize any adjacent circuits and follow building fire-stop requirements when penetrating floors or fire-rated walls. Avoid exceeding minimum bend radius and pulling tension limits during the cable pull to prevent conductor damage. Terminate both ends with rated Cat 6e-compatible hardware to maintain channel performance.

Technical Specifications

• Cable Category: Cat 6e
• Conductor Gauge: 23 AWG
• Conductor Material: Solid bare copper
• Number of Pairs: 4
• Bandwidth: 600 MHz
• Jacket Material: PVC
• Jacket Color: Blue
• Jacket Rating: CMR Riser
• Insulation Material: HDPE
• Cable Length: 1000 feet
• Ethernet Standards: 10BASE-T, 100BASE-TX, 1000BASE-T
• Temperature Rating: -20 degrees F to 75 degrees F
• Certifications: UL ETL, RoHS, ANSI/TIA 568-C.2

Standard Information

• Brand: WAVENET
• Manufacturer Part Number: 6e04urbl4n
