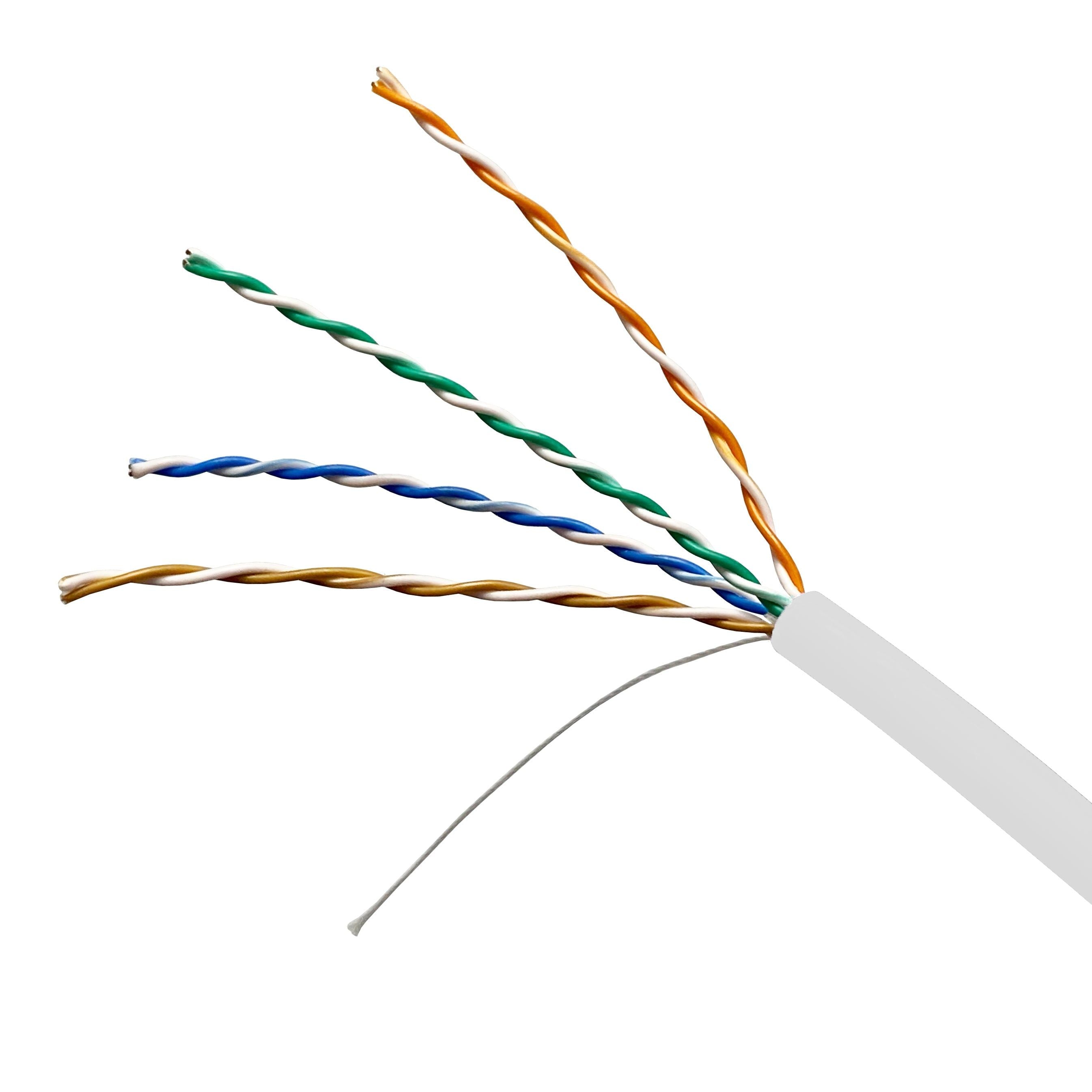

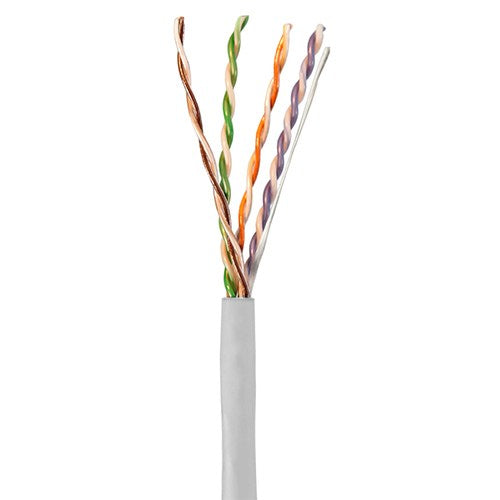

Wavenet 5E04URWH4 CAT5e 24/4 Pair Cable 1000 feet (304.8m) Reel

Product Description

The WAVENET 5E04URWH4 is a CAT5e 24/4 Pair Cable, unshielded, with a Riser CMR. This network cable provides clear connectivity and optimal performance. It is fully compatible with network devices. The cable features flame retardant properties for reliability and productivity. This cable comes in a 1000' (304.8m) reel.

• Category 5e cable type for optimal performance
• Flame Retardant for better reliability
• Fully compatible with network devices

Product Highlights

This network cable provides clear connectivity and optimal performance. It is fully compatible with network devices.

Product Information

Standard Information

• Brand: WAVENET
• Manufacturer Part Number: 5E04URWH4
• Country of Origin: Korea

Technical Specifications

• Color: White
• Features: Flame Retardant,Minimized Near-End Crosstalk (NEXT),Power Sum Attenuation to Crosstalk Ratio (PSACR),Power-sum Near End Crosstalk (PSNEXT)
• Shielding: No
• Brand Name: Wavenet
• Jacket Type: Riser
• Cable Length: 1000'
• Manufacturer: Wavenet, Inc.
• Product Name: Cat.5e 350MHz UTP Riser (CMR) Cable
• Product Type: Network Cable
• ADI Part Number: 50-5E04URWH4
• Conductor Count: 4
• Jacket Material: PVC
• Number of Pairs: 4
• Device Supported: Network Device
• Data Transfer Rate: 1 Gbit/s
• American Wire Gauge: 24AWG
• Insulation Material: PE
• Number of Conductors: 8
• Environmentally Friendly: Yes
• Manufacturer Part Number: 5E04URWH4
• Environmental Certification: ROHS
• Cable Rating: Riser
• Material: Annealed Copper
• Conductors: 4 Pairs 24 AWG SOLID (8 Total Conductors) UTP
• Jacket: Flame Retardant PVC (Polyvinyl Chloride)
• Overall Nominal Diameter: 0.200"
• Ratings: CMR
• Operating Temperature Range: -20°C To +75°C
• Applicable Standards: ETL Listed CMR, C(ETL) Listed CMG FT4, ETL Verified to TIA-568-C.2, ISO/IEC 11801, RoHS Compliant, ATM 155 Mbps, Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4, 1000 Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3), 16 Mbps Token Ring™ (IEEE 802.5)
• Pair Color Code Chart: Pair 1: White / Blue, Pair 2: White / Orange, Pair 3: White / Green, Pair 4: White / Brown
