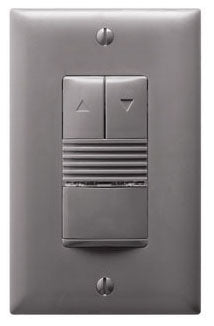

Wattstopper PW-311-G 0-10V Passive Infrared Wall Switch Occupancy Sensor 120/277V

Product Description

The Wattstopper PW-311-G is a 0-10V passive infrared wall switch occupancy sensor designed for 120/277V systems. This sensor is suitable for applications in small offices and break rooms.

• Multi-way type sensor with a size of 2.73 inch length by 1.75 inch width by 1.81 inch depth.
• Provides UL, CUL, and NEC approval for safety and compliance.
• Features IR range coverage of 525 square feet.

Product Highlights

The sensor can control lighting loads including LEDs and has various operational modes for convenience.

Product Information

Standard Information

• Manufacturer: Wattstopper / On-Q
• Model: PW-311

Technical Specifications

• Voltage Rating: 120 to 277 Volt AC 50/60 Hertz, 0 to 10 Volt DC (Dimming LED)
• Load Type: Ballast, E-Ballast, LED, Tungsten, Dimming LED
• Load Rating: 0 to 1000 Watt at 120 Volt AC, 0 to 1200 Watt at 277 Volt AC
• Time Delay: 5 to 30 minutes
• Area Coverage: 35 foot by 30 foot for major motion, 20 foot by 15 foot for minor motion
• Approval: UL, CUL, NEC
• Application: Small Office, Small Conference/Lunch/Break Room
