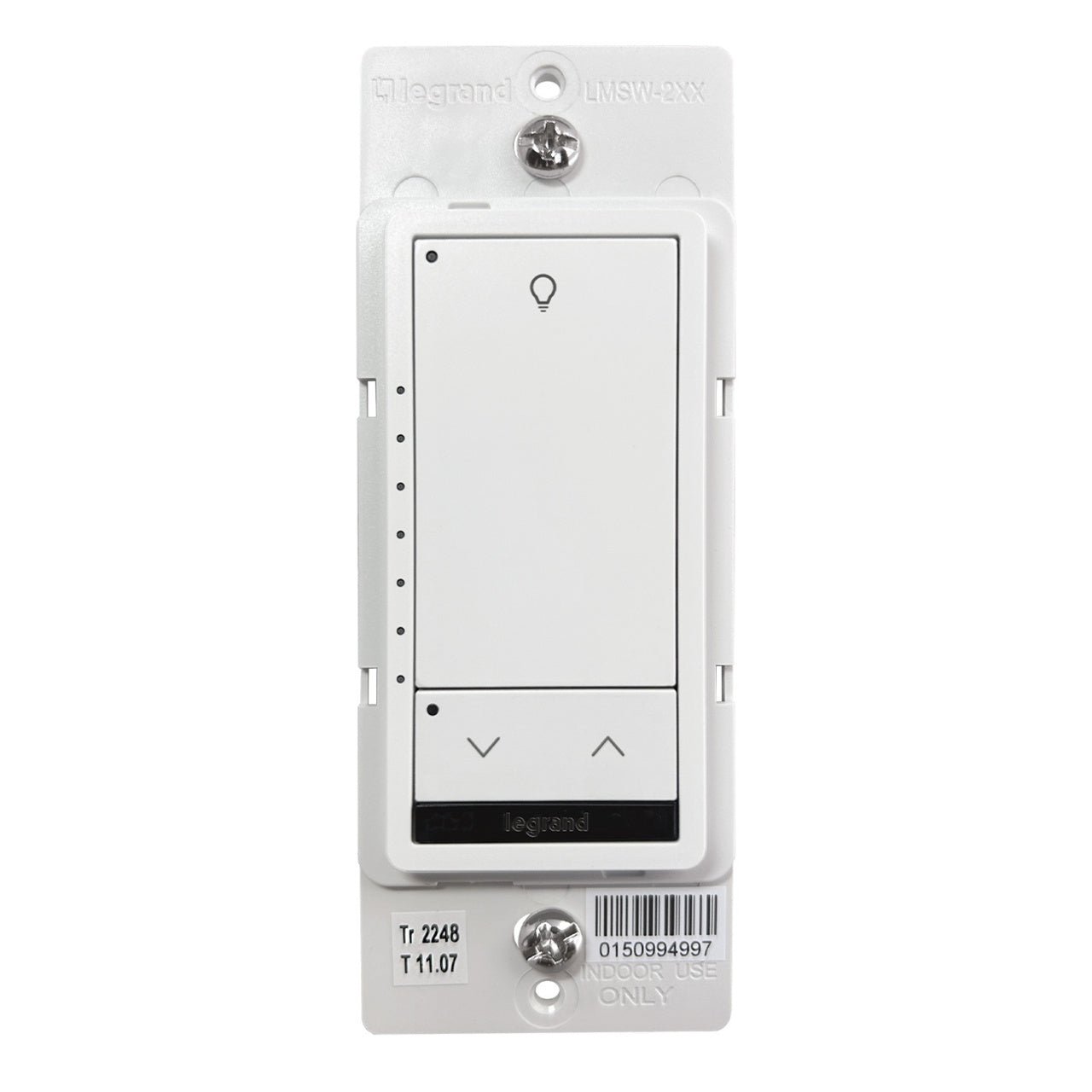

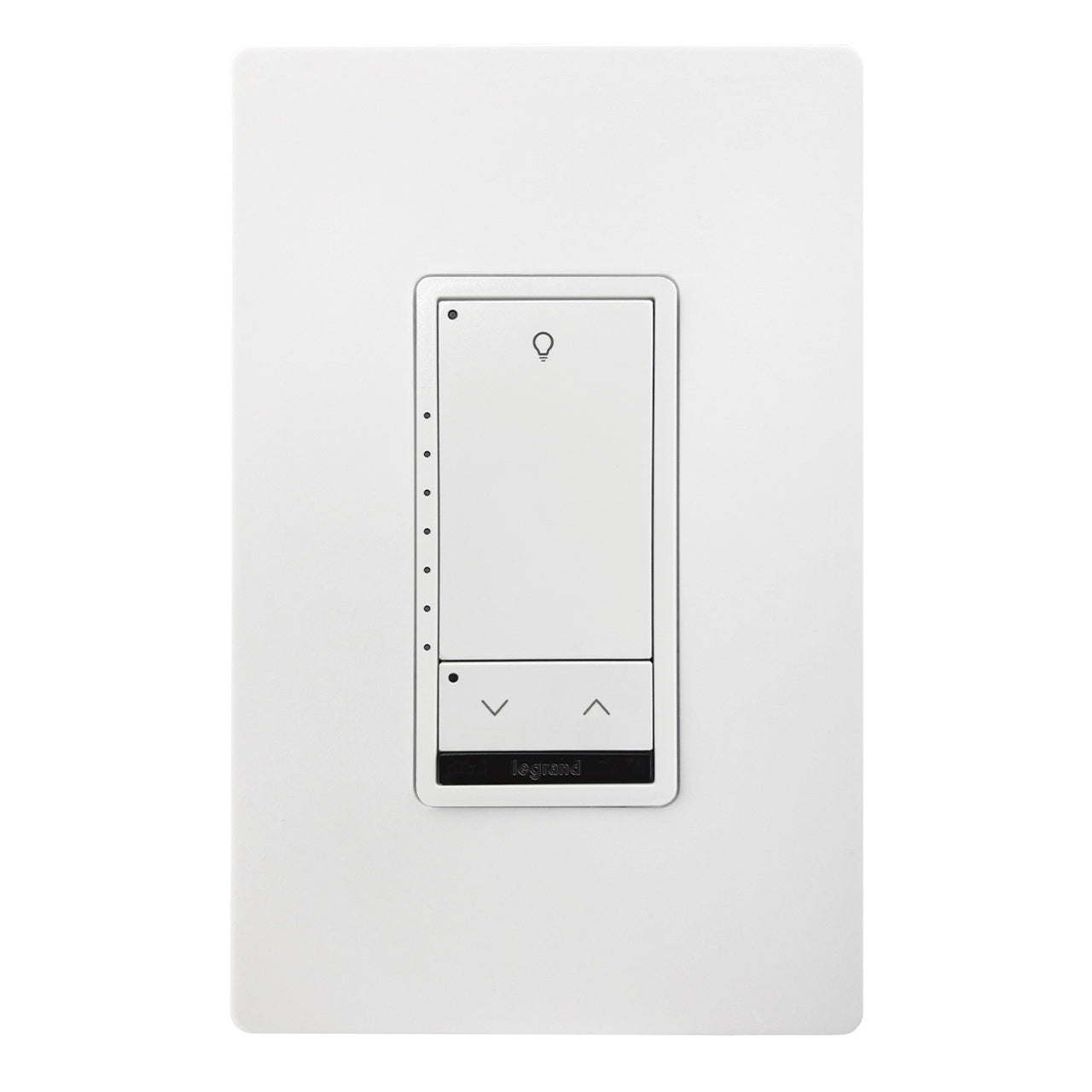

Wattstopper LMSW-211-W DLM wired standard switch 1B 1R 24 VDC (1-Gang)

Product Description

The Wattstopper LMSW-211-W is a programmable low-voltage DLM wired switch that provides manual on/off, dimming, and scene control for loads connected to DLM room controllers. It operates at 24 VDC, mounts to a J-box as a single-gang decorator device, and uses an RJ-45 plug-in connection on a free-topology Category 5e DLM network. The switch includes an IR transceiver, software-lockable configuration, LED status indicator, and supports multi-way control.

• Programmable low-voltage switch for manual on/off, dimming, and scene control; compatible with DLM room controllers; input 24 VDC.
• Infrared transceiver for wireless configuration and software-lockable configuration button accessible without faceplate removal; LED status indicator included.
• RJ-45 plug-in connection on free-topology Category 5e DLM network; supports multi-way control; single-gang J-box mount; ABS matte construction.

Product Highlights

Single-gang 1-button/1-rocker DLM wired switch, 24 VDC input, RJ-45 connection.

Product Information

Standard Information

• Brand: WATTSTOPPER
• Manufacturer Part Number: LMSW-211-W
• Country of Origin: China

Technical Specifications

• Brand: Wattstopper
• Manufacturer Part Number: LMSW-211-W
• Product Series: LMSW
• Type: Switch
• Input Voltage: 24 VDC
• Wattage: 0.12 W
• Current Draw: 5 mA
• Number of Buttons: 1
• Number of Rockers: 1
• Number of Switches: 2
• Number of Gangs: 1
• Material: ABS
• Finish: Matte
• Mounting Type: J-Box
• Connection Type: RJ-45
• Topology: Free Topology (Category 5e DLM local network)
• Compatibility: DLM Wired
• Application Sector: Commercial
• Indoor/Outdoor: Indoor
• Location Rating: Dry
• Operating Temperature: 0 to 55 °C
• Operating Humidity: 5-95% RH (Non-Condensing)
• Storage Temperature: −25 to 80 °C (23 to 176 °F)
• Dimensions: 4.1 in H x 1.6 in W x 1.6 in D
• Weight: 0.1 lb
• Standards / Certifications: UL, cUL, FCC part 15, RoHS
• Engraving Type: Icon
• Seismic Tested: No
• Has Battery: No
• Product Has Potential to Contribute to LEED: Yes
• UPC: 754182948529
