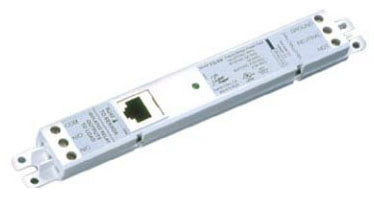

Wattstopper FS-PP Fixture Power Pack With No/Nc Relay

Product Description

The Wattstopper FS-PP-V2 Fixture Power Pack is designed with a No/Nc relay and RJ45 receptacle for efficient light control in low voltage systems. This power pack operates on multiple input voltages including one hundred twenty, two hundred seventy-seven, and three hundred forty-seven volts AC, making it versatile for various applications. It is suitable for use with low voltage fixture integrated sensors.

• Low voltage operation with multiple input voltage options
• Compact size with specific dimensions for easy installation
• Meets UL and CUL approval standards for safety

Product Highlights

This power pack supports a wide range of voltages and comes pre-approved for safe use. It features an integrated relay for optimal performance in lighting systems.

Product Information

Standard Information

• Manufacturer: Wattstopper / On-Q
• Brand: Wattstopper / On-Q

Technical Specifications

• Catalog Number: FS-PP V2
• Input Voltage: 120/277/347 VAC
• Frequency Rating: 60 Hz
• Output Voltage: 24 VDC
• Output Current: 70 Milliampere
• Size: 0.87 Inch W x 1 Inch D x 7.5 Inch H
• Operating Temperature: 32 to 131 Deg F
• Approval: UL, CUL
• Used On: Low Voltage Fixture Sensor
