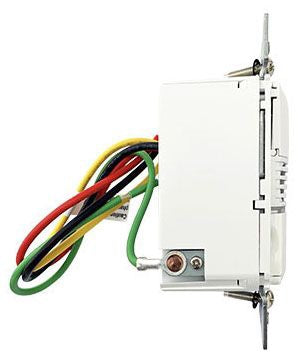

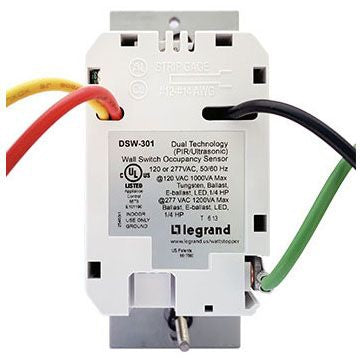

Wattstopper DSW-301-W WATT DSW-301-W DUAL TECH OCC/VAC

Product Description

The Wattstopper DSW-301-W is a Wall Switch Occupancy Sensor that uses dual technology including Passive Infrared and Ultrasonic sensors. This device is designed to help automate lighting in your workspace. Operating on multiple voltage ratings of 120, 240, and 277 Volt AC, this occupancy sensor can manage a load of up to 1000 Watt at 120 Volt AC and 1200 Watt at 240/277 Volt AC.

• Passive Infrared and Ultrasonic Technology
• Operates at 120/240/277 Volt AC
• Load Capacity of up to 1000 Watt

Product Highlights

This sensor is suitable for various applications such as small offices, conference rooms, and classrooms. The sensor offers a wide area coverage of up to thirty-five feet by thirty feet for major motion detection, and up to fifteen feet by fifteen feet for minor motion detection. It features a time delay setting adjustable between five, fifteen, and thirty minutes.

Product Information

Standard Information

• Brand: Wattstopper
• UPC: 75418293544

Technical Specifications

• Voltage Rating: 120/240/277 Volt AC
• Load Type: Ballast/Tungsten/LED
• Load Rating: 1000 Watt at 120 Volt AC
• Load Rating: 1200 Watt at 240/277 Volt AC
• Area Coverage: 35 Foot x 30 Foot PIR
• Area Coverage: 20 Foot x 20 Foot Ultrasonic (Major Motion)
• Time Delay: 5/15/30 Minutes
• Wall Plate Type: Decorator
