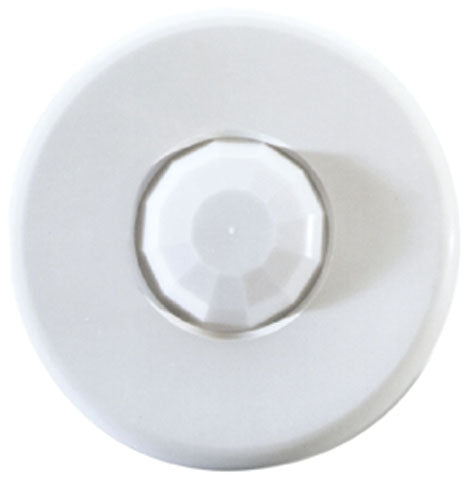

Wattstopper CI-24-1 Passive Infrared Ceiling Occupancy Sensor 24 Vdc/Ac Isolated Relay

Product Description

The Wattstopper CI-24-1 is a passive infrared ceiling occupancy sensor designed to operate at 24 Vdc/Ac. This device features an isolated relay ensuring effective use in various applications. The compact sensor has a diameter of three point three inches and a depth of two point two inches, making it suitable for different mounting environments.

• Isolated relay type
• 360-degree field of view
• Suitable for building automation systems

Product Highlights

This ceiling-mounted sensor is designed to enhance energy efficiency by detecting occupancy and thereby controlling lighting and HVAC systems accordingly.

Product Information

Standard Information

• Manufacturer: Wattstopper / On-Q
• Brand: Wattstopper/On-Q

Technical Specifications

• UPC: 75418228703
• Finish: White
• Mounting: Ceiling
• Size: 3.3 inches diameter x 2.2 inches depth
• Application: Building Automation System
• Approval: CUL
• Area Coverage: 500 square feet
• Field of View: 360 degrees
• Time Delay: 30 seconds to 30 minutes
• Terminal Type: 5-Wire Lead
