Product Description

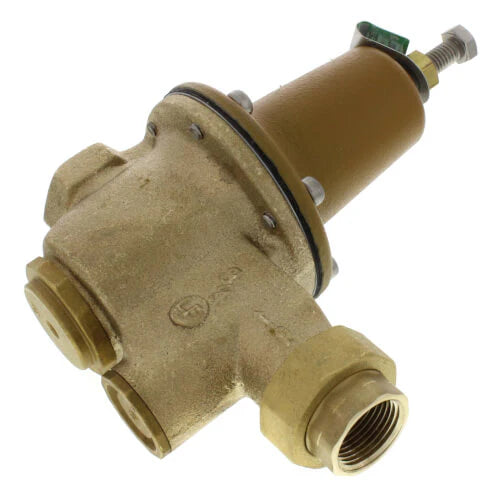

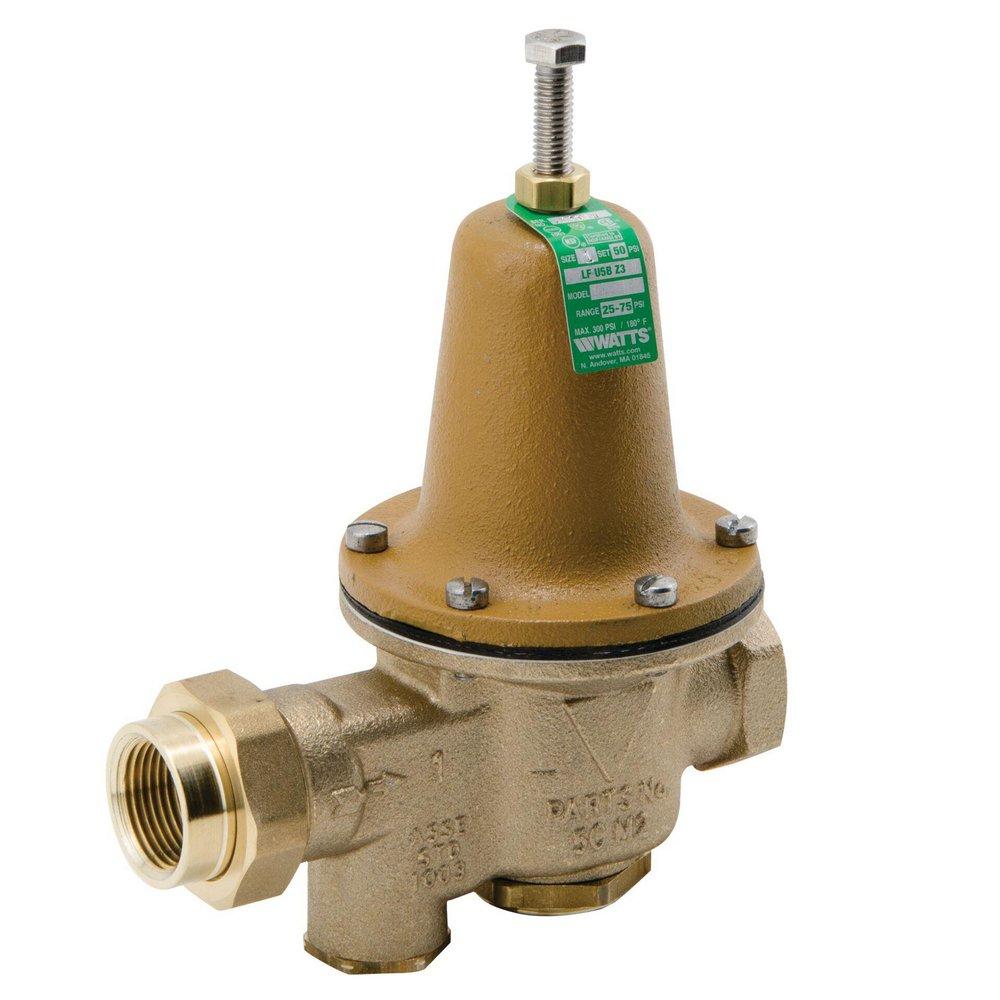

The Watts Series LFU5B-Z3 Pressure Reducing Valve, MPN 0009154, is essential for managing water pressure in both residential and commercial plumbing systems. This 1-inch copper silicon alloy valve helps reduce incoming water pressure to protect system components and decrease water consumption.
- Lead-free construction
- Serviceable in-line without special tools
- Integrated stainless steel strainer
Product Highlights
This pressure reducing valve features a sealed spring cage with stainless steel cage screws and an integral strainer that can be removed for cleaning. Designed to handle up to 300 psi of incoming water pressure, it allows adjustment between 25 to 75 psi, with a standard setting of 50 psi. The valve is easily serviceable without needing to be removed from the line, and its bypass feature controls thermal expansion pressure.
Product Information
Standard Information
-
Brand: Watts
-
MPN: 0009154
-
Model: LFU5B-Z3
-
UPC: 098268327991
Technical Specifications
-
Connection Size: 1 inch
-
Connection Type: Female Union x FNPT
-
Material: Cast Copper Silicon Alloy
-
Pressure Rating: 25 - 75 psi
-
Temperature Rating: 33 - 160 degrees Fahrenheit
-
Body Material: Bronze
-
Max Inlet Pressure: 300 psi
-
Item Name: Water Pressure Reducing Valve
-
Installation Instructions: Download
