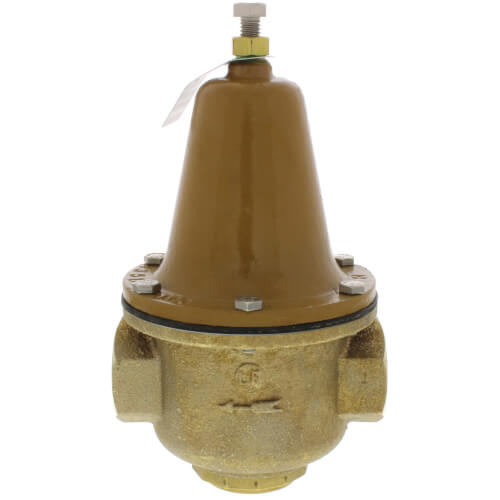

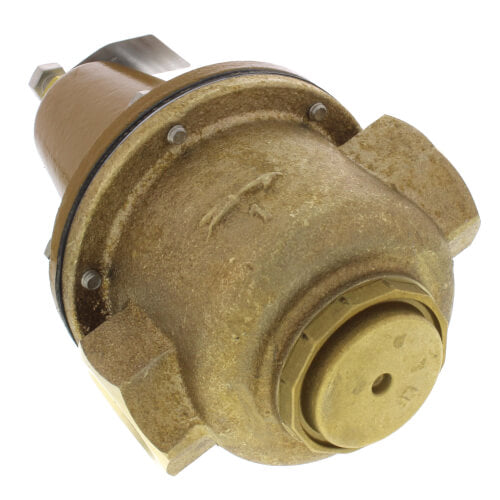

Watts Watts-0298533 1 inches lf223 lead free high capacity pressure valve

Product Description

The WATTS WATTS-0298533 LF223 Lead Free High Capacity Water Pressure Reducing Valve is designed for commercial, industrial, and institutional applications. It effectively reduces incoming water pressure to protect plumbing systems and conserve water. Featuring a lead-free brass body, an enlarged diaphragm, and a super capacity seat orifice, this valve ensures accurate pressure control. It is suitable for water systems with a maximum working pressure of 300 psi and offers an adjustable reduced pressure range of 25 to 75 psi.

• Lead-free brass body construction for safe water applications.
• Enlarged diaphragm and super capacity seat orifice for high flow performance.
• Adjustable reduced pressure range from 25 to 75 psi, with a 300 psi maximum inlet pressure.

Product Highlights

This valve provides reliable water pressure reduction and system protection in various applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: WATTS-0298533
• Country of Origin: Domestic

Technical Specifications

• Size: 1 inch
• Inlet Type: FNPT
• Outlet Type: FNPT
• Lead Free: Yes
• Material: Brass
• Reduced Pressure Range: 25 to 75 psi
• Application: Heating
• Max Inlet Pressure: 300 PSI
• Temperature Range: 33°F to 160°F
• Media: Water
• O-Ring/Diaphragm Material: Buna-N O-Ring, Seat Gasket/Reinforced Buna-N Diaphragm
• Standard Pressure Setting: 50 psi (345 kPa)
• Lead Content: Less than 0.25% by weight (in wetted surface)
