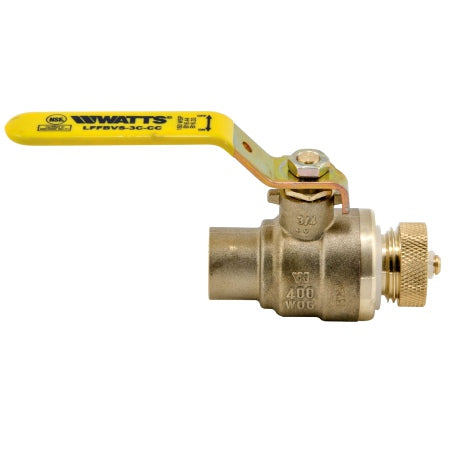

Watts Watts-0123477 LFFBV-3C-CC 3/4 in 2-piece ball valve with cap and chain (3/4 in) LFFBVS-3C-CC

Product Description

Watts WATTS-0123477 is a 3/4 inch two-piece full-port lead-free brass ball valve with cap and chain intended for commercial and industrial liquid and gas service. It features socket (solder) end connections, a bottom-loaded blowout-proof stem, virgin PTFE seats and thrust washer, and a chrome-plated lead-free brass ball. Pressure ratings are 600 psi WOG and 150 psi WSP, with a temperature range of -40°F to 400°F (-40°C to 204°C).

• Lead-free copper silicon alloy brass body, full-port design, socket (solder) end connections
• Bottom-loaded blowout-proof stem, virgin PTFE seats and thrust washer, fluorocarbon stem O-ring
• Chrome-plated lead-free brass ball, steel handle, includes cap and chain and lead-free brass adapter

Product Highlights

3/4 in lead-free full-port ball valve for commercial/industrial washdown and fluid service; 600 psi WOG, 150 psi WSP; certified to NSF-61/G.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: WATTS-0123477

Technical Specifications

• Brand: Watts
• Manufacturer: Watts Regulator Co.
• MPN: WATTS-0123477
• Manufacturer Part Number: 0123477
• Model/Series: LFFBV-3C-CC
• Replacement MPN: LFFBVS-3C-CC
• Product Type: Full port ball valve with cap and chain
• Size: 3/4 in
• End Connection: Socket (solder)
• Body Material: Lead-free copper silicon alloy brass
• Port: Full port
• Stem: Bottom-loaded, blowout-proof
• Seat Material: Virgin PTFE
• Thrust Washer Material: Virgin PTFE
• Stem O-ring: Fluorocarbon elastomer
• Ball Material/Finish: Chrome-plated lead-free brass
• Handle: Steel
• Accessories: Cap and chain, lead-free brass adapter, polypropylene tether
• Pressure Rating: 600 psi WOG; 150 psi WSP
• Temperature Range: -40°F to 400°F (-40°C to 204°C)
• Certifications: Certified to NSF-61/G (ANSI/NSF 61-G)
