Watts Watts-0123476 Full Port Ball Valve Cap and Chain (1/2 inch) LFFBVS-3C-CC

Product Description

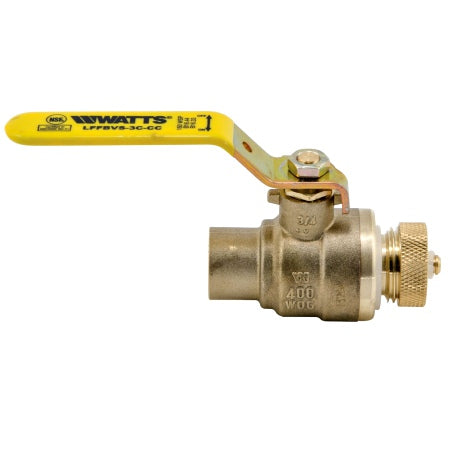

Watts WATTS-0123476 is a lead free full port brass ball valve cap and chain intended for commercial and industrial wash down applications. The series includes a 3/4 inch hose end and 1/2 inch threaded inlet/outlet connections, a chrome plated brass ball with brass cap and polypropylene tether, and virgin PTFE seats and packing. The valve features a bottom loaded blowout-proof stem and is certified to NSF-61/G.

• Pressure rating: 400 psi (28 bar) WOG (non-shock); operating temperature -40°F to 400°F (-40°C to 204°C)
• Lead free copper silicon alloy brass body, chrome plated brass ball, virgin PTFE seats, packing, and thrust washer
• Bottom loaded blowout-proof stem, adjustable stem packing gland, fluorocarbon elastomer stem O-ring, polypropylene tether chain

Product Highlights

Lead free full port ball valve cap with 1/2 inch threaded connections and 3/4 inch hose end, virgin PTFE sealing components, bottom-loaded blowout-proof stem, certified to NSF-61/G

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: WATTS-0123476

Technical Specifications

• Brand: Watts
• Manufacturer Part Number: WATTS-0123476
• Series: LFFBV-3C-CC / LFFBVS-3C-CC
• Product Name: Full Port Ball Valve Cap and Chain
• Ball Material: Chrome plated brass
• Body Material: Lead free copper silicon alloy brass
• Connection Size: 1/2 inch
• Hose End Size: 3/4 inch
• Outlet Connection Type: Male threaded
• Temperature Range: -40°F to 400°F (-40°C to 204°C)
• Pressure Rating: 400 psi (28 bar) WOG (non-shock)
• Seat/Stem/Thrust Washer Material: Virgin PTFE
• Stem Type: Bottom loaded blowout-proof stem
• Packing: Adjustable stem packing gland; virgin PTFE packing; fluorocarbon elastomer stem O-ring
• Chain/Tether Material: Polypropylene tether (chain)
• Certifications: Certified to NSF-61/G
