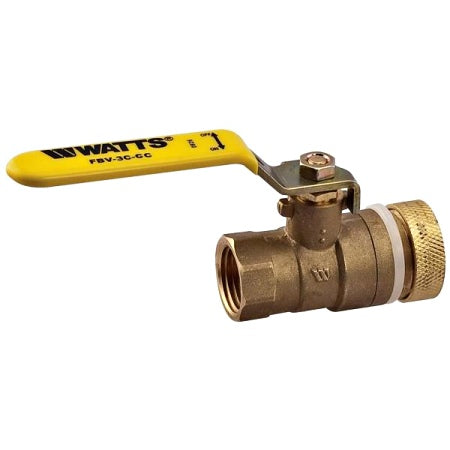

Watts Watts-0123474 LFFBV-3C 2-piece full port ball valve 1/2 x 3/4 in

Product Description

Watts WATTS-0123474 is a LFFBV-3C 2-piece full-port ball valve intended for commercial and industrial wash-down applications that require a 3/4 in hose connection. The valve features a forged brass body, chrome-plated brass ball, bottom-loaded blow-out proof stem, virgin PTFE seats and adjustable stem packing. It has threaded end connections, nominal size 1/2 x 3/4 in, rated for water service to 400 psi and temperatures from -40 to 400°F; wetted surfaces contain less than 0.25% lead by weight.

• Bottom-loaded blow-out proof stem with adjustable stem packing gland nut
• Virgin PTFE seats and fluorocarbon elastomer stem O-ring for sealing
• Full-port chrome-plated brass ball with brass cap and polypropylene tether; threaded end connections

Product Highlights

2-piece full-port ball valve; forged brass body; 1/2 x 3/4 in thread-to-hose connection; rated 400 psi; -40 to 400°F; wetted surfaces <0.25% lead; NSF-61/G certification

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: WATTS-0123474

Technical Specifications

• Brand: Watts
• MPN: WATTS-0123474
• Series: LFFBV-3C
• Model Number: 0123474
• UPC: 098268696103
• Type: 2-piece ball valve
• Port Type: Full
• Nominal Size: 1/2 x 3/4 in
• End Style: Thread x Hose
• Inlet to Outlet Length: 2-5/8 in
• Top to Inlet Center: 1-13/16 in
• Body Material: Forged brass
• Ball Material: Chrome plated brass
• Trim Material: Brass stem
• Softgoods Material: Virgin PTFE / fluorocarbon elastomer
• Stem O-ring Material: Fluorocarbon elastomer
• Packing: Adjustable stem packing gland nut; virgin PTFE packing
• Pressure Rating: 400 psi
• Temperature Rating: -40 to 400 deg F
• Media: Water
• Includes: Brass cap and polypropylene tether (chain)
• Certifications: NSF-61/G
• Thread Type: NPT
• Inlet Connection Type: Female threaded
• Outlet Connection Type: Hose (male threaded adapter where applicable)
