Watts Watts-0009329 LF25AUB-HP-Z3 Pressure Reducing Valve 1 in FNPT Union x FNPT

Product Description

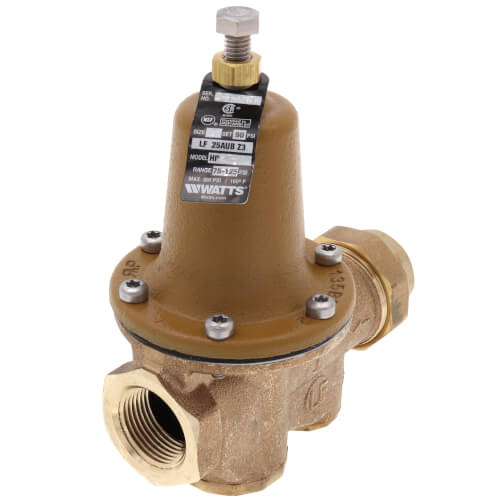

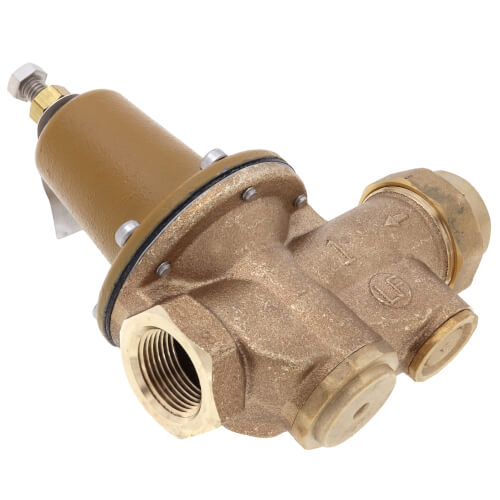

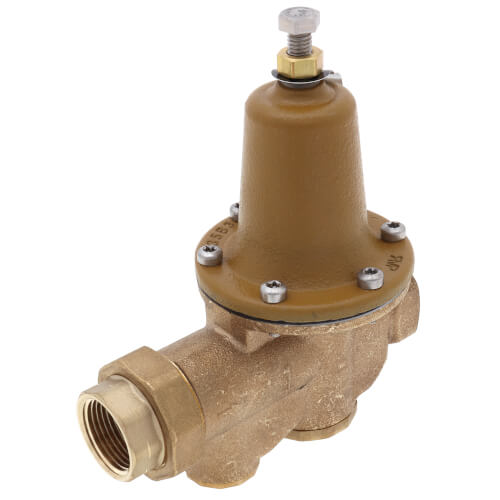

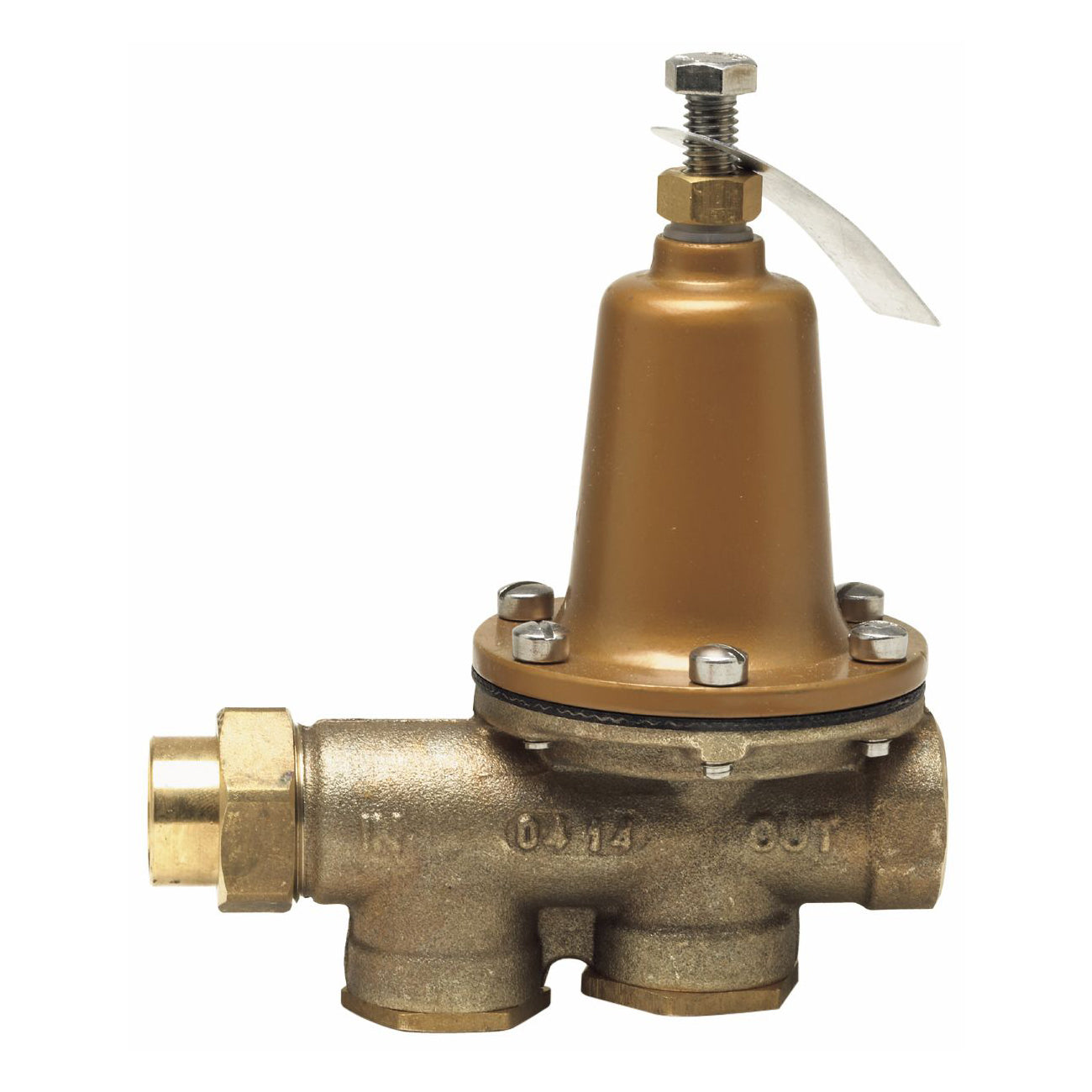

Watts WATTS-0009329 is a LF25AUB-HP-Z3 1-inch lead-free pressure reducing valve that reduces incoming water pressure for commercial, industrial, and residential plumbing. It provides an adjustable 75 to 125 psi outlet range with a standard setting of 90 psi, FNPT union inlet by FNPT outlet connections, and a replaceable seat module with integral stainless steel strainer. The valve features a reinforced EPDM diaphragm, polymer seat, serviceable in-line construction, and a bypass to control thermal expansion; rated 33 to 160 deg F and max inlet pressure 300 psi.

• Lead-free brass body with union FNPT inlet x FNPT outlet and integral stainless steel strainer
• Adjustable outlet 75–125 psi (standard setting 90 psi); maximum inlet pressure 300 psi; temperature range 33–160 deg F
• Replaceable seat module, reinforced EPDM diaphragm and polymer seat; serviceable in-line with bypass for thermal expansion

Product Highlights

Adjustable 75–125 psi range; replaceable seat module; FNPT union inlet x FNPT outlet with stainless steel strainer

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: WATTS-0009329
• Country of Origin: US

Technical Specifications

• Brand: Watts
• Manufacturer Part Number: WATTS-0009329
• Model/Series: LF25AUB-HP-Z3
• Nominal Size: 1 in
• End Style: FNPT union inlet x FNPT outlet
• Pressure Range: 75 to 125 psi
• Standard Setting: 90 psi
• Maximum Inlet Pressure: 300 psi
• Maximum Pressure: 125 psi
• Temperature Range: 33 to 160 deg F
• Body Material: Lead-free brass
• Softgoods Material: Reinforced EPDM diaphragm; polymer seat
• Integral Strainer: Stainless steel
• Replaceable Seat Module: Yes
• Serviceable: In-line serviceable
• Bypass Feature: Controls thermal expansion pressure
• Inlet to Outlet Length: 6 in
• Top to Inlet Center: 8 in
• Weight: 6.5 lbs
• Media: Water
• Application: Commercial, industrial and residential
• Series: LF25AUB-HP-Z3, LF25AUB-Z3
• Country of Origin: US
• Standards and Approvals: ANSI A112.26.2; ASSE Standard 1003; CSA Standard B356; IAPMO Listed; MIL-V-18146B Type I; NSF Approved; Southern Standard Plumbing Code; PROP65
• Lead Free: Yes
