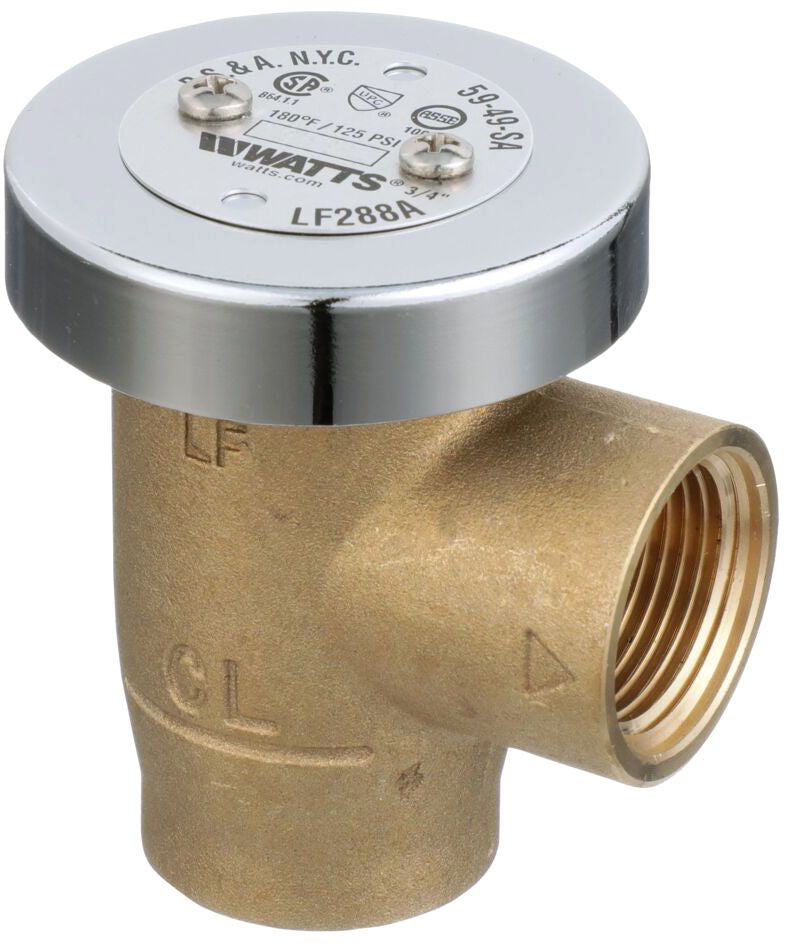

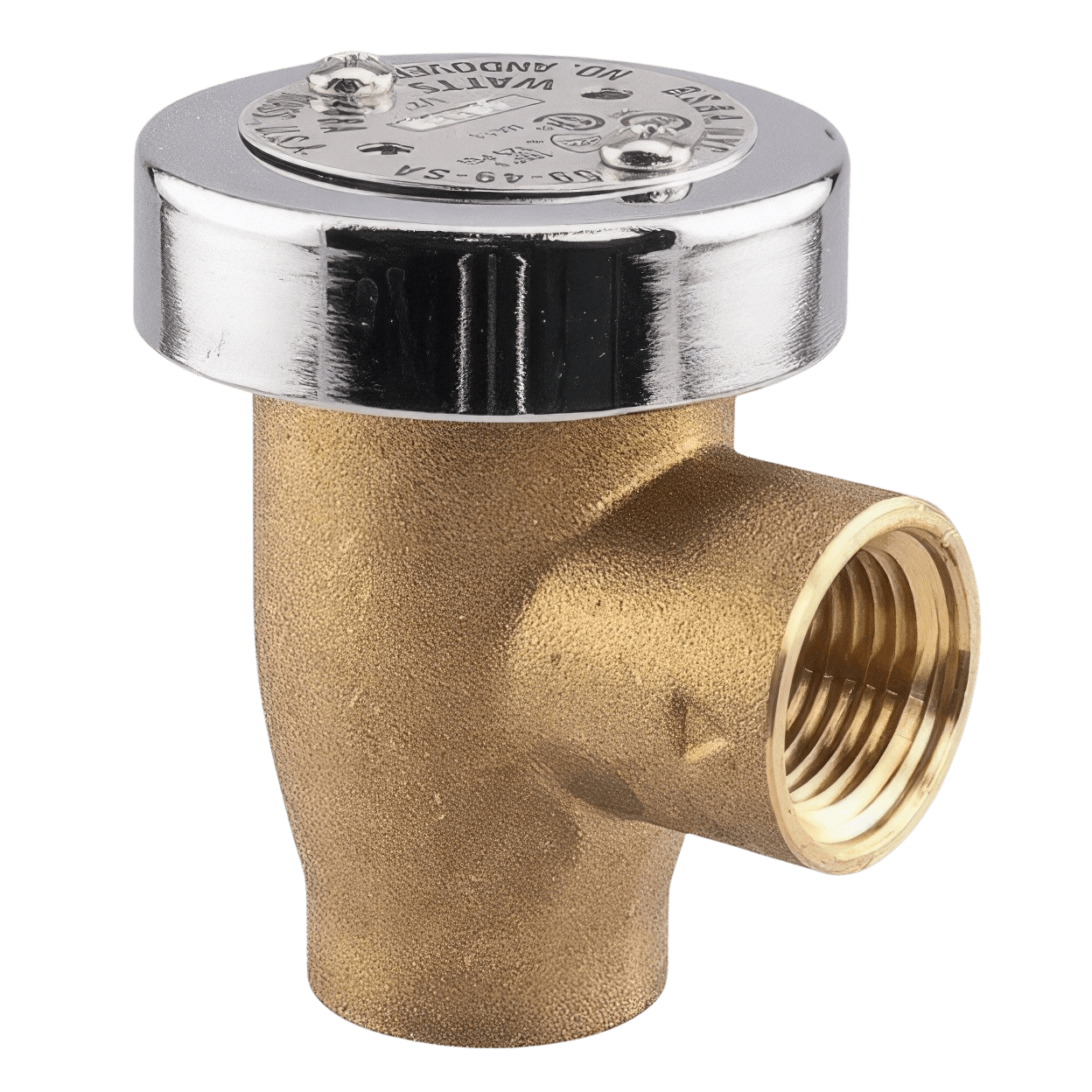

Watts Water Technologies LF288A-3/4 Vacuum Breaker 3/4 Inch

Product Description

The Watts Water Technologies LF288A-3/4 is a vacuum breaker designed for various plumbing applications. This anti-siphon valve features a nominal size of three-fourths of an inch and employs a female threaded end connection, making it suitable for both hot and cold water systems.

• Temperature rating up to 180 degrees Fahrenheit
• Pressure rating of 125 PSI
• Compliance with ASSE 1001 standards for safety

Product Highlights

This vacuum breaker prevents the backflow of contaminated water into the potable supply. It features a chemical-resistant silicone seat disc and a chrome hood. The atmospheric vent design helps avoid spillage, making it ideal for use in applications requiring a lead-free component.

Product Information

Standard Information

• Manufacturer: Watts Water Technologies
• UPC: 9826843425

Technical Specifications

• Type: Hot/Cold Water Anti-Siphon
• Nominal Size: 3/4 Inch
• End Connection: Female Threaded
• Body Material: Brass
• Disc Material: Silicone
• Temperature Rating: 180 Deg F
• Pressure Rating: 125 PSI
• Inclusions/Features: Chemical Resistant Silicone Seat Disc, Chrome Hood, Atmospheric Vent
• Applicable Standard: ASSE 1001, ANSI A112.1.1, NSF, UPC, CSA B64.1.1, CSA (Canada and US)
• Height: 3 Inch
• Overall Dimension: 3 Inch Height x 2-1/4 Inch Diameter
• Application: Bathroom Sink Equipment
