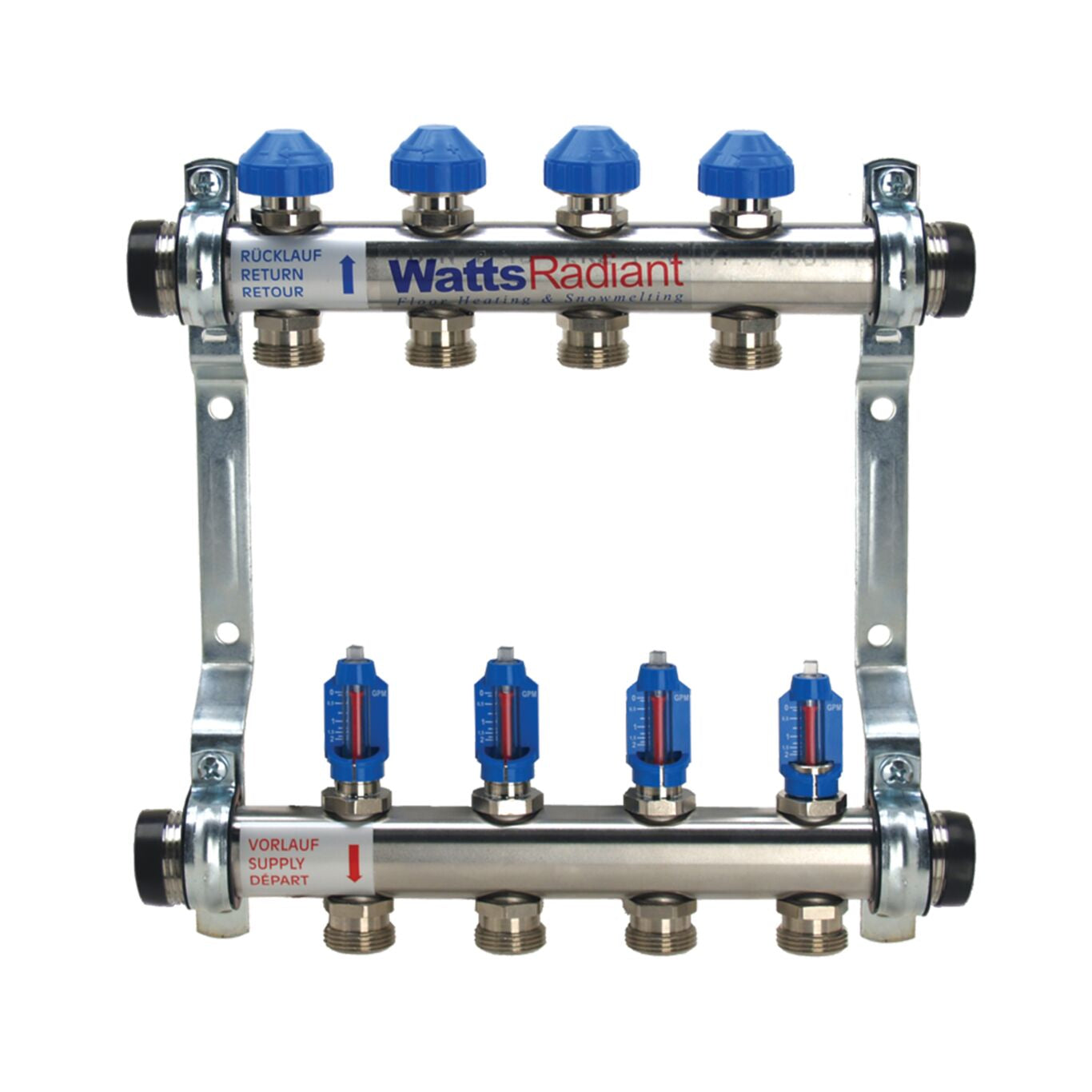

Watts Water Technologies 81001983 Flowmeter Manifold, 4 Branch

Product Description

The WATTS WATER TECHNOLOGIES 81001983 flowmeter manifold is constructed from heavy-walled 304 stainless steel and features flow balancing valves, circuit isolation valves, and flow meters. Designed with 4 outlets, this manifold is suitable for use with glycol solutions and water in commercial and residential applications. It has a maximum trunk flow of 12 GPM and a maximum circuit flow of 4 GPM.

• Individual circuit flow meter/balance valve
• Circuit isolation valve
• Mounted on bracket
• 12 gpm max trunk flow

Product Highlights

Stainless steel manifold with individual circuit flow meter and isolation valve, designed for efficient flow balancing and circuit control.

Product Information

Standard Information

• Brand: WATTS WATER TECHNOLOGIES
• Manufacturer Part Number: 81001983
• Country of Origin: Import

Technical Specifications

• Inlet Size: 1 in BSPT x 1 in MNPT
• Material: Stainless Steel
• Number of Outlets: 4
• Outlet Size: 1"
• Pressure Rating: 87 psi
• Temperature Rating: 167 deg F
• Application: Commercial, Residential
• Collection: Series D38SS
• End Connection 1: Male Threaded
• End Connection 2: Male Threaded
• End Connections: Male Threaded
• Fitting Size 1: 1 in
• Fitting Size 2: 1 in
• Flow Rate: 4 gpm
• Length: 12 in
• Maximum Temperature: 167
• Outlet Quantity: 4
• Pressure - Maximum: 87 psi
• Item: Flowmeter Manifold
• Body Material: Stainless Steel
• Branch Outlet Connection Size: 3/4"
• Branch Outlet Connection Type: Male Threaded
• Connection Type: MBSP
• For Fluid Type: Glycol Solutions, Water
• Inlet Connection Gender: Male
• Inlet Connection Size: 1"
• Inlet Connection Type: MBSP
• Manifold Material: Stainless Steel
• Manifold Material Grade: Grade 304
• Max. Operating Temp.: 167°F
• Max. Pressure: 87 psi
• Maximum Operating Pressure: 87 psi
• Maximum Operating Temperature: 167°F
• Maximum Trunk Flow Rate: 12 GPM
• Mfr. Series: D38SS Series
• Minimum Operating Temperature: 32°F
• Mount Type: Bracket
• Mounting Hole Dia.: 1/4"
• Mounting Hole Size: 1/4"
• Number Of Branches: 4
• Number Of Inlets: 1
• Trunk Dia.: 1"
• Trunk Inlet Connection Size: 1"
• Trunk Inlet Connection Type: Male Threaded
• Trunk Outlet Connection Size: 1"
• Trunk Outlet Connection Type: Male Threaded
• Trunk Outlet Type: Open
• With Valves: No
• Overall Height: 11 1/2"
• Overall Width: 2"
• Pipe Fitting Material: Stainless Steel
• Temp. Range: +32°F to +167°F
• Outlet Connection Gender: Male
• Outlet Connection Type: MBSP
