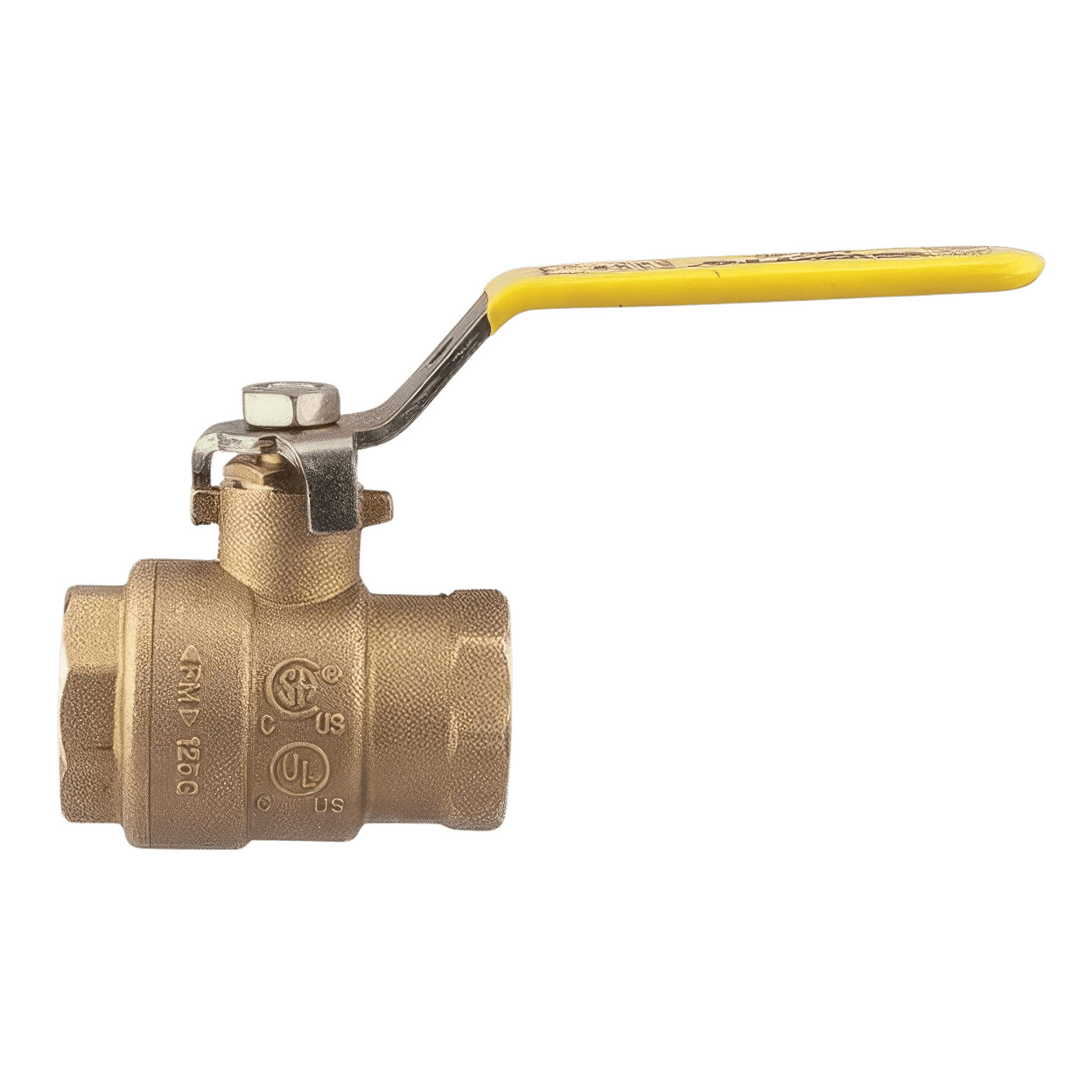

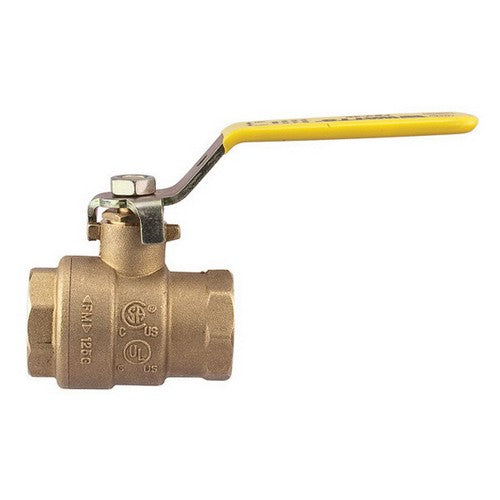

Watts Water Technologies 0555112 Full Port Brass Ball Valve 1 inch Sweat x Sweat

Product Description

The Watts Water Technologies Full Port Brass Ball Valve, MPN 0555112, is designed for reliable performance in plumbing applications. This full port valve has a nominal size of one inch and features a sweat x sweat connection. It is constructed from lead-free brass, making it suitable for handling water, oil, and gas media.

• Full port design for maximum flow.
• Temperature rating from negative forty to four hundred degrees Fahrenheit.
• Meets MSS-SP-110 standards.

Product Highlights

This valve offers a two-piece construction and is operated by a standard lever handle.

Product Information

Standard Information

• Brand: Watts Water Technologies
• MPN: 0555112

Technical Specifications

• Series: LFFBVS-3C
• Type: Full Port, Lead Free
• Nominal Size: 1 inch
• Connection Type: Sweat x Sweat
• Media: Water, Oil, and Gas
• Opening Size: 1 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Dimensions: C: 2-5/8 inch; H1: 4-1/4 inch; L1: 3-1/4 inch
• Temperature Rating: -40 to 400 Deg F
• Maximum Pressure: 600 psi CWP, 150 psi WSP
