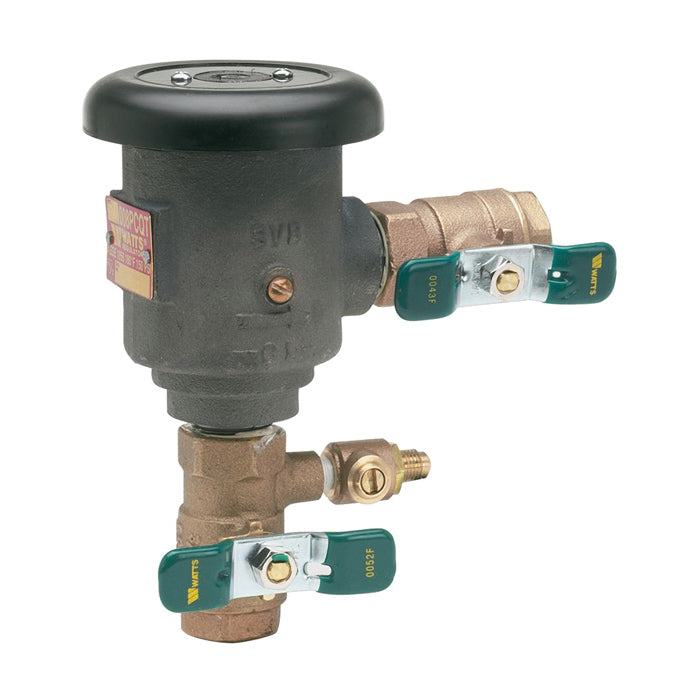

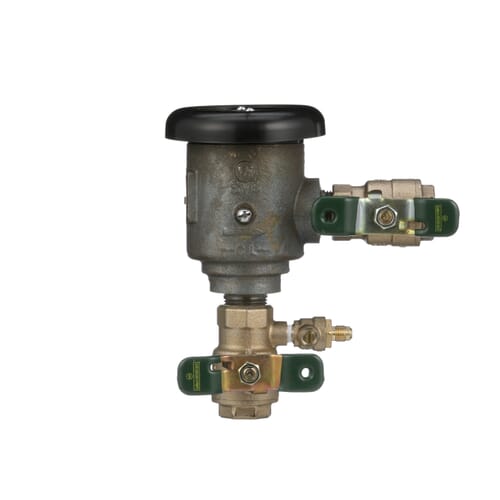

WATTS W-0792026 LF008PCQT Anti-Siphon Spill-Resistant Vacuum Breaker

Product Description

The WATTS W-0792026 LF008PCQT is a vacuum breaker designed to stop the reverse flow of contaminated water into clean water systems. This model is important for preventing backsiphonage in indoor settings. It is made of a lead-free cast copper silicon alloy, ensuring durability and safety in various applications. The product includes a thermoplastic check and float assembly valve, stainless steel springs, and a molded diaphragm that effectively isolates the air from the water supply, preventing spillage during operation.

• Features a diaphragm seal for protection against spillage.
• Includes a modular cartridge for convenient servicing.
• Compact design to optimize space usage.

Product Highlights

Product Information

Standard Information

• Country of Origin: Domestic
• UPC: 98268434095

Technical Specifications

• Maximum Working Pressure: 150 psi
• Minimum Working Pressure: 8 psi
• Body Material: Cast Copper Silicon Alloy
• Dimensions: 7.5 inches height
• End Style: FNPT
• Flow Rate: 7.5 fps
• Nominal Size: 1 inch
• Pressure Rating: 150 psi
• Series: 008PCQT
• Temperature Rating: 33 to 180 degrees F
• Type: Anti-Siphon Spill-Resistant
