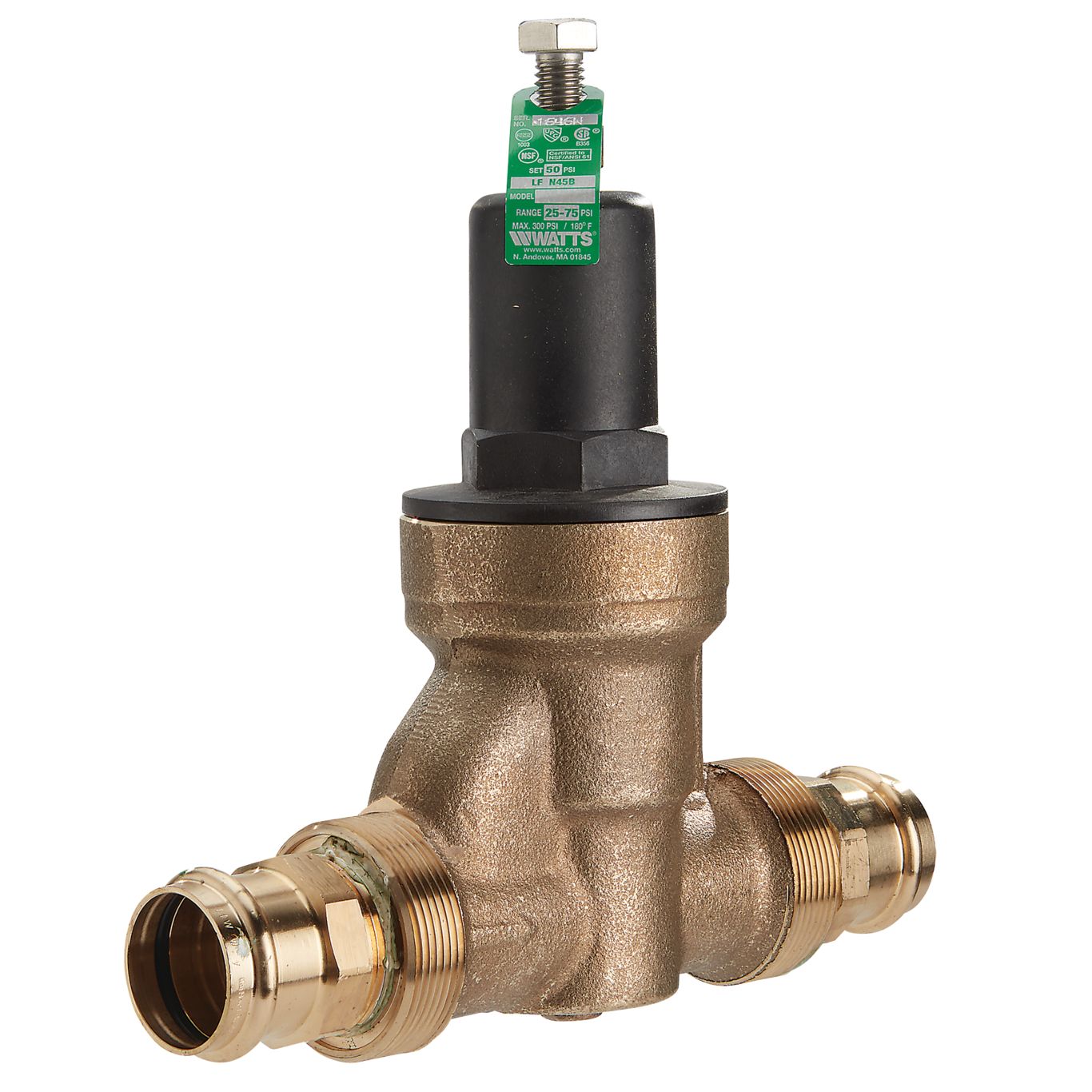

Watts W-0125580 Water Pressure Reducing Valve 1 1/4 Inch Press Connection

Product Description

The Watts W-0125580 water pressure reducing valve controls incoming water pressure in plumbing systems. The body is made from lead-free copper silicon alloy and features Viega ProPress connections. This valve includes an integral stainless steel strainer, a thermoplastic seat module, and a thermal expansion bypass. It is rated for water supply pressures up to three hundred pounds per square inch and adjustable from twenty-five to seventy-five pounds per square inch, with a standard setting of fifty pounds per square inch. This valve can be serviced without having to remove it from the line.

• Viega ProPress connections facilitate easy installation.
• Comes with an integral stainless steel strainer for effective filtration.
• Thermal expansion bypass included for enhanced functionality.

Product Highlights

This water pressure reducing valve is essential for maintaining optimal water pressure. Ideal for residential and commercial plumbing systems, it provides safe operation and reliable performance.

Product Information

Standard Information

• Brand: Watts
• MPN: W-0125580

Technical Specifications

• Series: LFN45B-L
• Inlet Size: 1 1/4 inches
• Outlet Size: 1 1/4 inches
• Inlet Connection Type: Press
• Outlet Connection Type: Press
• Adjustable Reduced Pressure Range: 25 to 75 psi
• Standard Reduced Pressure Setting: 50 psi
• Maximum Working Pressure: 300 psi
• Minimum Temperature: 0.5 degrees Celsius
• Maximum Operating Temperature: 180 degrees Fahrenheit
• Body Material: Cast Copper Silicon Alloy
• Disc Material: EPDM
• Strainer Material: Stainless Steel
• Thermal Expansion Bypass: Yes
• Lead Free: Yes
• Seat Material: Thermoplastic
• Diaphragm Material: Reinforced EPDM
