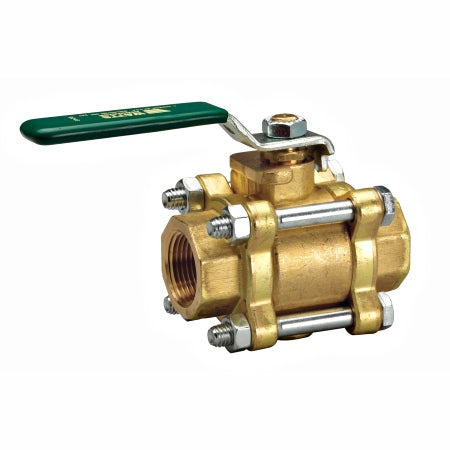

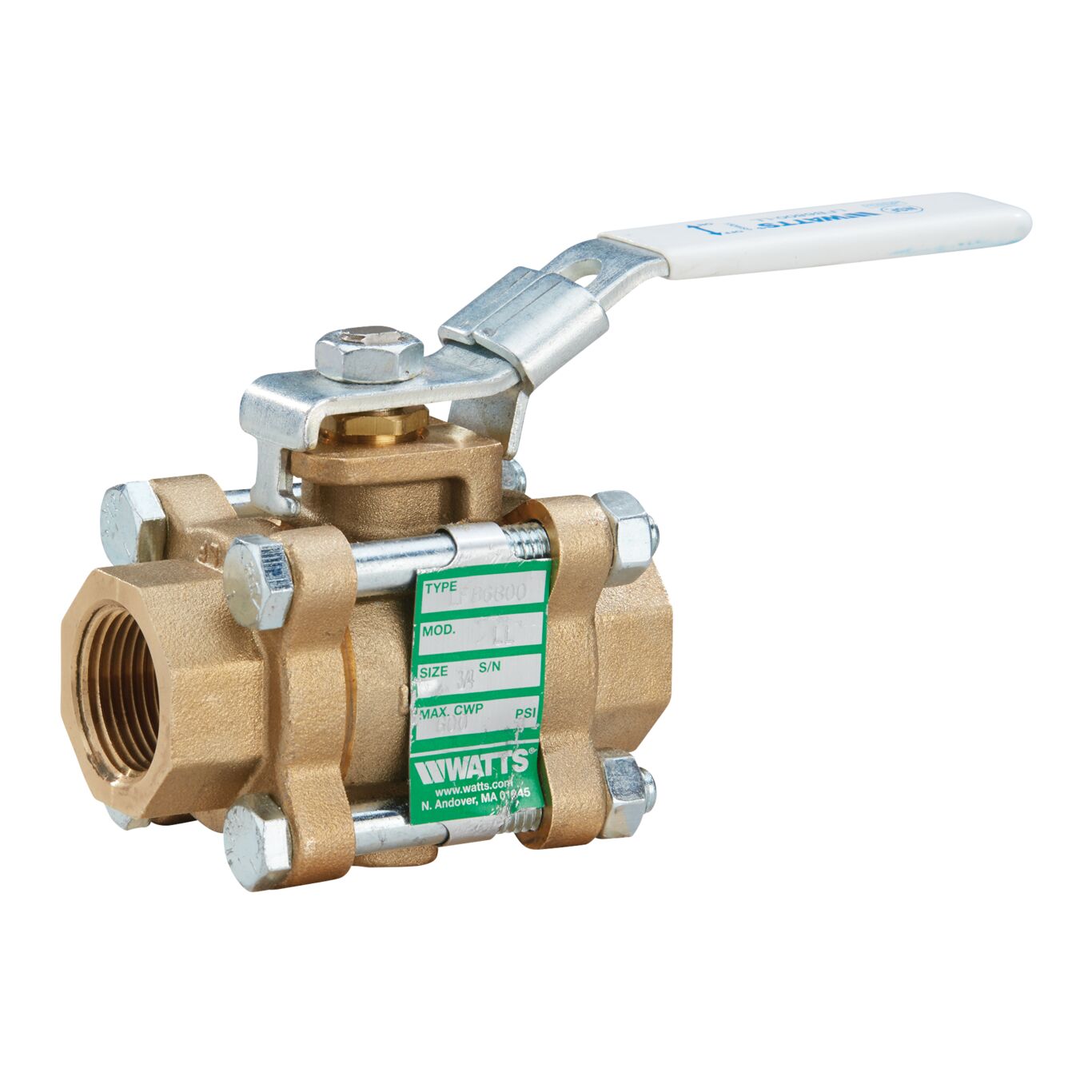

WATTS W-0123227 Lead Free Full Port Ball Valve 3/4 inches

Product Description

The WATTS W-0123227 LFB6800 is a three-piece, full port ball valve designed for commercial and industrial use. This lead-free valve features an in-line maintenance design which allows for serviceability without disrupting the pipeline. It has a full port orifice that facilitates maximum flow capacity and is built to handle high operating pressures and temperature limits safely.

• Designed for commercial and industrial applications.
• In-line maintenance design for easy serviceability.
• Compatible with threaded NPT and solder end connections.

Product Highlights

This valve supports safe operation in demanding environments, able to withstand pressures up to six hundred PSI and temperatures from zero to four hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Watts
• Warranty: 1 Year

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Brass
• Control Type: Tee Handle
• CV Rating: 30
• Inlet Connection Size: 3/4 IN
• Outlet Connection Size: 3/4 IN
• Lead Free: YES
• Maximum Temperature: 450°F
• WOG Rating: 600 PSI
• Valve Type: Ball Valve
• Valve Size: 3/4 in
