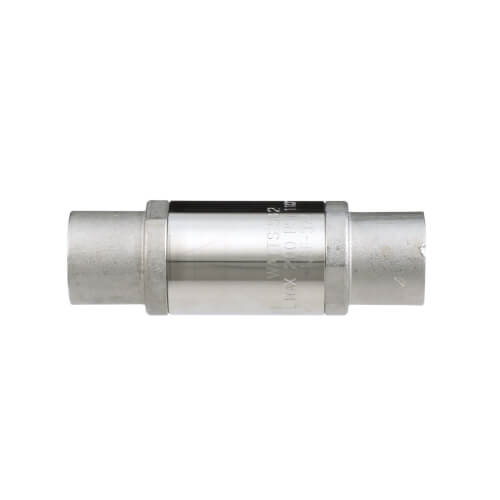

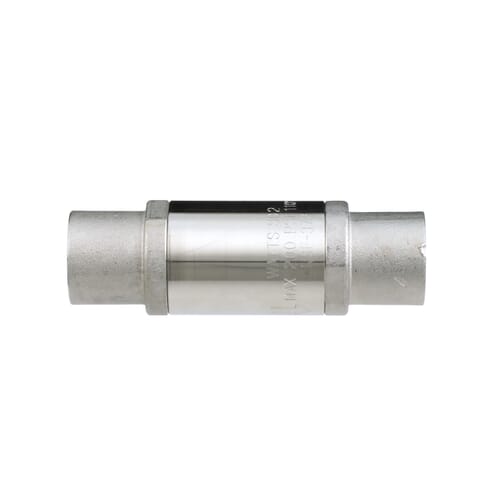

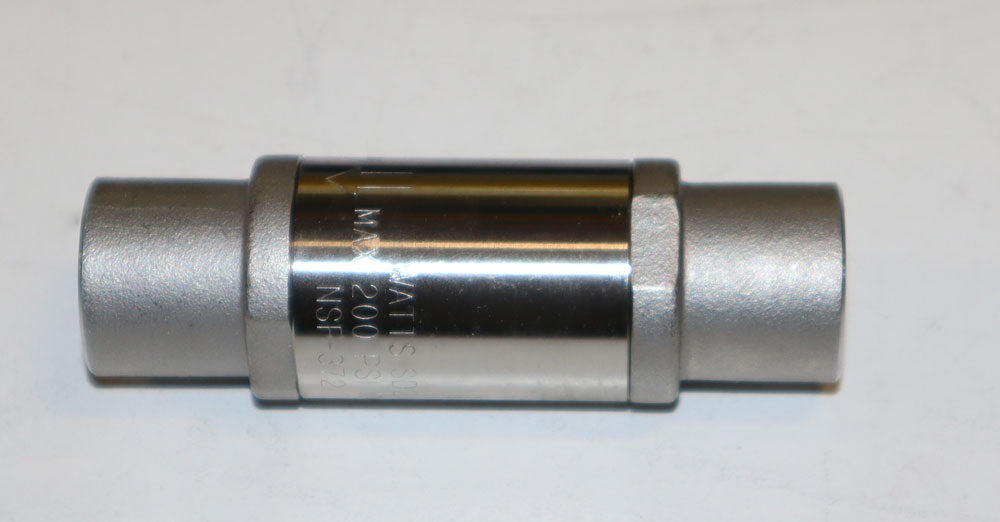

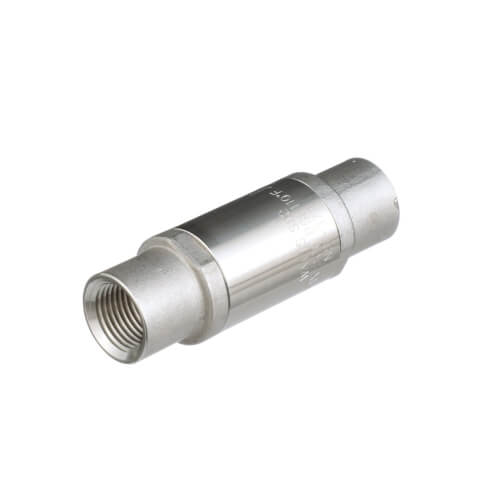

Watts W-0061663 Watts SD-2 Dual Check Valve

Product Description

The Watts SD-2 Dual Check Valve, MPN W-0061663, is designed to prevent the reverse flow of contaminated water into the potable water supply. This valve is crucial for applications that require backpressure prevention. It features a stainless steel body and rubber components to ensure durability and reliability. Ideal for use in post-mix carbonated beverage systems and coffee or tea dispensing setups.

• 3/8 inch female NPT end connections
• Stainless steel construction
• Maximum working pressure of 200 psi

Product Highlights

This dual check valve is effective in protecting water supplies from harmful backflow due to pressure changes.

Product Information

Standard Information

• Manufacturer Part Number: W-0061663
• Lead Free: Yes

Technical Specifications

• Backflow Preventer Type: Dual Check
• Inlet Connection Size: 3/8 inch
• Outlet Connection Size: 3/8 inch
• Inlet Connection Type: Female Threaded
• Outlet Connection Type: Female Threaded
• Body Material: Stainless Steel
• Disc Material: Santoprene
• Seat Material: Noryl
• Maximum Working Pressure: 200 psi
• Temperature Rating: 110°F
• Connection Method: Threaded
• Series: SD-2
• End Style: FNPT
• Nominal Size: 3/8 inch
