Watts W-0009836 LF263A Lead Free 3-Way Pressure Reducing Valve 1/2 Inch

Product Description

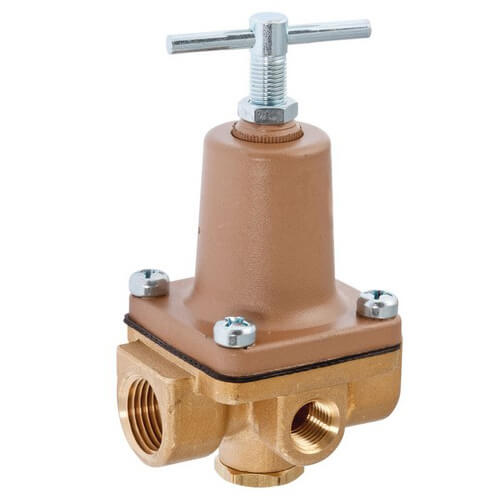

The Watts LF263A is a lead-free, 3-way pressure reducing valve. It is designed for general purpose applications using water and No. 2 fuel oil. This valve features a lead-free brass body with female NPT threaded connections. The valve includes a three-way low-pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and reinforced Buna-N diaphragm. It has an adjustable reduced pressure range of ten to one hundred twenty-five psi. The valve is suitable for various uses including beverage dispensing, paint spraying equipment, ice cube machines, humidifiers, and drinking fountains.

• Lead-free brass construction for safety
• Adjustable reduced pressure range of 10 to 125 psi
• Includes three-way low-pressure gauge port

Product Highlights

This valve provides reliable pressure regulation in a compact design for various applications.

Product Information

Standard Information

• Brand: Watts
• Model: LF263A

Technical Specifications

• MPN: W-0009836
• Inlet Connection Size: 1/2 inch
• Outlet Connection Size: 1/2 inch
• Inlet Connection Type: Female Threaded
• Outlet Connection Type: Female Threaded
• Maximum Working Pressure: 300 psi (21 bar)
• Maximum Operating Temperature: 140 Fahrenheit
• Minimum Temperature: 0 Fahrenheit (-18 Celsius)
• Body Material: Brass
• Disc Material: Buna-N
• Lead Free: Yes
• Valve Style: 3-way
