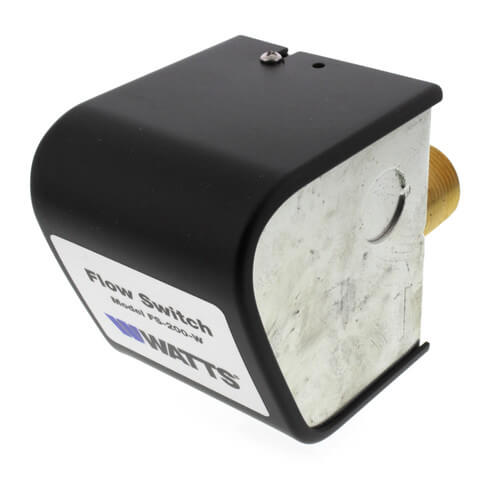

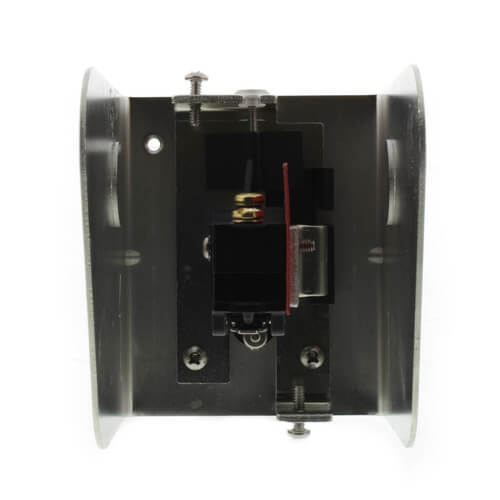

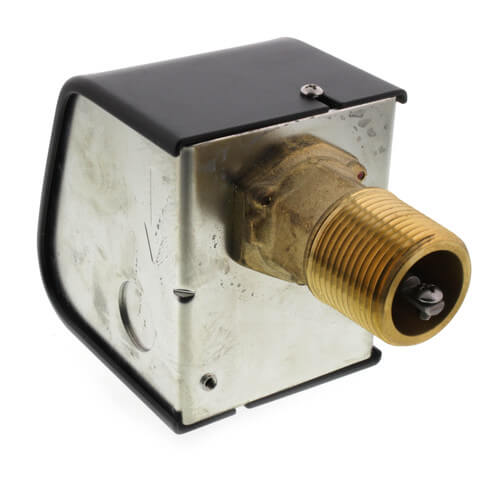

Watts W-00063067 Fs-200-W Paddle-Type Flow Switch 1 inches

Product Description

The WATTS W-00063067 FS-200-W Flow Switch starts or stops electrical equipment like burners, pumps, or alarms by detecting liquid flow. Designed for water media applications, it's unsuitable for hazardous or corrosive fluids or potable water systems. Features a NEMA 1 enclosure and is designed for general purpose use. Maximum pressure: 160psi (11 bar).

• Universal Design
• Suitable for 1" to 6" Pipe Diameters
• Adjustable Sensitivity

Product Highlights

The FS-200-W flow switch accurately monitors liquid flow in pipelines for water, heating, air conditioning, and industrial processing systems.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: W-00063067
• Country of Origin: United States

Technical Specifications

• Type: General Purpose
• Max Temp (F): 250°F
• Max Pressure (PSI): 160
• Material: Brass
• Finish: Zinc Plated Steel
• Size: 1"
• Connection Type: Threaded
• Buy American Act Compliant: NO
• Inlet Connection Size: 1 IN
• Inlet Connection Type: Male Threaded
• Maximum Temperature-Fahrenheit: 250
• Maximum Working Pressure-PSI: 160
• Part Number: 00063067
• Series: FS-200-W
• Brand: Watts
• MPN: 00063067
• UPC: Does not apply
• Country of Origin: Spojené státy americké
• Connection Size: 1 in NPT
• Temperature Rating: 250 deg F
