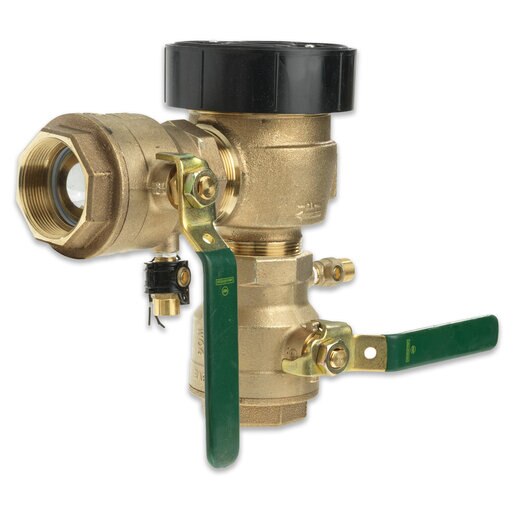

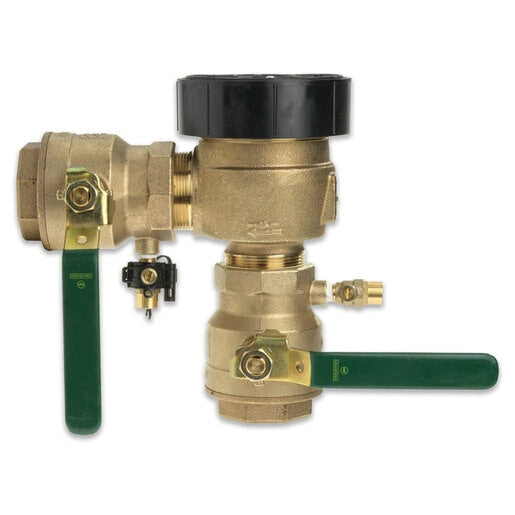

Watts T792015 vacuum breaker 2 in

Product Description

The WATTS T792015 2-inch lead-free anti-siphon pressure vacuum breaker prevents polluted water from flowing in reverse and entering the potable water supply due to backsiphonage. It features bronze body construction, a silicone rubber check valve disc, and stainless steel springs. It is ideal for irrigation and industrial process water systems.

• Lead-free construction
• Replaceable seat
• Easy internal access

Product Highlights

This vacuum breaker includes a freeze sensor for use with SentryPlus Alert technology. It has female NPT inlet and outlet with 1/4-turn shut-offs.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: T792015

Technical Specifications

• Connection Size: 2 in
• Connection Type: FNPT
• Disc Material: Silicone
• Finish: Cast Bronze
• Item Name: Vacuum Breaker with 1/4-Turn Ball Valve
• Material: Bronze
• Operator Type: Tee Handle
• Pressure Rating: 150 psi
• Seat Material: Engineered Plastic
• Series: LF800M4QT
• Temperature Rating: 33 - 140 deg F
• Backflow Preventer Type: Vacuum Breaker
• Body Finish: Cast Copper Silicon Alloy
• Body Material: Lead Free Copper Silicon Alloy
• Body Pattern: Angle
• Brand: Watts
• Buy American Act Compliant: YES
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: No
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 2 IN
• Inlet Connection Size-Metric: 50 MM
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 10.30
• Maximum Working Pressure-PSI: 150
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.50
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 2 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Part Number: T792015
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backsiphonage
• Technologies: Freeze Detection
