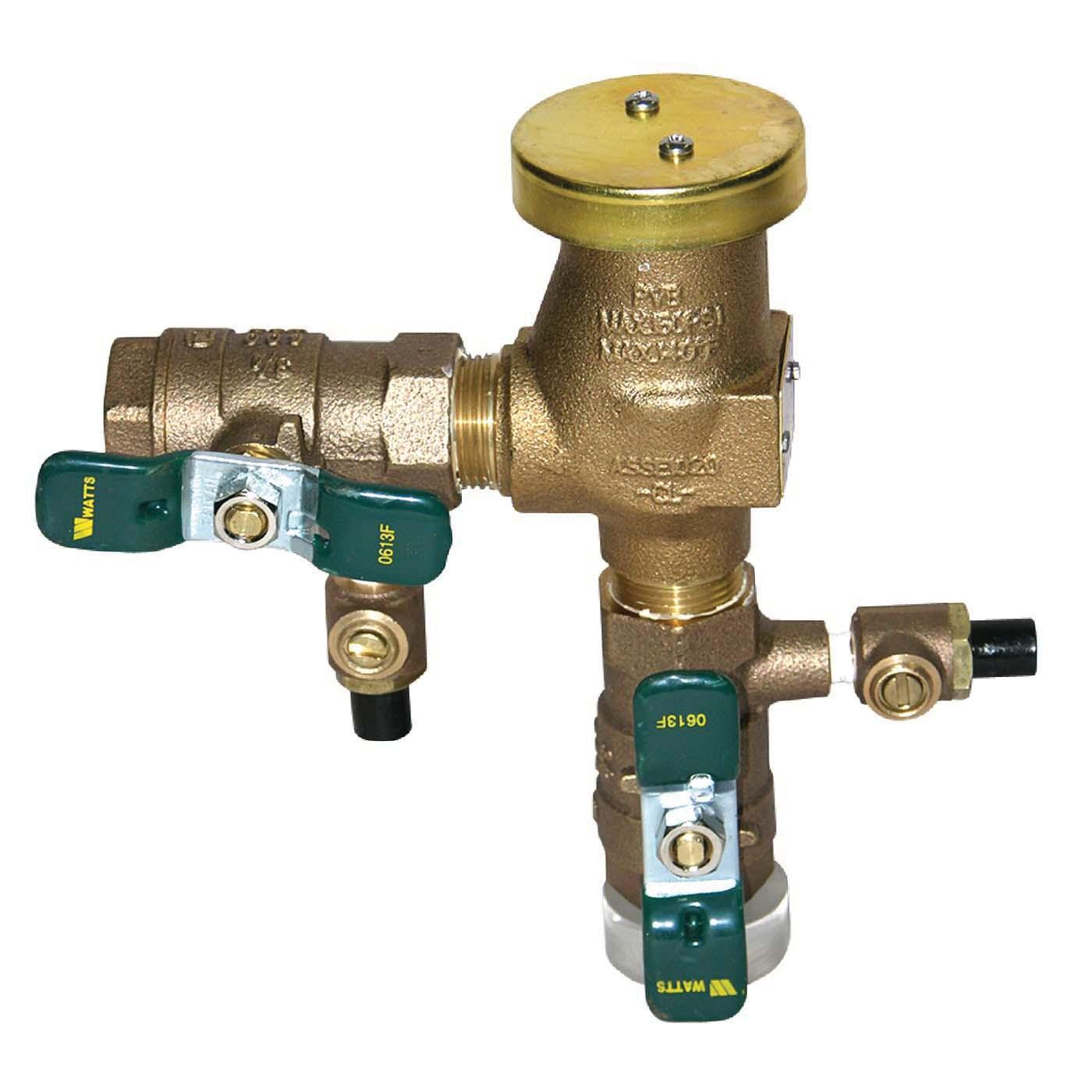

Watts T388001 3/4 in Bronze Anti-Siphon Pressure Vacuum Breaker Backflow Preventer T388001

Product Description

The WATTS T388001 3/4 inch anti-siphon pressure vacuum breaker backflow preventer helps prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It features bronze body construction, silicone rubber check valve disc and stainless steel springs. It is ideal for irrigation systems and industrial process water systems.

• Includes a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point
• Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
• Bronze body for durability

Product Highlights

This vacuum breaker has a 3/4" FNPT inlet and outlet size, and it features a durable bronze body, stainless steel springs, and silicone rubber discs.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: T388001
• Country of Origin: USA

Technical Specifications

• Backflow Preventer Type: Vacuum Breaker
• Body Finish: Cast Bronze
• Body Material: Bronze
• Body Pattern: Angle
• Brand: Watts
• Buy American Act Compliant: YES
• Bypass: No
• Bypass Size: Does Not Apply To Product
• Cap And Tether: No
• Disc Material: Silicone
• Elbow Fitting: No
• Hazard Protection Level: Health Hazard
• Hot And Harsh Water: No
• Hydrant Connection: No
• Inlet Connection Size: 3/4 IN
• Inlet Connection Size-Metric: 20 MM
• Inlet Connection Type: Female Threaded
• Inlet Shutoff Valve Type: Quarter Turn Ball Valve
• Inlet Thread Type: NPT
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-BAR: 10.30
• Maximum Working Pressure-PSI: 150
• Meter Type: No Meter
• Minimum Temperature - Celsius: 0.50
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Shutoff Valve Type: Quarter Turn Ball Valve
• Outlet Thread Type: NPT
• Part Number: T388001
• Polymer Coating: No
• Pressure Operation: Continuous
• Protection Type: Backsiphonage
• Seat Material: Engineered Plastic
• Series: 800M4QT
• Strainer: No
• Technologies: Freeze Detection
• Flow Rate: 7.5 fps
• Nominal Size: 3/4 in
• Temperature Range: 33 - 140 Degrees F
• Inlet / Outlet Size: 3/4 Inch
• Material: Bronze, Stainless Steel
• Maximum Pressure: 150 PSI
• Type: Vacuum Breakers
