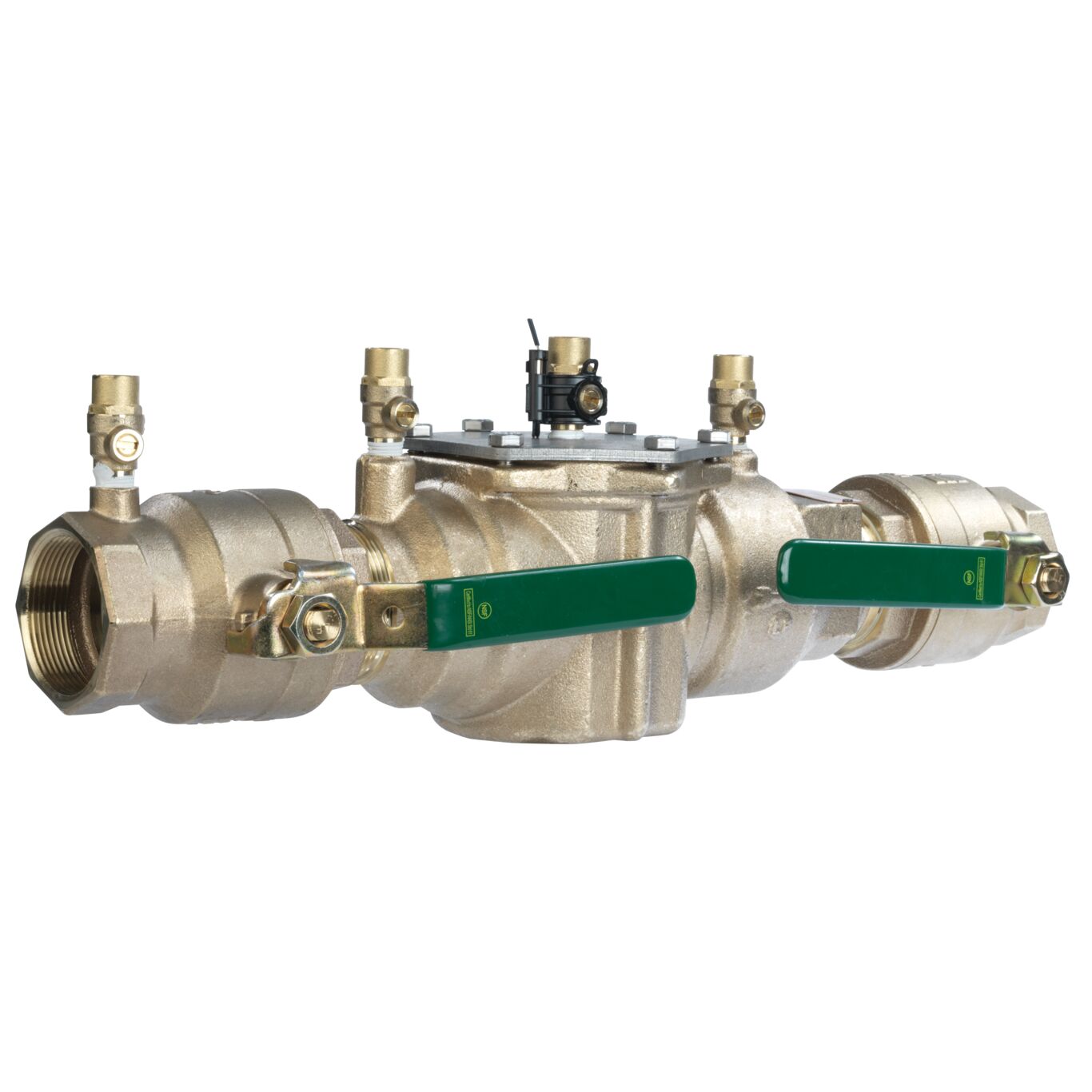

Watts T063235 2 LF007M1-QT-FZ Inline Backflow Preventer Assembly

Product Description

The Watts Regulator Company T063235 is a backflow preventer assembly designed to protect water supply lines. This model features a two-inch nominal size and NPT end style, capable of handling pressures up to 175 psi and temperatures ranging from thirty-three to one hundred eighty degrees Fahrenheit. The assembly includes a quarter-turn ball valve, dual check backflow, and is constructed from lead-free copper silicon alloy.

• Dual check backflow system
• Modular compact design
• Replaceable seats and seat discs

Product Highlights

Ideal for applications that require backflow protection in continuous pressure piping scenarios. This unit is suitable for non-health hazards and contaminants at service line entrances.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Part Number: T063235

Technical Specifications

• Backflow Type: Dual Check
• Ball Valve/Gate Valve Type: Quarter-Turn Ball Valve
• Body Material: Lead Free Copper Silicon Alloy
• End Style: NPT
• Media: Water
• Nominal Size: 2 inches
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 180 degrees Fahrenheit
• Type: Inline
